70186 (H 132) - Toro Rear-Engine Riding Mower (SN: 260732867 - 270805635) (2007) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

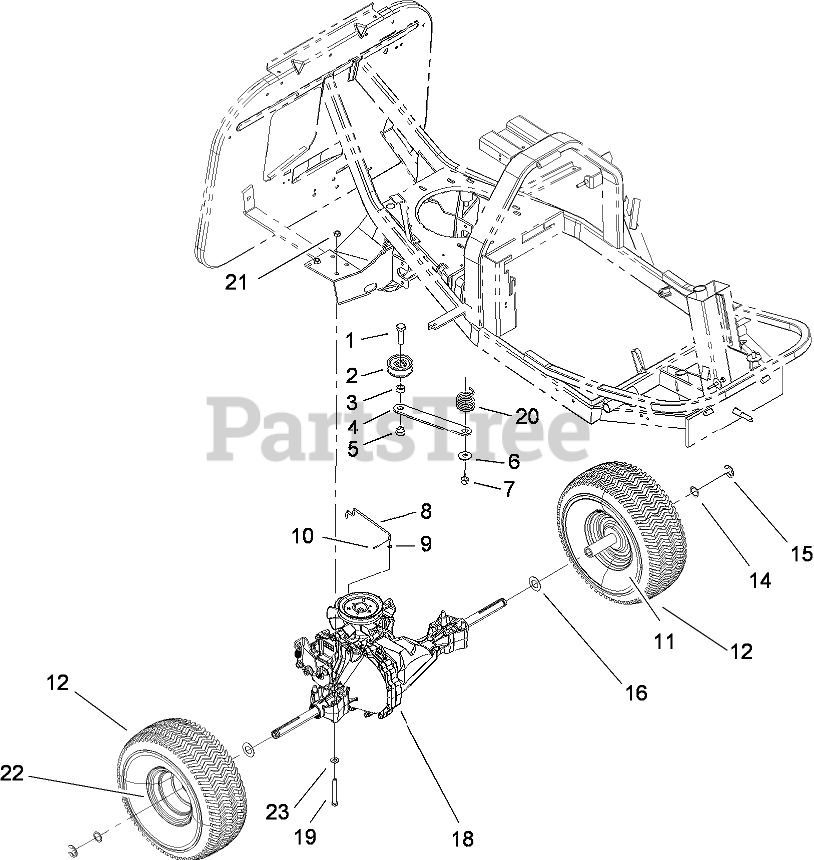

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 33116-040

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 114-3206

PULLEY

$

$

Currently unavailable

3

Toro 106-2984

Spacer-Idler

$

$

Currently unavailable

4

Toro 106-2934

Bracket

$

$

Not available

5

Toro 46-0090

NUT-LOCK

$

$

Not available

6

Toro 106-2921

Washer-Flat

$

$

Currently unavailable

7

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

8

Toro 114-3195

LEVER-RELEASE

$

$

Currently unavailable

9

Toro 106-2904

Washer-Flat

$

$

Not available

10

Toro 106-2996

Pin-Hair

$

$

Not available

11

Toro 114-3188

WHEEL-REAR, LEFT

$

$

Not available

12

$

$

Not available

14

Toro 114-3202

SPACER-OUTER
(Superseded to 106-2992)

$

$

Not available

15

Toro 106-2909

RING-RETAINING, EXT

$

$

Currently unavailable

16

Toro 114-3190

SPACER-INNER

$

$

Currently unavailable

18

Toro 114-3192

TRANSAXLE ASM

$

$

Not available

19

Toro 106-2891

Screw-HH

$

$

Currently unavailable

20

Toro 106-2995

Spring-Extension

$

$

Currently unavailable

21

Toro 46-0330

NUT-LOCK

$

$

Not available

22

Toro 114-3189

WHEEL-REAR, RIGHT

$

$

Not available

23

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0
