70185 (G 132) - Toro Rear-Engine Riding Mower (SN: 310000001 - 310999999) (2010) GEAR TRANSMISSION AND LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

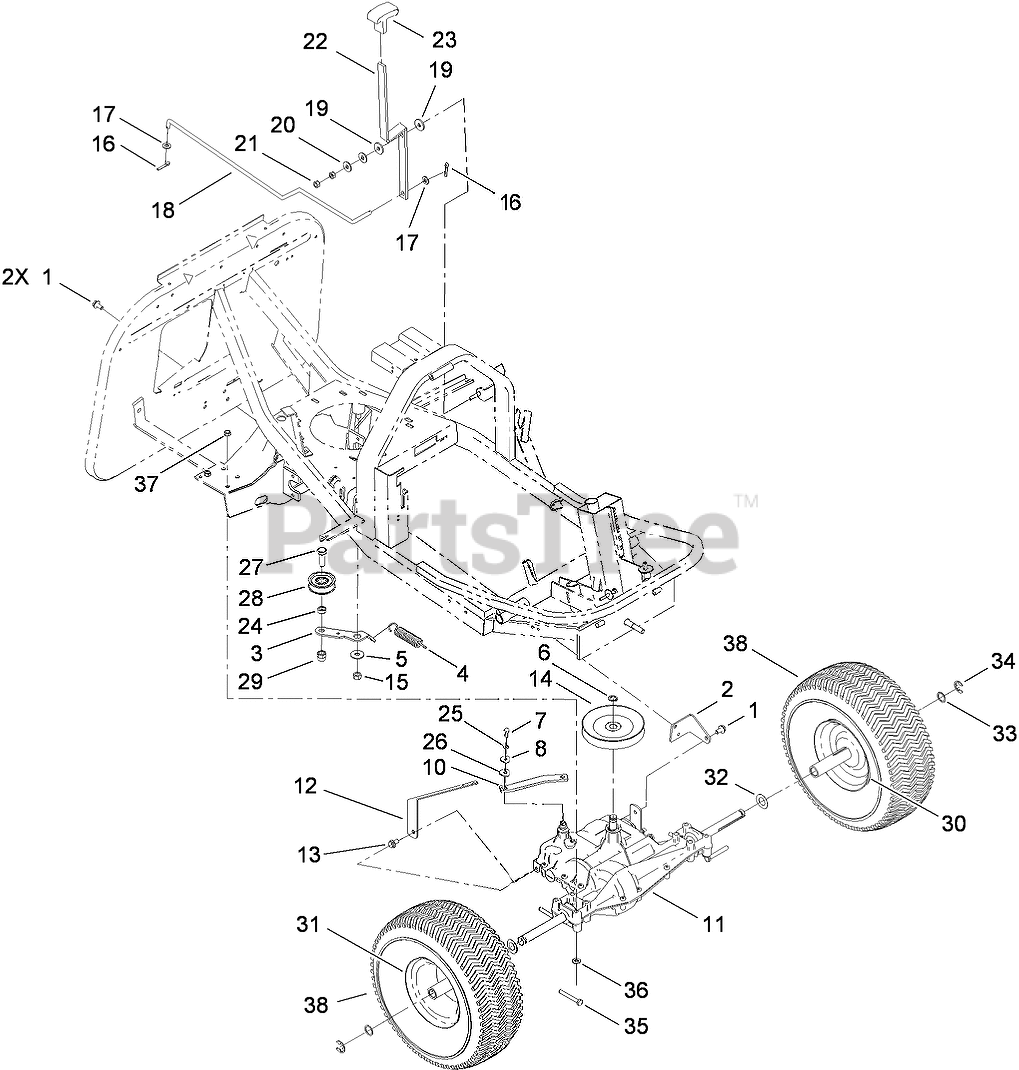

GEAR TRANSMISSION AND LINKAGE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-6516

SCREW-HHF TAP

$

$

Currently unavailable

2

Toro 106-2979

Bracket

$

$

Currently unavailable

3

Toro 106-2938

Bracket-Idler

$

$

Currently unavailable

4

Toro 106-2936

Spring-Extension

$

$

Currently unavailable

5

Toro 106-2921

Washer-Flat

$

$

Currently unavailable

6

Toro 106-2862

Ring-External

$

$

Currently unavailable

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 106-2853

Washer-Flat

$

$

Not available

10

Toro 106-2976

Bracket

$

$

Currently unavailable

11

Toro 110-8649

DIFFERENTIAL-GEAR

$

$

Currently unavailable

12

Toro 114-3123

PLATE-SWITCH, TRANSMISSION

$

$

Currently unavailable

13

Toro 106-6516

SCREW-HHF TAP

$

$

Currently unavailable

14

Toro 106-2932

Pulley

$

$

Currently unavailable

15

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

16

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

17

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

18

Toro 114-3122

LINK-TRANSMISSION, DANA

$

$

Currently unavailable

19

Toro 106-2975

Washer

$

$

Currently unavailable

20

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

21

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Toro 106-2935

Lever-Clutch

$

$

Currently unavailable

23

Toro 106-2967

Handle

$

$

Currently unavailable

24

Toro 106-2986

Spacer

$

$

Currently unavailable

25

Toro 106-6506

Washer-Lock/Sp

$

$

Currently unavailable

26

Toro 106-6514

Washer-Flat

$

$

Currently unavailable

27

Toro 33116-035

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

28

Toro 114-3206

PULLEY

$

$

Currently unavailable

29

Toro 46-0090

NUT-LOCK

$

$

Currently unavailable

30

Toro 114-3200

WHEEL-REAR LEFT

$

$

Currently unavailable

31

Toro 114-3201

WHEEL-REAR RIGHT

$

$

Currently unavailable

32

Toro 114-3190

SPACER-INNER

$

$

Currently unavailable

33

Toro 114-3202

SPACER-OUTER
(Superseded to 106-2992)

$

$

Not available

34

Toro 106-2909

RING-RETAINING, EXT

$

$

Currently unavailable

35

Toro 33114-060

SCREW-HH

$1.49

$

In Stock, Qty 6

0

36

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

37

Toro 46-0330

NUT-LOCK

$

$

Not available

38

$

$

Currently unavailable
