70185 (G 132) - Toro Rear-Engine Riding Mower (SN: 280899565 - 290999999) (2009) BODY AND DECAL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

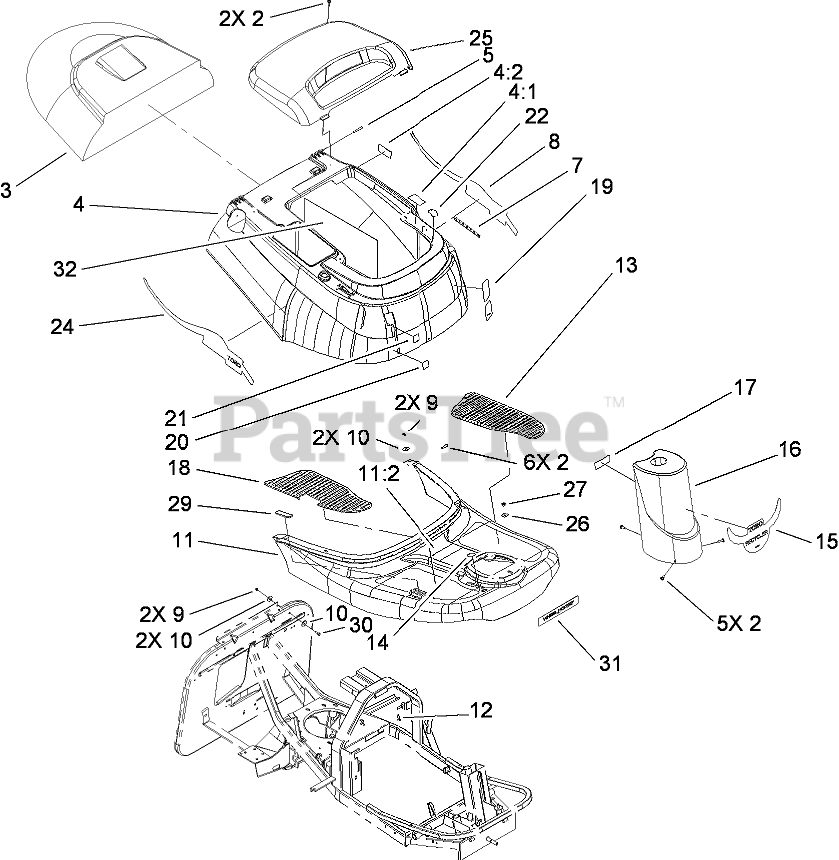

BODY AND DECAL ASSEMBLY Parts Diagram

  • Title

2

Toro 106-2851

Screw-HH, TAP

$

$

Currently unavailable

3

Toro 106-1810

COVER-GRASS BAG

$

$

Currently unavailable

4

Toro 106-2885

Shroud And Decal ASM

$

$

Not available

4:1

Decal-Danger

Note: Not serviced separately

$

$

Not available

4:2

Decal-Warning, Hot

Note: Not serviced separately

$

$

Not available

5

Toro 106-2870

Pin-Dowel

$

$

Currently unavailable

7

Decal-Shift

Note: Not serviced separately

$

$

Not available

8

Toro 107-8978

DECAL

$

$

Currently unavailable

9

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 106-2853

Washer-Flat

$

$

Not available

11

Toro 106-2901

FOOT REST AND DECAL ASM

$

$

Currently unavailable

11:2

Decal-Caution

Note: Not serviced separately

$

$

Not available

12

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

13

Toro 106-2973

Floormat-LH

$

$

Currently unavailable

14

DECAL-CLUTCH, INTL RER

Note: Not serviced separately

$

$

Not available

15

Toro 106-6517

DECAL-FRONT

$

$

Not available

16

Toro 106-2906

Steering-Turret

$

$

Currently unavailable

17

Decal-Run Lights

Note: Not serviced separately

$

$

Not available

18

Toro 106-2972

Floormat-RH

$

$

Currently unavailable

19

Decal-HOC

Note: Not serviced separately

$

$

Not available

20

Decal-PTO, Disengage

Note: Not serviced separately

$

$

Not available

21

Decal-PTO, Engage

Note: Not serviced separately

$

$

Not available

22

Decal-Switch

Note: Not serviced separately

$

$

Not available

24

Toro 107-8979

DECAL

$

$

Currently unavailable

25

Toro 106-2860

Cover-Engine

$

$

Currently unavailable

26

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

27

Toro 46-0330

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

29

Toro 106-2987

Cover

$

$

Currently unavailable

30

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 106-6525

DECAL

$

$

Not available

32

Toro 107-2228

INSULATION

$

$

Not available

99

Toro 106-2887

DECAL KIT

Note: Not illustrated

$

$

Not available
