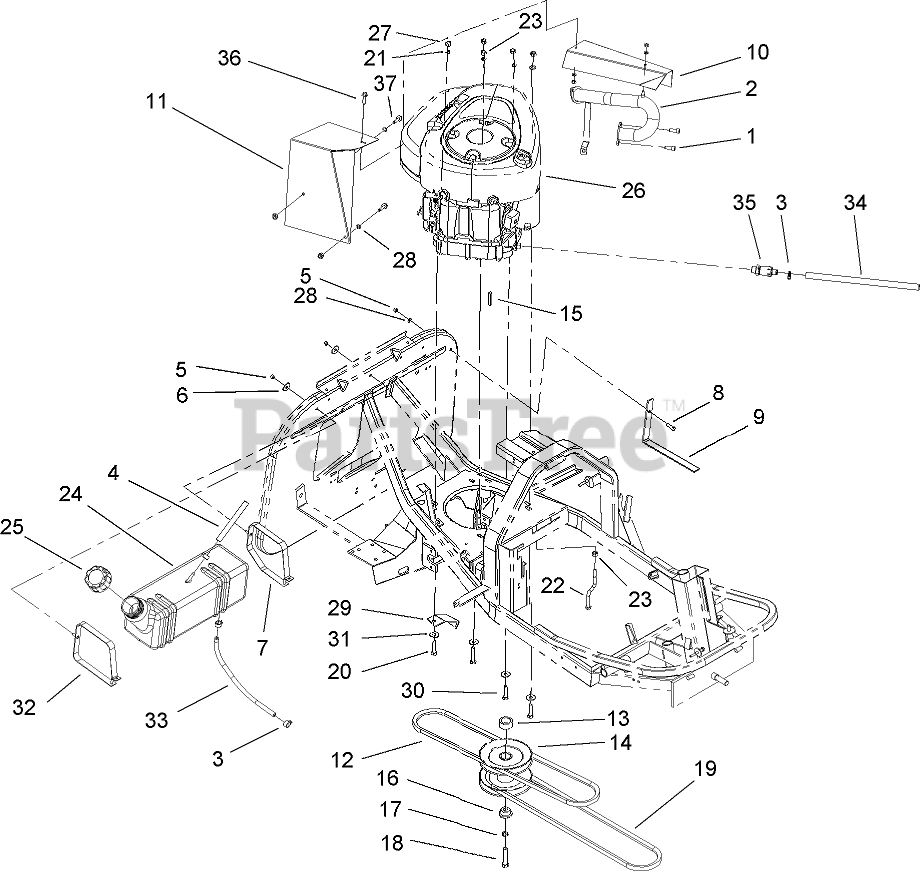

70185 (G 132) - Toro Rear-Engine Riding Mower (SN: 270000001 - 270805705) (2007) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

2

Toro 107-2233

PIPE-EXHAUST

$

$

Not available

3

Toro 107-2210

CLAMP-TUBE

$

$

Currently unavailable

4

Toro 106-2990

Hose-Fuel

$

$

Currently unavailable

5

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 106-2853

Washer-Flat

$

$

Not available

7

Toro 106-6541

STRAP-FUEL TANK, LEFT

$

$

Not available

8

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

9

Toro 106-1828

Guard-Muffler

$

$

Currently unavailable

10

Toro 107-2235

SHIELD-PIPE, EXHAUST

$

$

Not available

11

Toro 107-2234

SHIELD-MUFFLER, REAR

$

$

Not available

12

$

$

Currently unavailable

13

Toro 106-1836

Spacer

$

$

Currently unavailable

14

Toro 106-2915

PULLEY

$

$

Currently unavailable

15

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

16

Toro 106-1837

Spacer

$

$

Not available

17

Toro 106-2856

Washer-Lock

$

$

Not available

18

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

19

Toro 106-1826

BELT-DECK

$

$

Currently unavailable

20

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

21

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

22

Toro 106-2974

Guide-Belt

$

$

Currently unavailable

23

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

24

Toro 106-6537

TANK-FUEL

$

$

Not available

25

Toro 55-3576

GAS CAP ASM

$28.99

$

Usually ships in 3-6 days

0

26

ENGINE-Briggs and Stratton, 31G777-0121-E1

Note: Not serviced separately

$

$

Not available

26

ENGINE-Briggs and Stratton, 31G777-0121-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

27

Toro 46-0330

NUT-LOCK

$

$

Not available

28

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 107-2239

BRACKET, DRIVE BELT

$

$

Currently unavailable

30

Toro 33114-045

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

31

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

32

Toro 106-6540

STRAP-FUEL TANK, RIGHT

$

$

Not available

33

Toro 107-1555

Hose-Fuel

$

$

Currently unavailable

34

Toro 107-2241

TUBE-DRAIN, OIL

$

$

Currently unavailable

35

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

36

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

37

Toro 33103-030

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0
