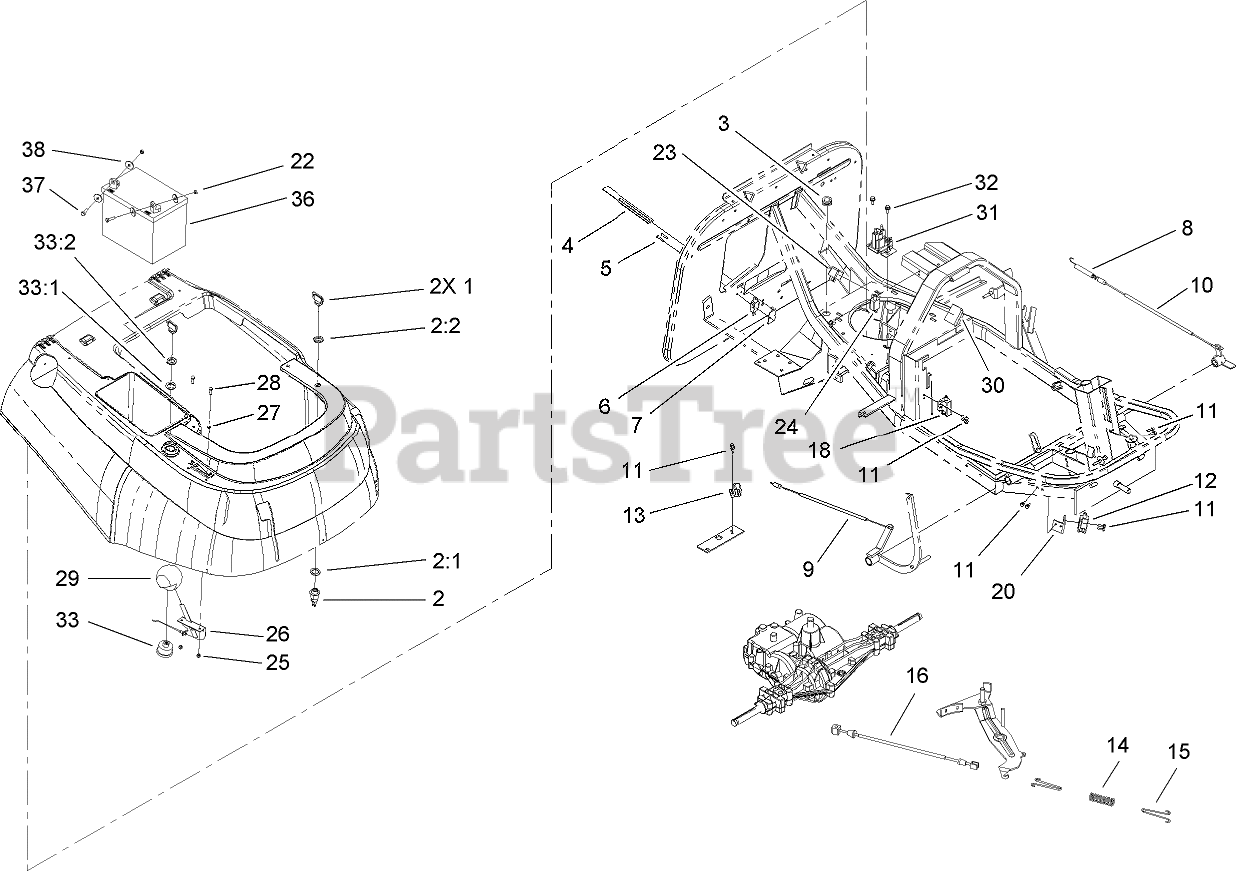

70185 (G 132) - Toro Rear-Engine Riding Mower (SN: 270000001 - 270805705) (2007) ELECTRICAL COMPONENT AND CABLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL COMPONENT AND CABLE ASSEMBLY Parts Diagram

  • Title

1

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

3

Toro 106-2863

Grommet

$

$

Currently unavailable

4

Toro 106-1831

Lever-Bag Fill

$

$

Currently unavailable

5

Toro 106-2850

Screw

$

$

Currently unavailable

6

Toro 106-1843

Switch

$

$

Currently unavailable

7

Toro 106-1827

Clamp-Bag Fill

$

$

Currently unavailable

8

Toro 106-2981

Spring-Extension

$

$

Currently unavailable

9

Toro 106-2983

Cable

$

$

Currently unavailable

10

Toro 106-2982

Cable

$

$

Currently unavailable

11

Toro 106-1849

SCREW-HH, TAP

$

$

Currently unavailable

12

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 20+

0

13

Toro 106-2998

Switch

$

$

Currently unavailable

14

Toro 106-2917

Spring-Compression

$

$

Currently unavailable

15

Toro 106-2918

Hook-Spring

$

$

Currently unavailable

16

Toro 106-2956

Cable

$

$

Currently unavailable

18

Toro 86-4690

SWITCH-INTERLOCK
(Superseded to 1-633111)

$20.99

$

In Stock, Qty 20+

0

20

Toro 106-1816

Bracket-Switch

$

$

Currently unavailable

22

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

23

Toro 98-7249

RELAY

$22.99

$

In Stock, only 2 left!

0

24

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 20+

0

25

Toro 46-0410

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

26

Toro 106-2916

Throttle Cable ASM

$

$

Currently unavailable

27

Toro 52-6430

WASHER

$0.99

$

In Stock, Qty 5

0

28

Toro 60-6910

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

29

Toro 106-2989

Knob

$

$

Currently unavailable

30

Toro 99-3700

MODULE

$127.99

$

In Stock, only 2 left!

0

31

Toro 47-1910

SOLENOID
(Superseded to 740207)

$34.99

$

In Stock, Qty 6

0

32

Toro 106-2852

SCREW-HHF, TAP

$

$

Currently unavailable

33

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 12

0

33:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

33:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

36

Toro 104-1755

BATTERY-155 CCA
(Superseded to 105-1692)

$

$

Not available

37

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

38

Toro 106-2853

Washer-Flat

$

$

Not available

99

Toro 108-8715

HARNESS-WIRING

Note: Not illustrated

$

$

Not available
