70185 (G 132) - Toro Rear-Engine Riding Mower (SN: 260000001 - 260999999) (2006) CASE ASSEMBLY PEERLESS NO. MST-542D Parts Diagram

Rear-Engine Riding Mower

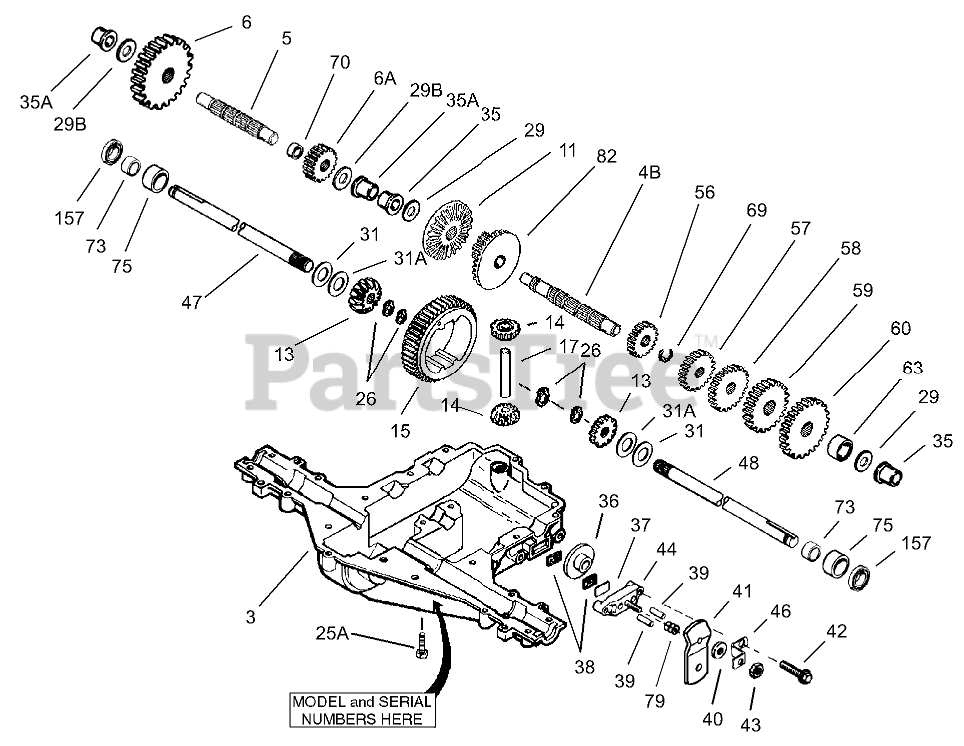

CASE ASSEMBLY PEERLESS NO. MST-542D Parts Diagram

  • Title

3

Toro 770128

Transaxle Case

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

4B

Toro 776406

Countershaft

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

5

Toro 776409

Output Shaft

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

6

Toro 778364

Spur Gear (38 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

6A

Toro 778369

Spur Gear (15 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

11

Toro 778334

Bevel Gear (30 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

13

Toro 778368

Bevel Gear (13 teeth)(Incl. 14)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

14

Toro 778368

Bevel Pinion (13 teeth)(Incl. 13)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

15

Toro 778370

Ring Gear (43 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

17

Toro 786188

Drive Pin

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

25A

Toro 792177

Screw 1/4-20 x 1-3/8"

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

29

Toro 780072

Washer

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

29B

Toro 780051

Washer

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

31

Toro 780001

Washer

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

31A

Toro 780195

Flat Washer (.062 wide)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

35

Toro 780193

Flanged Bushing

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

35A

Toro 780197

Flanged Bushing

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

36

Toro 790075

Brake Disk

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

38

Toro 799021

Pad-Brake 2/Pkg

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

40

Toro 792076A

Washer

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

41

Toro 790008A

Lever-Brake

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

42

Toro 792073A

Screw

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

43

Toro 792075

Locknut

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

46

Toro 786086

Bracket

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

47

Toro 775000

Axle (11-3/8" long)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

48

Toro 774687

Axle (15-7/8" long)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

56

Toro 778335

Spur Gear (10 teeth-steel)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

57

Toro 778337

Spur Gear (13 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

58

Toro 778341

Spur Gear (18 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

59

Toro 778351

Spur Gear (21 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

60

Toro 778345

Spur Gear (25 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

63

Toro 786071

Spacer

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

69

Toro 792170

Retaining Ring

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

70

Toro 786187

Spacer .890

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

73

Toro 780140

Bearing Needle

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

75

Toro 786084

Sleeve

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

79

Toro 792144

Piston ASM (.020 O S)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

82

Toro 778363

Bevel and Spur Gear (30 and 13 teeth)

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable

157

Toro 788088A

Oil Seal 3/4"

Note: Obtain parts from local Peerless dealer.

$

$

Currently unavailable
