70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) REAR WHEEL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

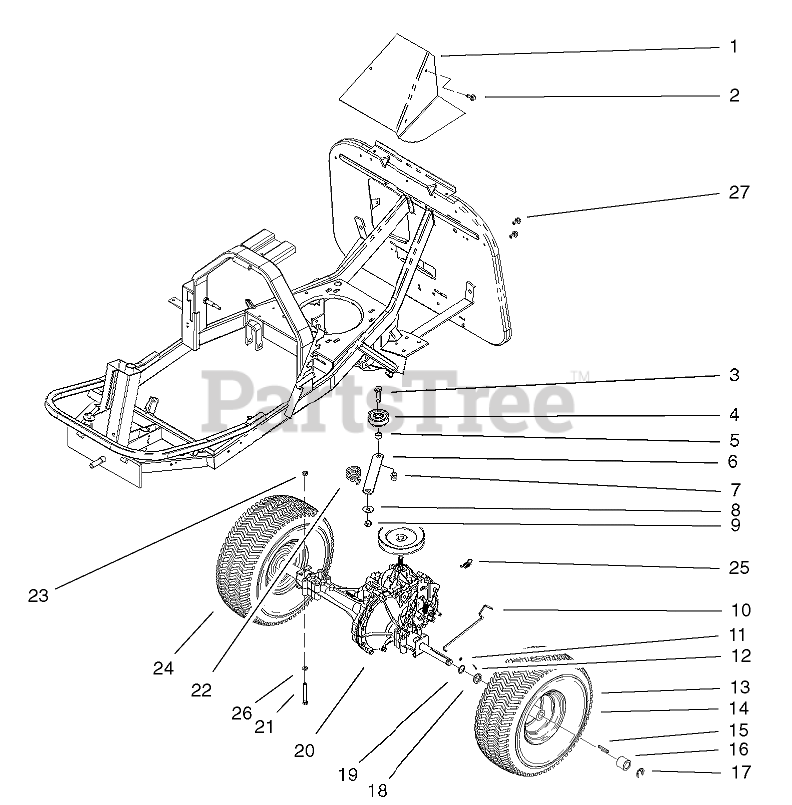

REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 106-2946

SHIELD-HEAT, TRANS.

$

$

Currently unavailable

2

Toro 106-2997

SCREW-HHF

$

$

Currently unavailable

3

Toro 33116-040

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

4

Toro 106-2877

PULLEY ASM

$

$

Not available

5

Toro 106-2984

Spacer-Idler

$

$

Currently unavailable

6

Toro 106-2934

Bracket

$

$

Not available

7

Toro 46-0090

NUT-LOCK

$

$

Not available

8

Toro 106-2921

Washer-Flat

$

$

Currently unavailable

9

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

10

$

$

Not available

11

Toro 106-2904

Washer-Flat

$

$

Not available

12

Toro 106-2996

Pin-Hair

$

$

Not available

13

Toro 106-2948

WHEEL-LH

$

$

Currently unavailable

14

$

$

Not available

15

Toro 106-2994

Key-Square

$

$

Currently unavailable

16

Toro 106-2949

Spacer

$

$

Not available

17

Toro 106-2909

RING-RETAINING, EXT

$

$

Currently unavailable

18

Toro 106-2993

Spacer

$

$

Not available

19

Toro 106-2992

Washer-Flat

$

$

Not available

20

Toro 106-1840

TRANSAXLE-HYDRO

$4253.99

$

Usually ships in 3-6 days

0

21

Toro 106-2891

Screw-HH

$

$

Currently unavailable

22

Toro 106-2995

Spring-Extension

$

$

Currently unavailable

23

Toro 46-0330

NUT-LOCK

$

$

Not available

24

Toro 106-2947

WHEEL-RH

$

$

Currently unavailable

25

Toro 106-2988

Spring-Extension

$

$

Not available

26

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

27

Toro 106-6516

SCREW-HHF TAP

$

$

Currently unavailable
