70184 (13-32 H) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

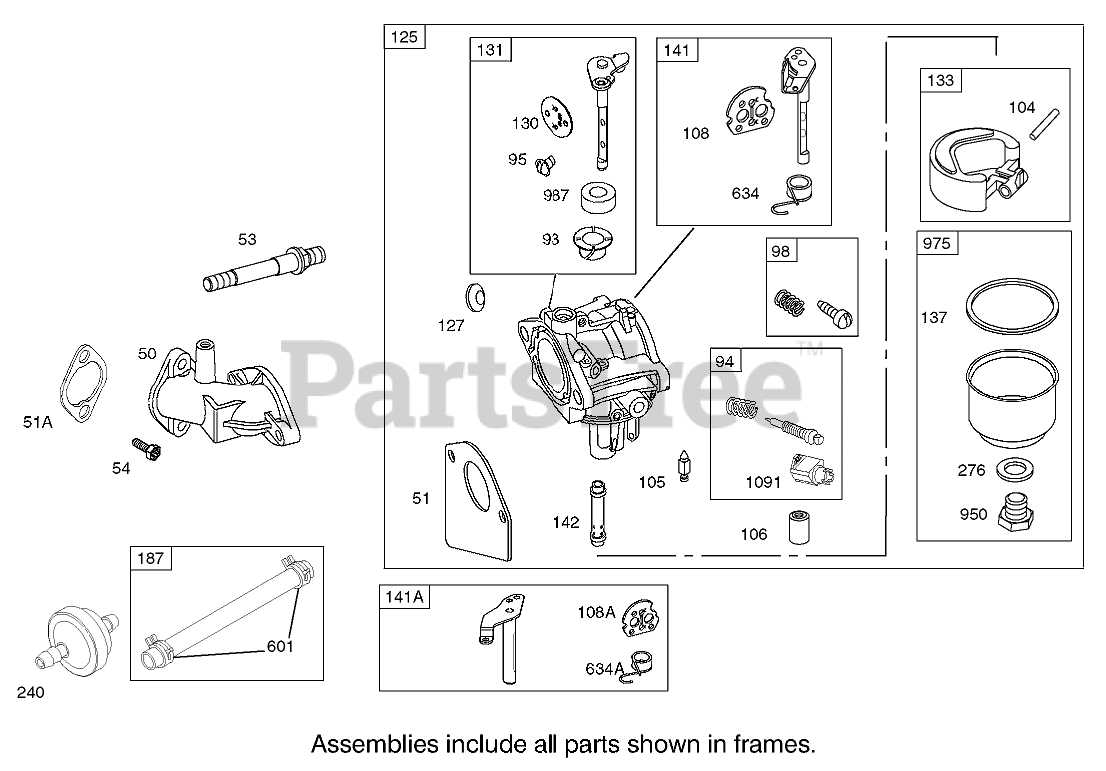

CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

  • Title

50

Briggs & Stratton 691711

Intake Manifold

$

$

Not available

51

Briggs & Stratton 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 692284

Intake Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 691098

Stud (Carburetor)
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

54

Briggs & Stratton 690953

Screw (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Idle Mixture Kit
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Idle Speed Kit

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, Qty 6

0

108

Briggs & Stratton 692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 690467

Valve-Choke (Choke A Matic)

$5.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 697594

Carburetor
(Superseded to 698171)

$219.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 495097

Choke Shaft Kit
(Superseded to 790905)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697592

Carburetor Nozzle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$29.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$5.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 691657

Screw

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!
