70183 (13-32) - Toro Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) PEERLESS TRANSAXLE MODEL NO. 915-019 Parts Diagram

Rear-Engine Riding Mower

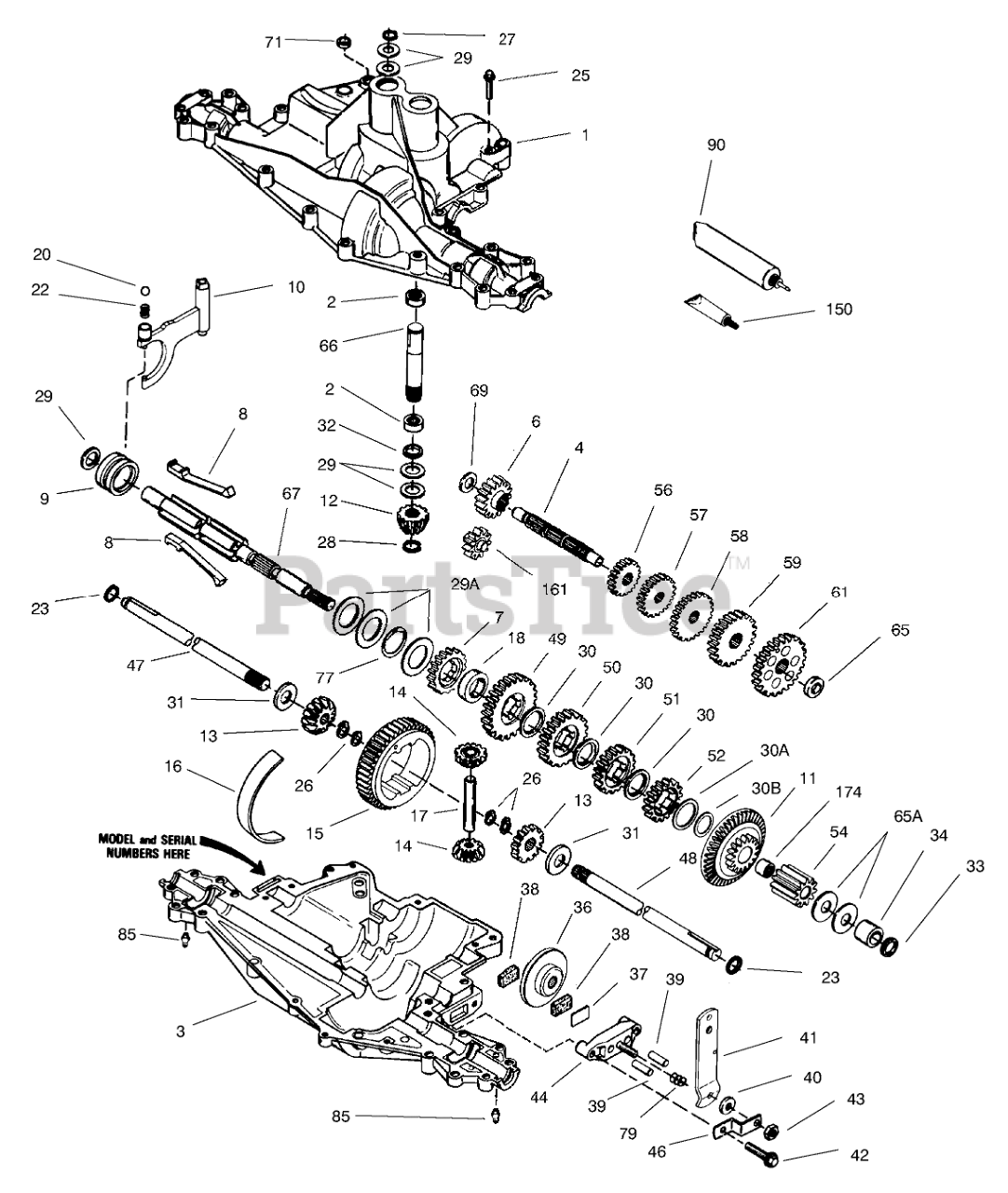

PEERLESS TRANSAXLE MODEL NO. 915-019 Parts Diagram

  • Title

1

Transaxle Cover

$

$

Not available

2

Needle Bearing

$

$

Not available

3

Transaxle Case

$

$

Not available

4

Countershaft

$

$

Not available

6

Spur Gear (16 Teeth)

$

$

Not available

7

Spur Gear (22 Teeth)

$

$

Not available

8

Shift Key

$

$

Not available

9

Shift Collar

$

$

Not available

10

Shift Rod & Fork

$

$

Not available

11

Bevel Gear & Bearing (44/16 Teeth)(Incl. Ref. #174)

$

$

Not available

12

Bevel Pinion (14 Teeth)

$

$

Not available

13

Bevel Gear (16 Teeth)

$

$

Not available

14

Differential Pinion

$

$

Not available

15

Ring Gear

$

$

Not available

16

Bearing Strip

$

$

Not available

17

Drive Pin

$

$

Not available

18

Neutral Spacer

$

$

Not available

20

Ball (3/8" dia.)

$

$

Not available

23

Seal Ring

$

$

Not available

26

Retaining Ring (pkg. of 2)

$

$

Not available

27

RING-Retaining

$

$

Not available

28

RING-Retaining

$

$

Not available

29

Washer

$

$

Not available

30

Washer

$

$

Not available

30A

Washer

$

$

Not available

30B

Washer

$

$

Not available

31

Washer

$

$

Not available

36

Brake Disk

$

$

Not available

37

Brake Pad Plate

$

$

Not available

38

Brake Pad

$

$

Not available

39

Dowel Pin

$

$

Not available

40

Washer

$

$

Not available

41

Brake Lever

$

$

Not available

43

Locknut

$

$

Not available

44

Brake Pad Holder

$

$

Not available

46

Brake Lever Bracket

$

$

Not available

47

Axle (16-3/4" lg.)

$

$

Not available

48

Axle (11-9/16" lg.)(Incl. Ref. #26)

$

$

Not available

49

Spur Gear (30 Teeth)

$

$

Not available

50

Spur Gear (25 Teeth)

$

$

Not available

51

Spur Gear (22 Teeth)

$

$

Not available

52

Spur Gear (19 Teeth)

$

$

Not available

54

Spur Gear (11 Teeth)

$

$

Not available

56

Spur Gear (20 Teeth)

$

$

Not available

57

Spur Gear (25 Teeth)

$

$

Not available

58

Spur Gear (28 Teeth)

$

$

Not available

59

Spur Gear (30 Teeth)

$

$

Not available

61

Spur Gear (34 Teeth)

$

$

Not available

65

Washer

$

$

Not available

65A

Washer

$

$

Not available

66

Input Shaft (3.522" lg.)

$

$

Not available

67

Shifter & Brake Shaft

$

$

Not available

71

Square Cut Ring

$

$

Not available

77

Inverted Retaining Ring (pkg. of 2)

$

$

Not available

90

Grease (32 oz. btl. Bentonite grease)

$

$

Not available

150

Gasket Eliminator (Loctite #515)

$

$

Not available

161

Reverse Idler Assembly

$

$

Not available

174

Needle Bearing

$

$

Not available
