70183 (13-32) - Toro Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) MOWER ASSEMBLY - RECYCLER Parts Diagram

Rear-Engine Riding Mower

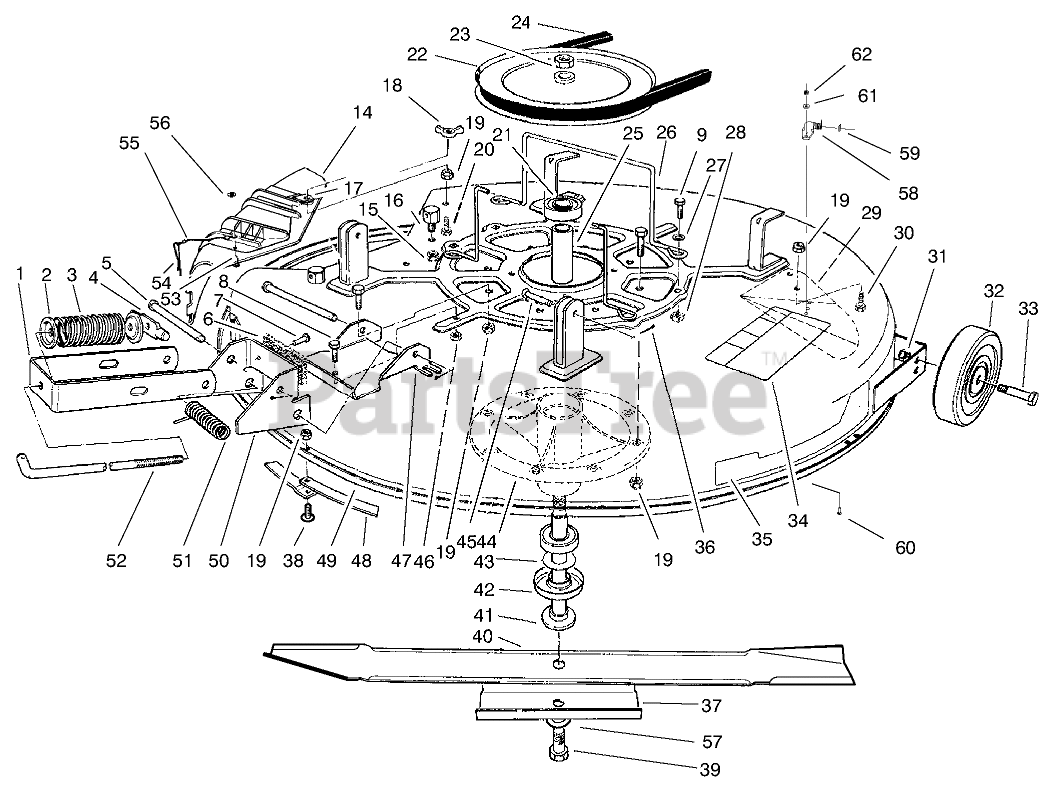

MOWER ASSEMBLY - RECYCLER Parts Diagram

  • Title
1

Toro 47-1180

Bracket-Engagement
(Superseded to 47-1180-01)

$

$

Not available

2

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

3

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

4

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

5

Toro 80-2570

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

6

Toro 80-2550

PAD-BRAKE

$69.99

$

Usually ships in 3-6 days

0

7

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 82-6150

Assy.-Cover, Discharge (Incl. Ref. #53-56)
(Superseded to 82-6151)

$121.99

$

In Stock, only 2 left!

0

15

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

16

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

17

Toro 83-7010

Brace-Cover, Rear
(Superseded to 83-7010-03)

$27.99

$

Usually ships in 3-6 days

0

18

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

22

Toro 80-4470

PULLEY

$

$

Not available

23

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

24

Toro 92-0875

V-BELT, DECK

$91.99

$

In Stock, only 2 left!

0

25

Toro 83-7020

SPACER-BEARING

$28.99

$

In Stock, only 1 left!

0

26

Toro 60-9730

GUIDE-BELT

$

$

Not available

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

29

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$33.99

$

In Stock, only 4 left!

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

31

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Toro 61-9760

WHEEL-DECK

$50.99

$

In Stock, only 2 left!

0

33

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

34

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

35

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.49

$

In Stock, Qty 20+

0

36

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

37

Toro 80-4570

STIFFENER
(Superseded to 80-4570-03)

$28.99

$

In Stock, only 1 left!

0

38

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

39

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

40

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, only 1 left!

0

41

Toro 80-4350

SHAFT-SPINDLE

$85.99

$

In Stock, only 4 left!

0

42

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

43

Toro 80-4390

SPACER-HARDNED

$4.49

$

Usually ships in 3-6 days

0

44

Toro 56-7030

SPINDLE

$

$

Not available

45

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

46

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

47

Toro 80-2560

Plate-Deck, Brake Mtg.
(Superseded to 80-2560-01)

$77.99

$

Usually ships in 3-6 days

0

48

Toro 80-4490

RING-DECK
(Superseded to 80-4490-03)

$19.99

$

Usually ships in 3-6 days

0

49

Toro 14-9999

Deck-Cutting, Recycler (Incl. Ref. #34)(Serial No 6900001-7900999)
(Superseded to 95-7498)

$

$

Not available

49

Toro 95-7850

Deck Assembly (Incl. Ref. #34)(Serial No. 7901000 & Up)

$

$

Not available

50

Toro 80-2530

Assembly-Brake (Incl. Ref. #6-7)

$

$

Not available

51

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

52

Toro 80-2580

ROD-ENGAGEMENT

$41.99

$

Usually ships in 3-6 days

0

53

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

54

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

55

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

56

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

57

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

58

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

59

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

60

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

61

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
