7016 RT (1695923) - Simplicity Tiller, 9hp Handle Bar Group Parts Diagram

Tiller, 9hp

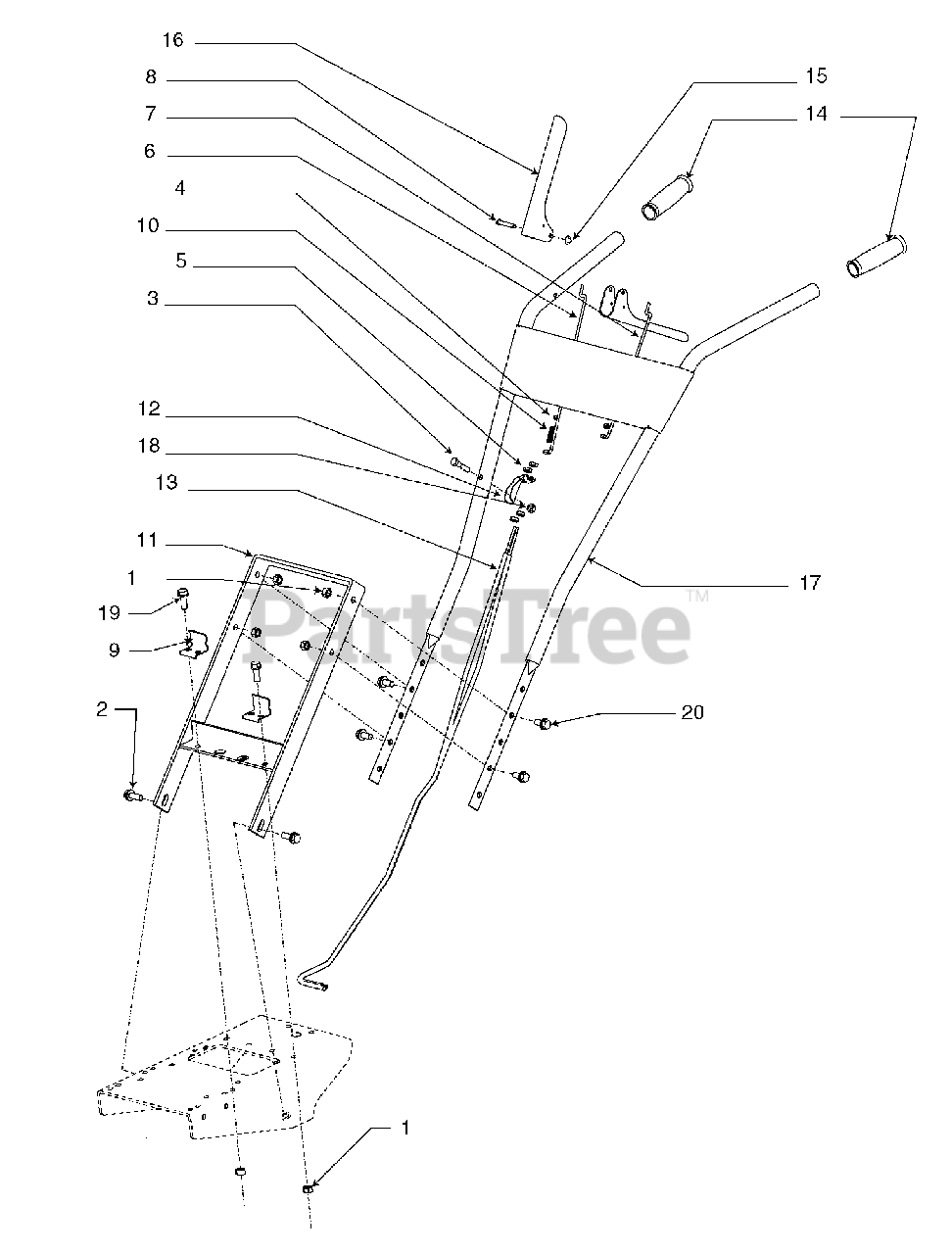

Handle Bar Group Parts Diagram

  • Title
1

Simplicity 7091585

NUT, Hex, Locking, Two-Way, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 1931350

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

3

Simplicity 1919326

BOLT, Hex-Head, 5/16-18 x 1
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1933896

NUT, Hex, Ny-Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 2820438

NUT, Hex-Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 1738630

LINK, 11-5/8
(Superseded to 1738630YP)

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 1738631

LINK, 9-1/2
(Superseded to 1738631YP)

$24.99

$

Usually ships in 2-12 days

0

8

Simplicity 1738763

PIN, Clevis, 1/4 x 1-1/2
(Superseded to 1738763YP)

$6.99

$

Usually ships in 2-12 days

0

9

Simplicity 1738639

CLIP, Belt-Guard
(Superseded to 1738639YP)

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 1738712

SPRING, Compression, Forward Arm
(Superseded to 1738712YP)

$

$

Not available

11

Simplicity 1738648

MOUNT, Handlebar Assembly
(Superseded to 1738648YP)

$170.99

$

Usually ships in 2-12 days

0

12

Simplicity 1738649

BRACKET, Cable Mount
(Superseded to 1738649YP)

$28.99

$

Usually ships in 2-12 days

0

13

Simplicity 1719037

CABLE, Rear Tine, 39" Sheath
(Superseded to 1719037SM)

$67.99

$

In Stock, only 1 left!

0

14

Simplicity 1719038

GRIP, Handlebar, Flangeless, 1"
(Superseded to 1719038SM)

$13.99

$

In Stock, only 1 left!

0

15

Simplicity 725624

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1738663

LEVER, Control, Rear Tine
(Superseded to 1738663YP)

$56.99

$

Usually ships in 2-12 days

0

17

Simplicity 1738664

HANDLEBAR ASSEMBLY
(Superseded to 1738664YP)

$289.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923362

NUT, Bi-Way Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

19

Simplicity 1934654

BOLT, Serrated Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 7091588

BOLT, Serrated Flange, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0
