7016 RT (1694162) - Simplicity Tiller, 7hp Wheel & Tiller Shaft Group Parts Diagram

Tiller, 7hp

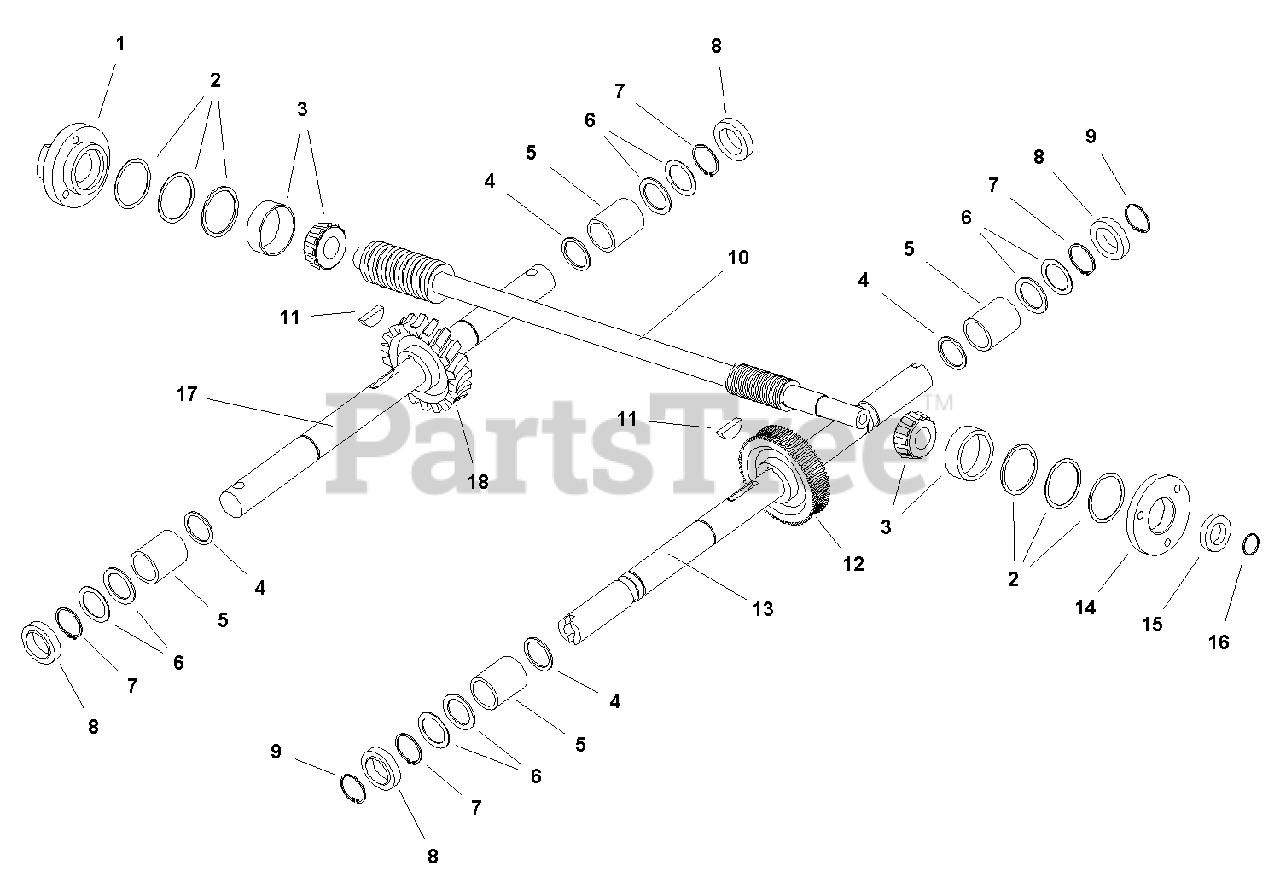

Wheel & Tiller Shaft Group Parts Diagram

  • Title

1

Simplicity 1716793SM

CAP, Rear Bearing

$35.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716825SM

SHIM SET, Rear Bearing Cap
(Superseded to 1739268YP)

$49.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716826SM

SHIM, 0.062 THK 1-3/4 OD 1806 (As Required)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716827SM

SHIM, 0.030 THK 1-3/4 OD 1807 (As Required)

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716828SM

SHIM, 0.015 THK 1-3/4 OD 1808 (As Required)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716829SM

SHIM, 0.010 THK 1-3/4 OD 1809 (As Required)

$5.49

$

In Stock, only 3 left!

0

3

Simplicity 1716810SM

BEARING, Tapered (Cone & Race)

$56.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716824SM

SPACER, 1" ID x 11/4" OD

$5.49

$

Usually ships in 2-12 days

0

5

Simplicity 1716816SM

BUSHING

$

$

Not available

6

Simplicity 1716815SM

SHIM SET, Axle Spacer
(Superseded to 1739268YP)

$49.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716817SM

SHIM, 0.062 THK 1-3/8" x OD 1705 (As Required)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1716818SM

SHIM, 0.030 THK 1-3/8" x OD 1706 (As Required)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1716819SM

SHIM, 0.015 THK 1-3/8" x OD 1707 (As Required)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716820SM

SHIM, 0.010 THK 1-3/8" x OD 1708 (As Required)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1716830SM

RING, Snap, Internal Retainer

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1716791SM

SEAL, Housing

$52.99

$

In Stock, only 2 left!

0

9

Simplicity 1716821SM

RING, Snap, External Retainer

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 1722333SM

DRIVE SHAFT, Main

$302.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716813SM

KEY, Parrallel Plan 1/4" x 1/4" x 1"

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 1716814SM

GEAR, Worm, Wheel Shaft

$176.99

$

Usually ships in 2-12 days

0

13

Snapper 1716812SM

SHAFT ASSEMBLY, Wheel w/Lock Pin

$55.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716796SM

CAP, Rear Bearing

$21.99

$

Usually ships in 2-12 days

0

15

Simplicity 1716797SM

SEAL, Oil, Drive Shaft

$19.99

$

Usually ships in 2-12 days

0

16

Simplicity 2860164SM

WASHER, 5/8"

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1716811SM

SHAFT ASSEMBLY, Wheel w/Lock Pin

$102.99

$

Usually ships in 2-12 days

0

18

Simplicity 1716823SM

GEAR, Worm Shaft

$222.99

$

Usually ships in 2-12 days

0
