7016 RT (1694162) - Simplicity Tiller, 7hp Hood, Drag Stake & Tine Group Parts Diagram

Tiller, 7hp

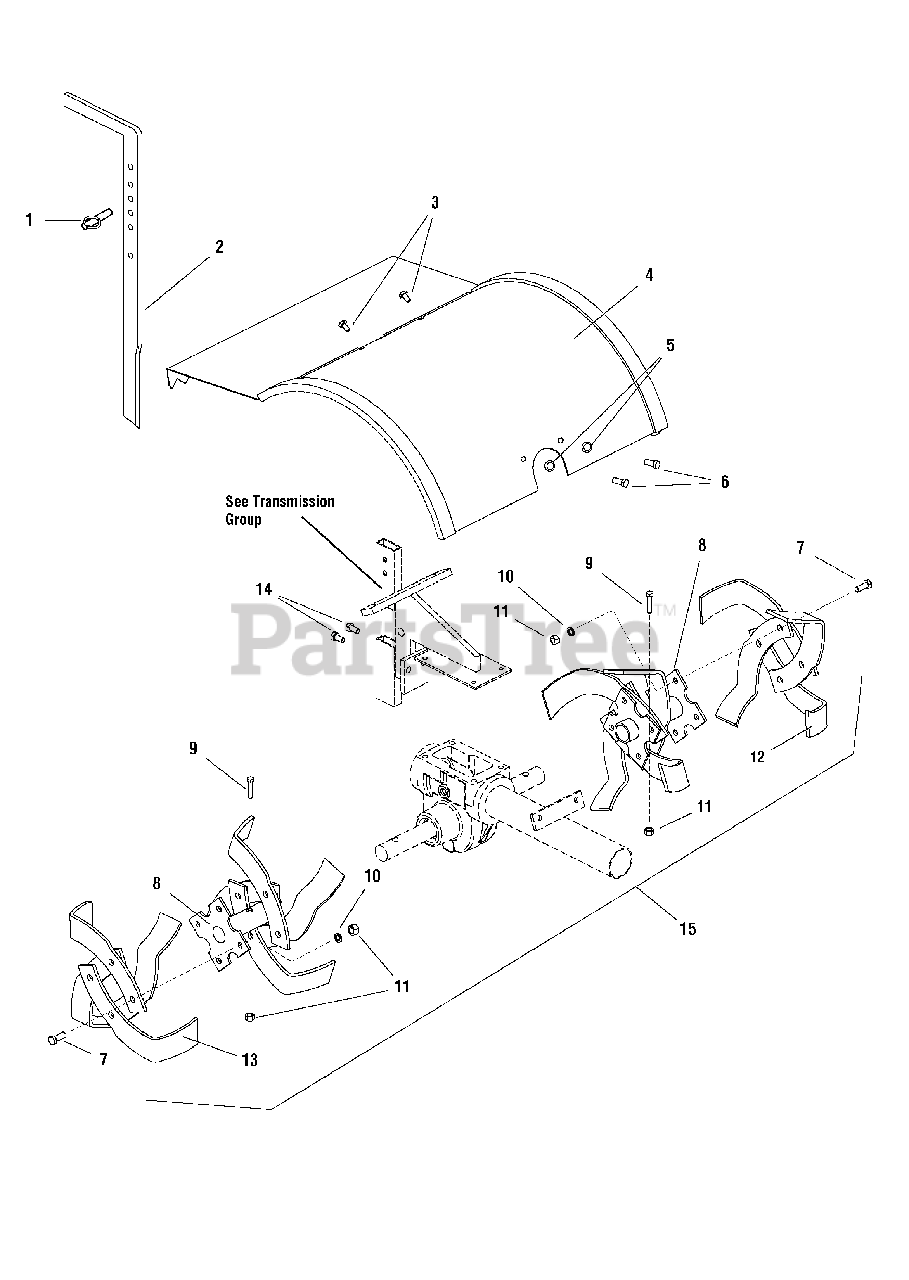

Hood, Drag Stake & Tine Group Parts Diagram

  • Title

1

Simplicity 1723703SM

PIN, DETENT 5/16

$22.99

$

Usually ships in 2-12 days

0

2

Snapper 1723705SM

LEVER, Depth Regulator

$

$

Not available

3

Simplicity 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1722329SM

HOOD, Tiller, No Decal
(Superseded to 1721512SM)

$201.99

$

Usually ships in 2-12 days

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1920787SM

CAPSCREW, Hex Head, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1716741SM

HOLDER, Tine Blade Left and Right

$66.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

11

Simplicity 1930645SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1716739SM

TINE BLADE, Left Side

$38.99

$

In Stock, Qty 7

0

13

Simplicity 1716737SM

TINE BLADE, Right Side

$24.99

$

In Stock, Qty 7

0

14

Simplicity 1716701SM

BOLT, Hex Flange Head, 5/16-18 x 1/2

$

$

Not available

15

Simplicity 1716749SM

REPLACEMENT KIT, Tine Blade Holder & Tines

Note: (Includes Reference Nos. 7, 8, 9, 10, 11, 12, and 13)

$244.99

$

Usually ships in 2-12 days

0
