7016 H (1690202) - Simplicity Garden Tractor, 16hp Lift Lever & Cable Group Parts Diagram

Garden Tractor, 16hp

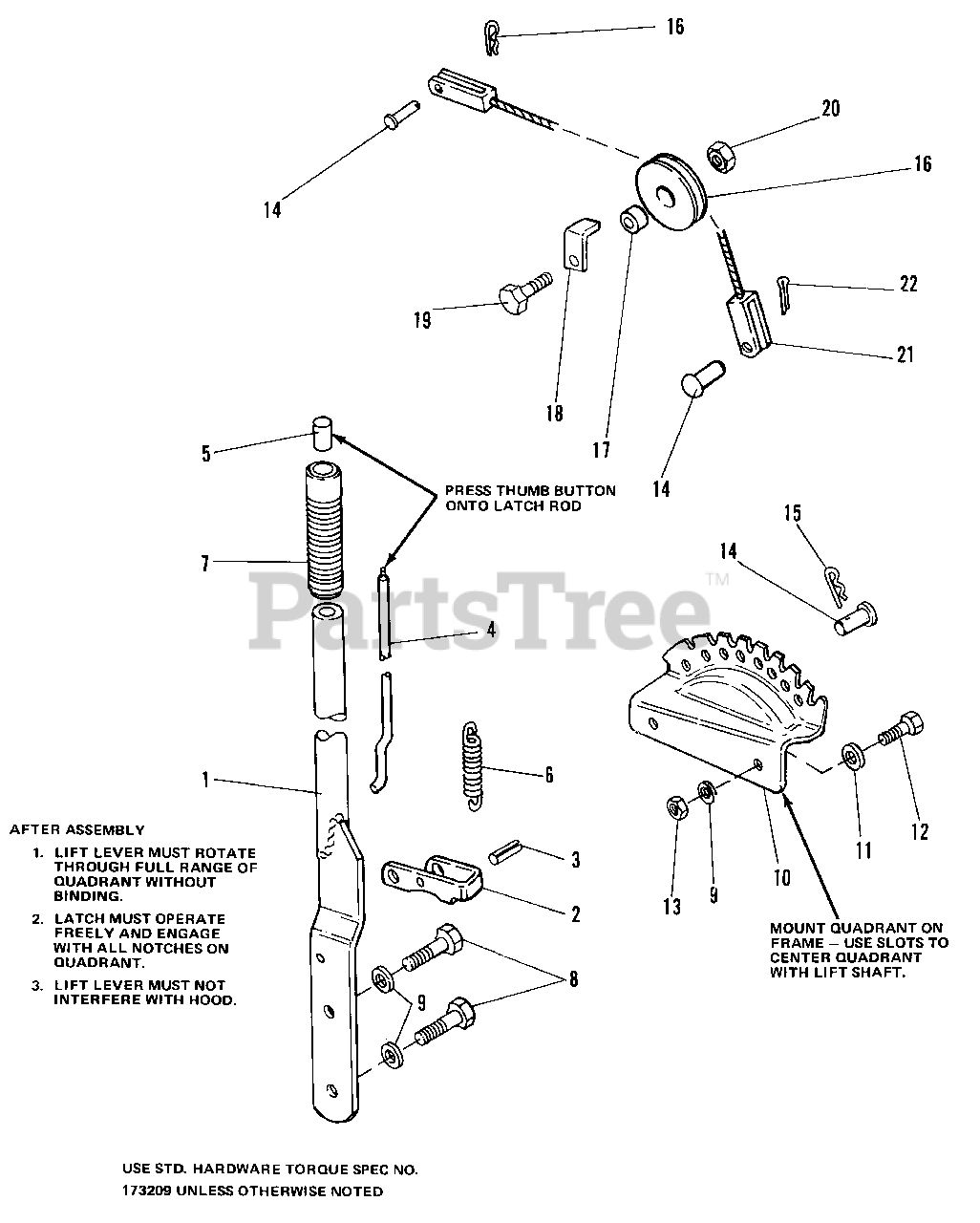

Lift Lever & Cable Group Parts Diagram

  • Title

1

Simplicity 1651389

LIFT LEVER ASSEMBLY

$

$

Not available

2

Simplicity 173039

LATCH, Lift Lever

$

$

Not available

3

Simplicity 918390

PIN, Spring, 3/8 x 1-1/4

$

$

Not available

4

Simplicity 1651197

ROD, Latch

$

$

Not available

5

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

6

Simplicity 1650155SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 2156209

GRIP
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

8

Simplicity 2823490

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 171599

QUADRANT

$

$

Not available

11

Simplicity 2817642

WASHER, 5/16

$

$

Not available

12

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1708298SM

PIN

$

$

Not available

15

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 2172725SM

PULLEY

$48.99

$

In Stock, only 1 left!

0

17

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

18

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

19

Simplicity 2108418

SCREW

$

$

Not available

20

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

21

Simplicity 2174085SM

LIFT CABLE ASSY

$

$

Not available

22

Simplicity 2816241

PIN, Cotter, 3/32 x 7/8

$

$

Not available
