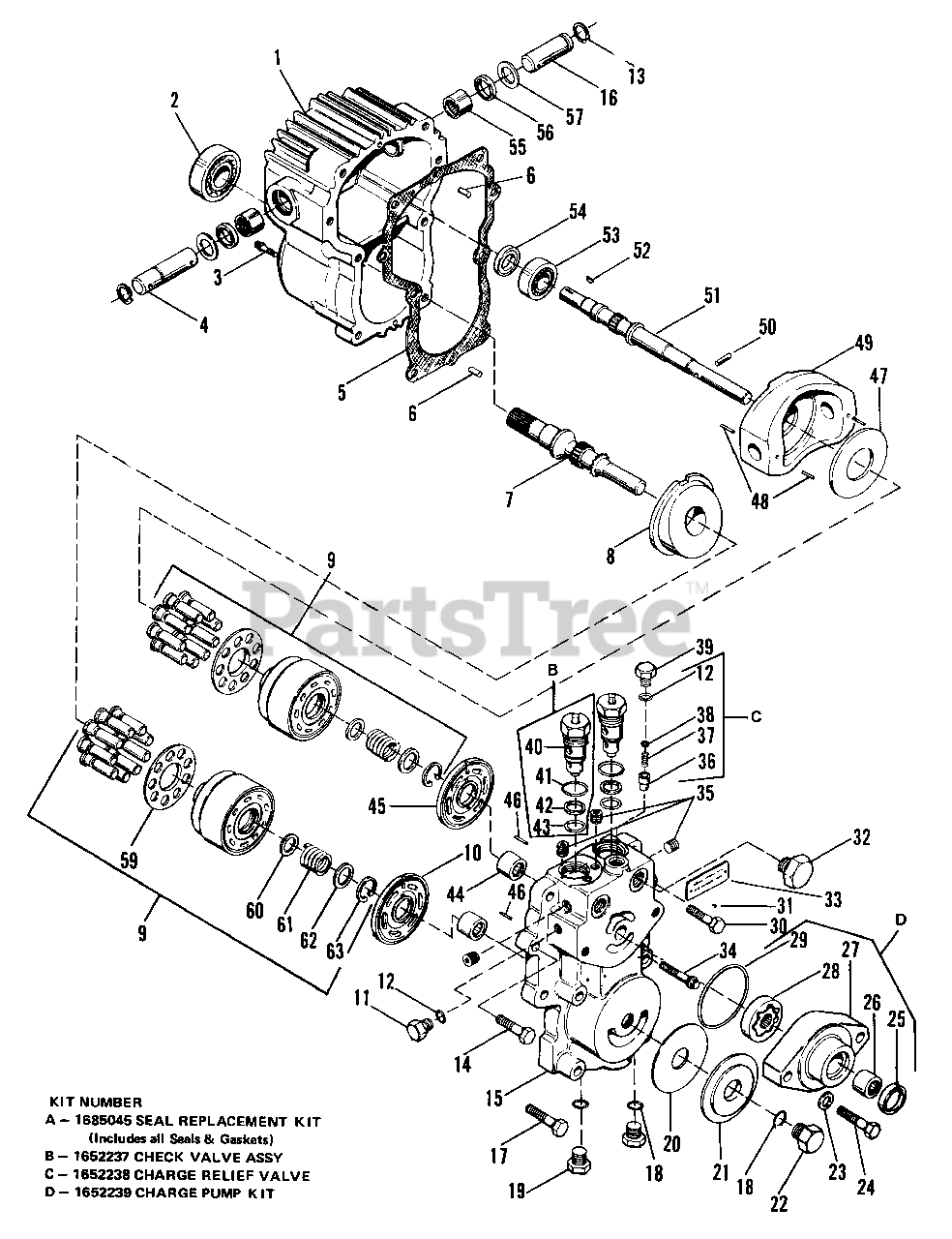

7016 H (1690202) - Simplicity Garden Tractor, 16hp Hydrostatic Pump Group - Diagram 2 Parts Diagram

Garden Tractor, 16hp

Hydrostatic Pump Group - Diagram 2 Parts Diagram

  • Title

1

Simplicity 1652180

HOUSING

$

$

Not available

2

Simplicity 1652181SM

BEARING, Ball

$

$

Not available

3

Simplicity 1652182

CAPSCREW, 12 Pt.

$

$

Not available

4

Simplicity 1652183SM

TRUNNION

$159.99

$

Usually ships in 2-12 days

0

5

Simplicity 1652184SM

GASKET

$

$

Not available

6

Simplicity 1652185SM

PIN, Str. Headless

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1652186SM

SHAFT, Motor

$

$

Not available

8

Simplicity 1715530SM

PLATE, Swash

$

$

Not available

9

Simplicity 1673535SM

* CYLINDER BLOCK KIT

$1017.99

$

Usually ships in 2-12 days

0

10

Simplicity 1652189SM

VALVE, Plate

$

$

Not available

11

Simplicity 1652190

PLUG, Hex Hd.

$

$

Not available

12

Simplicity 2821884SM

"O" RING

$3.99

$

In Stock, only 3 left!

0

13

Simplicity 1652192SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1920415SM

CAPSCREW, Hex Hd.
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1652254SM

SECTION, Center

$1709.99

$

Usually ships in 2-12 days

0

16

Simplicity 1652194SM

TRUNNION

$86.99

$

Usually ships in 2-12 days

0

17

Simplicity 1923701SM

CAPSCREW, Hex Hd.
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1652196SM

"O" RING

$2.49

$

Usually ships in 2-12 days

0

19

Simplicity 1652197SM

PLUG, Hex Hd.

$20.99

$

Usually ships in 2-12 days

0

20

Simplicity 1652198SM

GASKET

$14.99

$

Usually ships in 2-12 days

0

21

Simplicity 1652199SM

COVER PLATE, Filter

$56.99

$

Usually ships in 2-12 days

0

22

Simplicity 1652200SM

PLUG, Special

$34.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918199SM

WASHER, Flat
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1652202

CAPSCREW, Hex Hd.

$

$

Not available

25

Simplicity 1652203SM

SEAL, Lip

$22.99

$

Usually ships in 2-12 days

0

26

Simplicity 1652204SM

BEARING, Needle

$

$

Not available

27

Simplicity 1685128SM

HOUSING, Charge Pump

$911.99

$

Usually ships in 2-12 days

0

28

Simplicity 1685128SM

GEROTOR ASSY

$911.99

$

Usually ships in 2-12 days

0

29

Simplicity 1652207SM

"O" RING

$8.99

$

In Stock, only 1 left!

0

30

Simplicity 1921969SM

CAPSCREW, Hex Hd.
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

31

Simplicity 1652209

SCREW, Drive

$

$

Not available

32

Simplicity 1652210

PLUG, Str. Thd., Hex

$

$

Not available

33

PLATE, Name

$

$

Not available

34

Simplicity 165221

CAPSCREW, 12 Pt.

$

$

Not available

35

Simplicity 2860625SM

PLUG, Pipe

$1.99

$

Usually ships in 2-12 days

0

36

Simplicity 1652214SM

CONE, Relief Valve

$

$

Not available

37

Simplicity 1652253SM

SPRING, Relief Valve

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1652216SM

SHIM

$54.99

$

Usually ships in 2-12 days

0

39

Simplicity 1652217SM

PLUG, Hex Hd.

$21.99

$

Usually ships in 2-12 days

0

40

Simplicity 1673537SM

CHECK VALVE ASSY

$245.99

$

Usually ships in 2-12 days

0

41

Simplicity 1652219SM

O-RING

$5.49

$

In Stock, only 1 left!

0

42

Simplicity 1652220SM

RING, Back-up

$10.99

$

Usually ships in 2-12 days

0

43

Simplicity 1652221SM

"O" RING

$2.99

$

Usually ships in 2-12 days

0

44

Simplicity 1652222SM

BEARING, Needle

$34.99

$

Usually ships in 2-12 days

0

45

Simplicity 1652223SM

PLATE, Valve

$

$

Not available

46

Simplicity 1652224SM

PIN, Str. Headless

$

$

Not available

47

Simplicity 1652225

PLATE, Thrust

$

$

Not available

48

Simplicity 1652226SM

PIN, Coiled Spring

$5.99

$

Usually ships in 2-12 days

0

49

Simplicity 1652227

PLATE, Swash

$

$

Not available

50

Simplicity 1652228SM

PIN, Str. Headless

$5.49

$

Usually ships in 2-12 days

0

51

Simplicity 1652229SM

SHAFT, Pump

$655.99

$

Usually ships in 2-12 days

0

52

Simplicity 2805123SM

KEY, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

53

Simplicity 1652231SM

BEARING, Ball

$60.99

$

Usually ships in 2-12 days

0

54

Simplicity 1612093SM

SEAL, Lip

$10.99

$

In Stock, Qty 20+

0

55

Simplicity 1652251SM

BEARING, Needle

$20.99

$

Usually ships in 2-12 days

0

56

Simplicity 1652234SM

SEAL, Lip

$

$

Not available

57

Simplicity 1652235SM

WASHER, Special

$8.49

$

Usually ships in 2-12 days

0

59

Simplicity 1656009SM

RETAINER, Slipper

$23.99

$

Usually ships in 2-12 days

0

60

Simplicity 1656007SM

WASHER, Front

$

$

Not available

61

Simplicity 1656006SM

SPRING

$

$

Not available

62

Simplicity 1656005SM

WASHER, Rear

$3.49

$

Usually ships in 2-12 days

0

63

Simplicity 2172584SM

RING, Retaining

$5.49

$

In Stock, Qty 6

0

64

Simplicity 1685045SM

SEAL & GASKET KIT

$165.99

$

Usually ships in 2-12 days

0
