7016 H (1690202) - Simplicity Garden Tractor, 16hp Engine & Drive Shaft Group Parts Diagram

Garden Tractor, 16hp

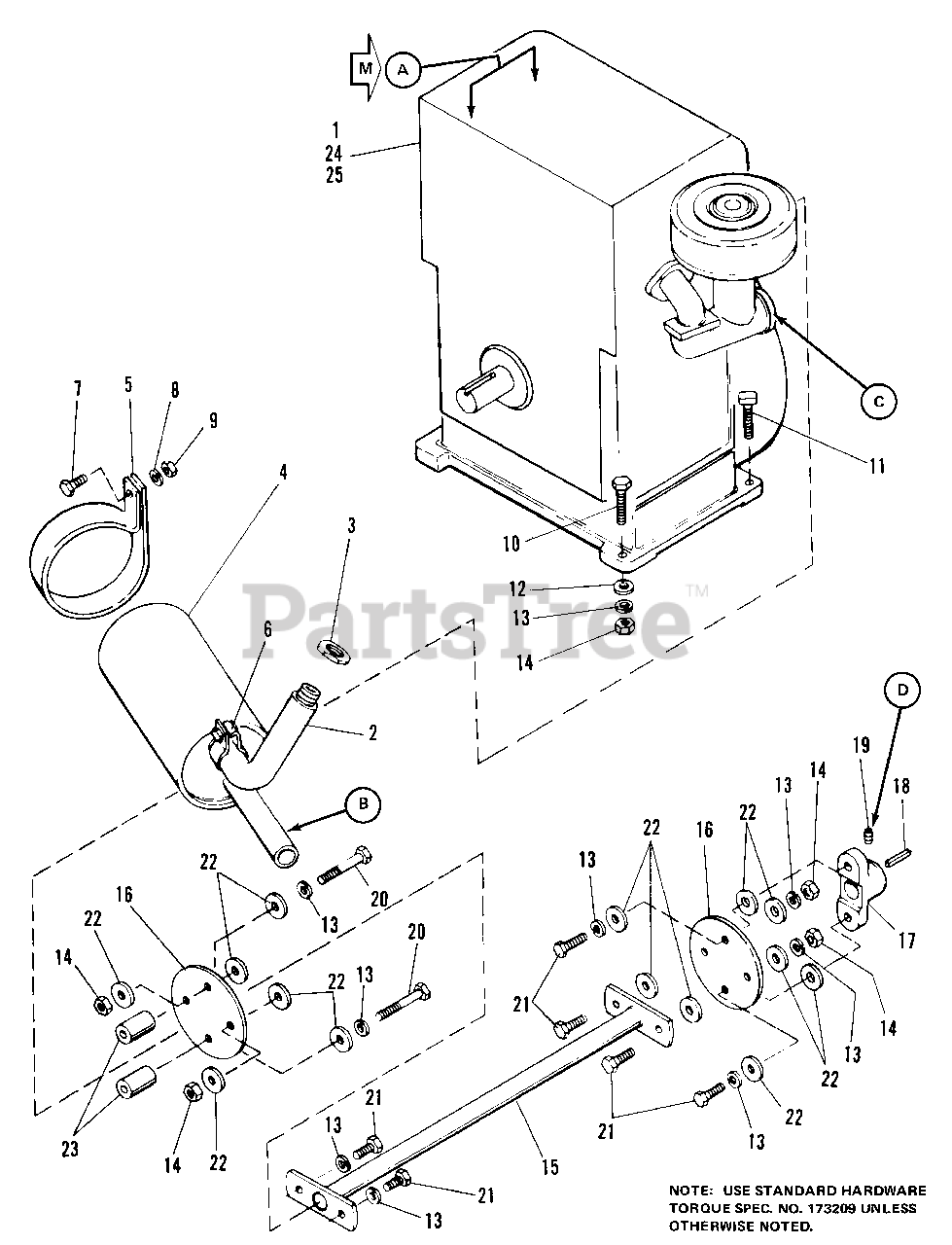

Engine & Drive Shaft Group Parts Diagram

  • Title

1

ENGINE, 10 H.P.-Briggs & Stratton

$

$

Not available

2

Simplicity 1656492

ELBOW & NIPPLE ASSEMBLY

$

$

Not available

3

Simplicity 2154378SM

LOCKNUT

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 2170456

MUFFLER

$

$

Not available

5

Simplicity 2171880SM

STRAP, Muffler

$32.99

$

Usually ships in 2-12 days

0

6

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$

$

Not available

7

Simplicity 2819933

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

11

Simplicity 172455

CAPSCREW, Hex Hd., 3/8-16 x 1-5/16

$

$

Not available

12

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

14

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2172328SM

DRIVESHAFT ASSEMBLY
(Superseded to 2172328ASM)

$

$

Not available

16

Simplicity 2173026SM

COUPLING

$39.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172264SM

FLANGE, DRIVESHAFT

$

$

Not available

18

Simplicity 2157427SM

KEY, Driveshaft

$5.49

$

In Stock, only 1 left!

0

19

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

20

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

21

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

23

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

24

ENGINE, 16 H.P.-Briggs & Stratton

$

$

Not available
