7016 H (1690006) - Simplicity Garden Tractor, 16hp 7016H HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor, 16hp

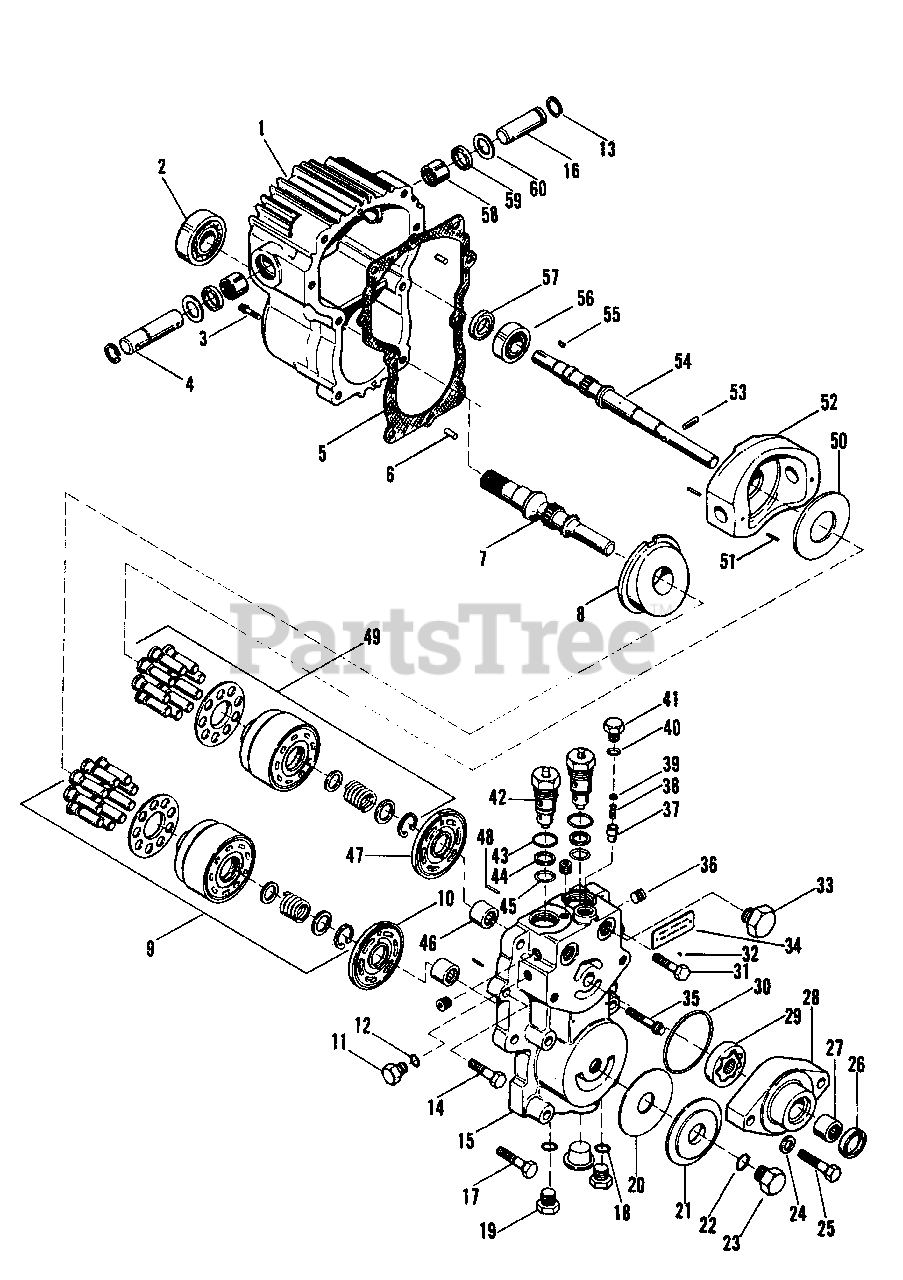

7016H HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Simplicity 1652180

HOUSING

$

$

Not available

2

Simplicity 1652181SM

BALL BEARING

$

$

Not available

3

Simplicity 1652182

12 PT. CAPSCREW

$

$

Not available

4

Simplicity 1652183SM

TRUNNION

$159.99

$

Usually ships in 2-12 days

0

5

Simplicity 1652184SM

GASKET

$

$

Not available

6

Simplicity 1652185SM

HEADLESS STR. PIN

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1652186SM

MOTOR SHAFT

$

$

Not available

8

Simplicity 1715530SM

SWASH PLATE

$

$

Not available

9

Simplicity 1673535SM

CYL. BLOCK KIT

$1017.99

$

Usually ships in 2-12 days

0

10

Simplicity 1652189SM

VALVE PLATE

$

$

Not available

11

Simplicity 1652190

PLUG, Hex Head

$

$

Not available

12

Simplicity 2821884SM

"O" RING

$3.99

$

In Stock, only 3 left!

0

13

Simplicity 1652192SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1920415SM

CAPSCREW, Hex head
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1652254SM

CENTER SECTION

$1709.99

$

Usually ships in 2-12 days

0

16

Simplicity 1652194SM

TRUNNION

$86.99

$

Usually ships in 2-12 days

0

17

Simplicity 1923701SM

CAPSCREW, Hex head
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 1652196SM

"O" RING

$2.49

$

Usually ships in 2-12 days

0

19

Simplicity 1652197SM

PLUG, Hex head

$20.99

$

Usually ships in 2-12 days

0

20

Simplicity 1652198SM

GASKET

$14.99

$

Usually ships in 2-12 days

0

21

Simplicity 1652199SM

FILTER COVER PLATE

$56.99

$

Usually ships in 2-12 days

0

22

Simplicity 1652196SM

"O" RING

$2.49

$

Usually ships in 2-12 days

0

23

Simplicity 1652200SM

SPECIAL PLUG

$34.99

$

Usually ships in 2-12 days

0

24

Simplicity 1918199SM

WASHER, Flat
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1652202

CAPSCREW, Hex head

$

$

Not available

26

Simplicity 1652203SM

SEAL, Lip

Note: KIT NUMBER 4 1652239 CHARGE PUMP KIT

$22.99

$

In Stock, only 1 left!

0

27

Simplicity 1652204SM

NEEDLE BEARING

Note: KIT NUMBER 4 1652239 CHARGE PUMP KIT

$31.99

$

Usually ships in 2-12 days

0

28

Simplicity 1685128SM

CHARGE PUMP HOUSING

Note: KIT NUMBER 4 1652239 CHARGE PUMP KIT

$911.99

$

Usually ships in 2-12 days

0

29

Simplicity 1685128SM

GEROTOR ASSY.

Note: KIT NUMBER 4 1652239 CHARGE PUMP KIT

$911.99

$

Usually ships in 2-12 days

0

30

Simplicity 1652207SM

"O" RING

Note: KIT NUMBER 4 1652239 CHARGE PUMP KIT

$8.99

$

In Stock, only 1 left!

0

31

Simplicity 1921969SM

CAPSCREW, Hex head
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 1652209

DRIVE SCREW

$

$

Not available

33

Simplicity 1652210

STR. THD. HEX PLUG

$

$

Not available

34

Simplicity 1652211

NAME PLATE

$

$

Not available

35

Simplicity 1652212SM

12 PT. CAPSCREW

$6.99

$

Usually ships in 2-12 days

0

36

Simplicity 2860625SM

PLUG, Pipe

$1.99

$

Usually ships in 2-12 days

0

37

Simplicity 1652214SM

RELIEF VALVE CONE

Note: KIT NUMBER 3 1652238 CHARGE RELIEF VALVE

$

$

Not available

38

Simplicity 1652253SM

RELIEF VALVE SPRING

Note: KIT NUMBER 3 1652238 CHARGE RELIEF VALVE

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1652216SM

SHIM PACK

$54.99

$

Usually ships in 2-12 days

0

40

Simplicity 2821884SM

"O" RING

Note: KIT NUMBER 3 1652238 CHARGE RELIEF VALVE

$3.99

$

In Stock, only 3 left!

0

41

Simplicity 1652217SM

PLUG, Hex head

$21.99

$

Usually ships in 2-12 days

0

42

Simplicity 1673537SM

CHECK VALVE ASSY.

Note: KIT NUMBER 2 1652237 CHECK VALVE ASSY.

$245.99

$

Usually ships in 2-12 days

0

43

Simplicity 1652219SM

O-RING

Note: KIT NUMBER 2 1652237 CHECK VALVE ASSY.

$5.49

$

In Stock, only 1 left!

0

44

Simplicity 1652220SM

BACK-UP RING

Note: KIT NUMBER 2 1652237 CHECK VALVE ASSY.

$10.99

$

Usually ships in 2-12 days

0

45

Simplicity 1652221SM

"O" RING

Note: KIT NUMBER 2 1652237 CHECK VALVE ASSY.

$2.99

$

Usually ships in 2-12 days

0

46

Simplicity 1652222SM

NEEDLE BEARING

$34.99

$

Usually ships in 2-12 days

0

47

Simplicity 1652223SM

VALVE PLATE

$

$

Not available

48

Simplicity 1652224SM

PIN, STR. HEADLESS

$

$

Not available

49

Simplicity 1673535SM

CYL. BLOCK KIT

$1017.99

$

Usually ships in 2-12 days

0

50

Simplicity 1652225

THRUST PLATE

$

$

Not available

51

Simplicity 1652226SM

COILED SPRING PIN

$5.99

$

Usually ships in 2-12 days

0

52

Simplicity 1652227

SWASH PLATE

$

$

Not available

53

Simplicity 1652228SM

HEADLESS STR. PIN

$5.49

$

Usually ships in 2-12 days

0

54

Simplicity 1652229SM

PUMP SHAFT

$655.99

$

Usually ships in 2-12 days

0

55

Simplicity 2805123SM

WOODRUFF KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1652231SM

BALL BEARING

$60.99

$

Usually ships in 2-12 days

0

57

Simplicity 1612093SM

SEAL, Lip

$10.99

$

In Stock, Qty 20+

0

58

Simplicity 1652251SM

NEEDLE BEARING

$20.99

$

Usually ships in 2-12 days

0

59

Simplicity 1652234SM

SEAL Lip

$

$

Not available

60

Simplicity 1652235SM

WASHER

$8.49

$

Usually ships in 2-12 days

0
