7016 H (1690006) - Simplicity Garden Tractor, 16hp 7016H HYDROSTATIC CONTROL AND FILTER Parts Diagram

Garden Tractor, 16hp

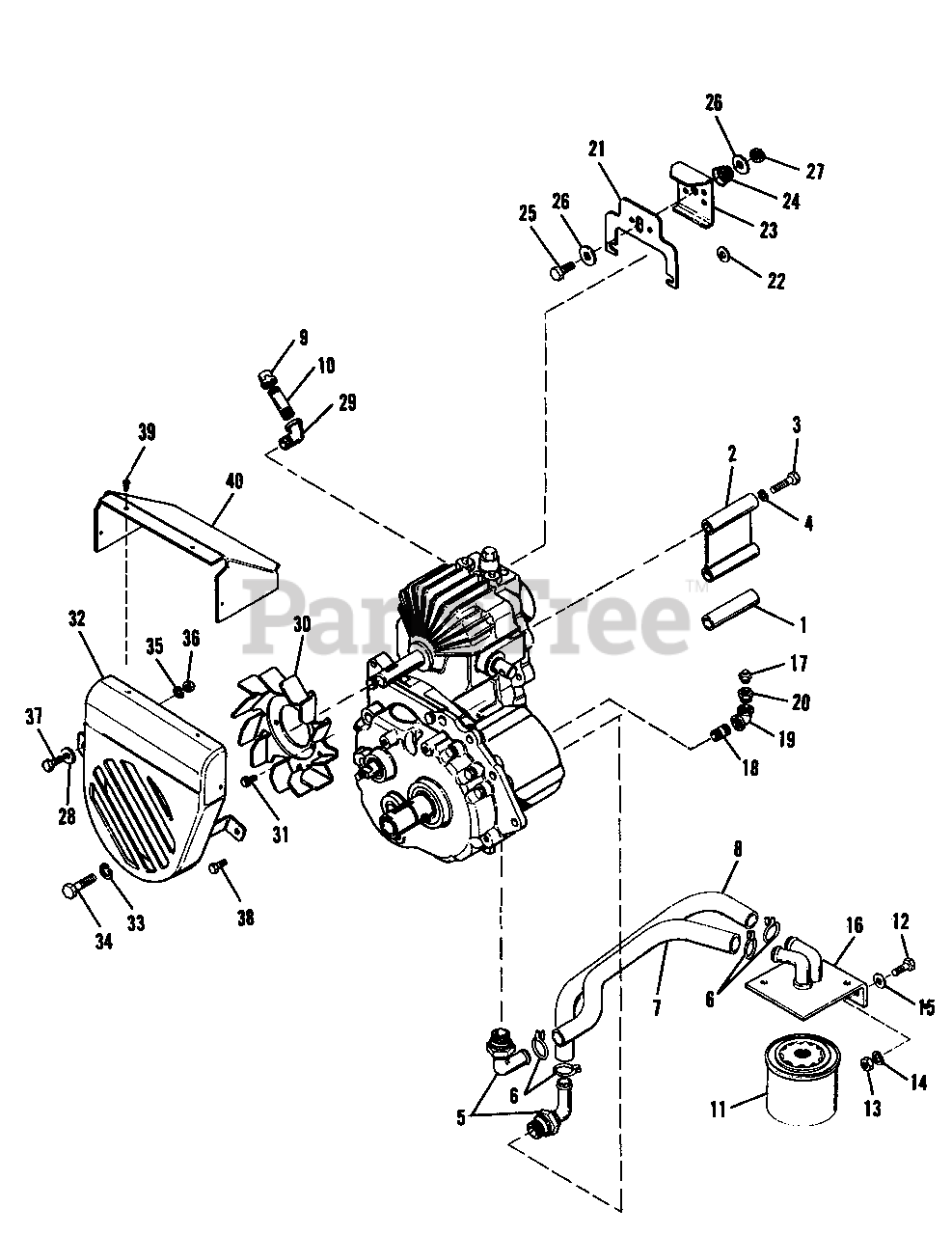

7016H HYDROSTATIC CONTROL AND FILTER Parts Diagram

  • Title

1

Simplicity 1650524

SPACER
(Superseded to 1650524SM)

$51.99

$

Usually ships in 2-12 days

0

2

Simplicity 1650633SM

SPACER

$37.99

$

Usually ships in 2-12 days

0

3

Simplicity 2823090

CAPSCREW, Hex 3/8"-16 x 1-1/8" lg.

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1669954SM

INSERT, Hose

$27.99

$

Usually ships in 2-12 days

0

6

Simplicity 2171457

CLAMP, Hose

$

$

Not available

7

Simplicity 1650564SM

HOSE

$41.99

$

Usually ships in 2-12 days

0

8

Simplicity 1650564SM

HOSE

$41.99

$

Usually ships in 2-12 days

0

9

Simplicity 2801752

CAP, Pipe

$

$

Not available

10

Simplicity 901492

NIPPLE, Pipe

$

$

Not available

11

Simplicity 1650954SM

FILTER ASSEMBLY

$

$

Not available

12

Simplicity 2819319

CAPSCREW, Hex, 5/16"-18 x 7/8" lg.

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

16

Simplicity 1650989

SUPPORT ASSEMBLY, Oil Filter

$

$

Not available

17

Simplicity 172898

RELIEF VALVE

$

$

Not available

18

Simplicity 2801480SM

NIPPLE, Pipe

$6.49

$

Usually ships in 2-12 days

0

19

Simplicity 2801677

ELBOW, Pipe

$

$

Not available

20

Simplicity 2801825SM

BUSHING, Pipe

$8.99

$

Usually ships in 2-12 days

0

21

Simplicity 1651089SM

BRACKET

$

$

Not available

22

Simplicity 2156065

WASHER

$

$

Not available

23

Simplicity 1651090SM

LATCH, Release

$

$

Not available

24

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

25

Simplicity 2816431

CAPSCREW, Hex, 5/16"-18 x 1" lg.

$

$

Not available

26

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

27

Simplicity 2823362

NUT, Hex, Full, Lock, 5/16"-18

$

$

Not available

28

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

29

Simplicity 2801723

STEET ELBOW

$

$

Not available

30

Simplicity 2166022SM

FAN, Pulley

$115.99

$

Usually ships in 2-12 days

0

31

Simplicity 2825003

SCREW, Hex, Washer Hd. 1/4"-20 x 1/2" lg.

$

$

Not available

32

Simplicity 2178774

SHROUD ASSEMBLY, Fan

$

$

Not available

33

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

34

Simplicity 2819357

CAPSCREW, Hex, 3/8"-16 x 7/8" lg.

$

$

Not available

35

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 2817397

CAPSCREW, Hex 5/16"-18 x 3/4" lg.

$

$

Not available

38

Simplicity 930557

SCREW, Hex Thred Forming 5/16" x 1/2" lg.

$

$

Not available

39

Simplicity 2823735

SCREW, Self Tapping #10 x 3/8" lg.

$

$

Not available

40

Simplicity 2178779SM

DEFLECTOR, Shroud.

$30.99

$

Usually ships in 2-12 days

0
