7016 H (1690006) - Simplicity Garden Tractor, 16hp 7016H HYDROSTATIC CONTROL Parts Diagram

Garden Tractor, 16hp

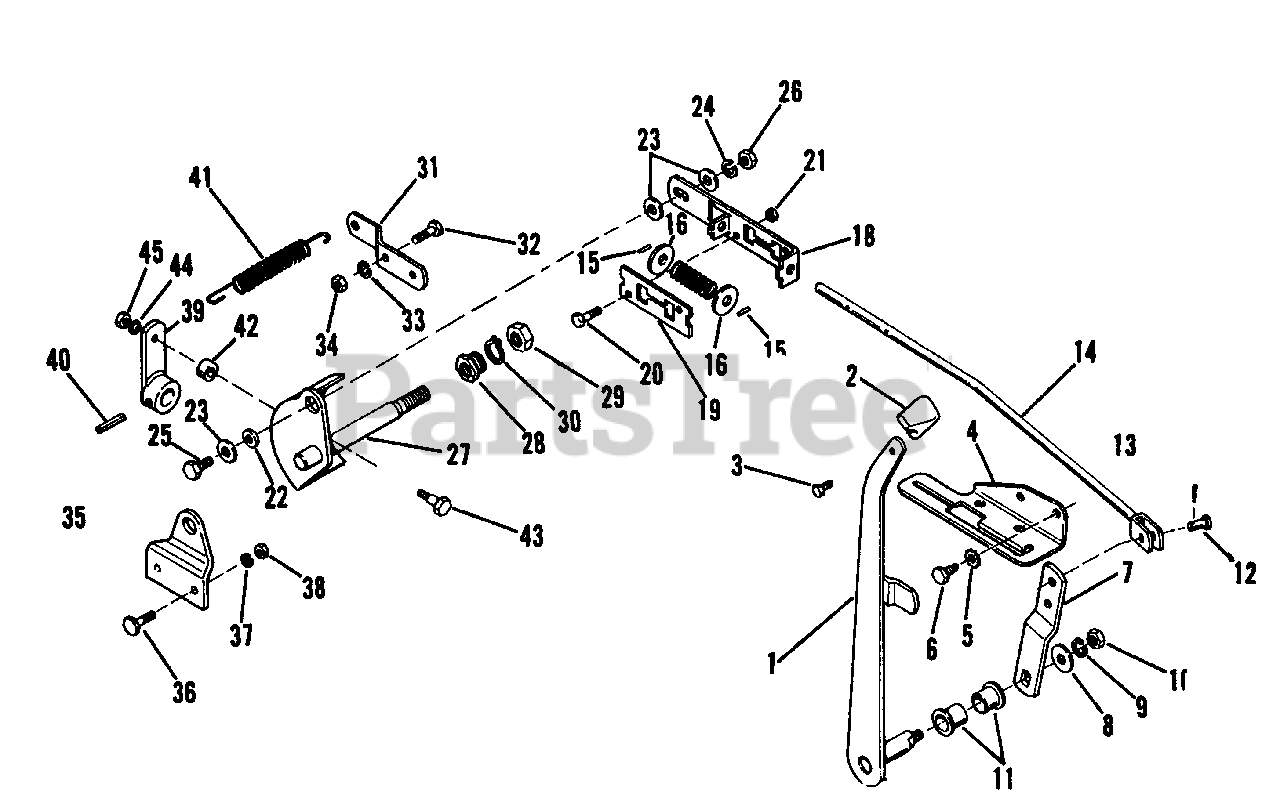

7016H HYDROSTATIC CONTROL Parts Diagram

  • Title

1

Simplicity 1665257SM

LEVER ASSEMBLY, Control

$

$

Not available

2

Simplicity 2171165

KNOB

$

$

Not available

3

Simplicity 2825592SM

SCREW, Thread Forming 1/4"-20 x 3/4" lg.

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 1650360SM

QUANDRANT
(Superseded to 1650360ASM)

$30.99

$

Usually ships in 2-12 days

0

5

Simplicity 2820426SM

LOCKWASHER Shakeproof, 5/16"

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 172157

SCREW, Special

$

$

Not available

7

Simplicity 1650358SM

LlNK

$

$

Not available

8

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2108419

BUSHING

$

$

Not available

12

Simplicity 1651167SM

PIN

$

$

Not available

13

Simplicity 2818447

PIN, Cotter 3/32" x 3/4" lg.

$

$

Not available

14

Simplicity 1650715SM

ROD ASSEMBLY, Control

$

$

Not available

15

Simplicity 2819180SM

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1650347SM

SPRING

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 1650712SM

GUIDE, Control Rod
(Superseded to 1650712ASM)

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 1650713SM

PLATE, Guide

$5.49

$

Usually ships in 2-12 days

0

20

Simplicity 2808297

CAPSCREW, Hex, 1/4"-20 x 1-1/4" lg.

$

$

Not available

21

Simplicity 2823358

NUT, Hex, Full, Lock, 1/2"-20

$

$

Not available

22

Simplicity 1650506SM

SPACER

$17.99

$

Usually ships in 2-12 days

0

23

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

25

Simplicity 2807731

CAPSCREW, Hex, 3/8"-16 x 1" lg.

$

$

Not available

26

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

27

Simplicity 1650874SM

SHAFT ASSEMBLY

$

$

Not available

28

Simplicity 1650872SM

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

29

Simplicity 2813744

NUT, Hex, Jam, 1/2"-13

$

$

Not available

30

Simplicity 2157286

RING, Retaining

$

$

Not available

31

Simplicity 1650652

SUPPORT, Spring

$

$

Not available

32

Simplicity 2816431

CAPSCREW, Hex, 5/16"-18 x 1" lg.

$

$

Not available

33

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1650401SM

BRACKET, Pivot

$

$

Not available

36

Simplicity 1650430

SCREW, Hex

$

$

Not available

37

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1650392

LINK ASSEMBLY, Control

$

$

Not available

40

Simplicity 2816937SM

PIN, Roll, 1/4" x 1-1/4" lg.

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 2121037SM

SPRING

$

$

Not available

42

Simplicity 1650592SM

ROLLER, Cam

$

$

Not available

43

Simplicity 1650621SM

BOLT, Shoulder

$30.99

$

In Stock, only 1 left!

0

44

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

45

Simplicity 2816622SM

NUT, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0
