7016 H (1690006) - Simplicity Garden Tractor, 16hp 7016-7016H FRONT LIGHT GROUP Parts Diagram

Garden Tractor, 16hp

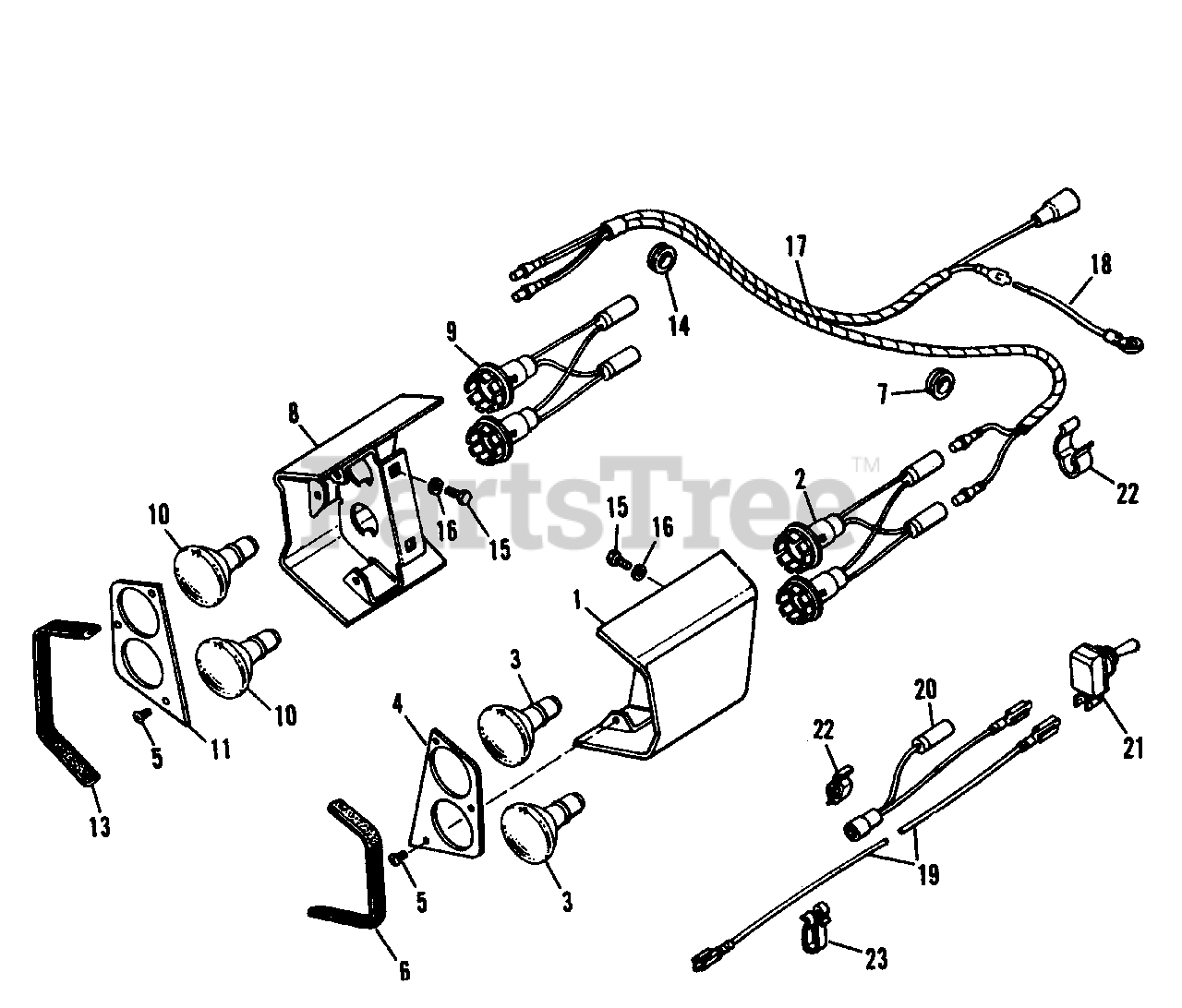

7016-7016H FRONT LIGHT GROUP Parts Diagram

  • Title

1

Simplicity 172286

SHROUD & PLATE ASSEMBLY L.H.

$

$

Not available

2

Simplicity 172290

LAMP SOCKET & WIRE ASSEMBLY

$

$

Not available

3

Simplicity 172048

HEADLIGHT

$

$

Not available

4

Simplicity 172243

PLATE, Front

$

$

Not available

5

Simplicity 928695

SCREW, Thread Forming, #12-24 x 1/2" lg.

$

$

Not available

6

Simplicity 172269

MOLDING

$

$

Not available

7

Simplicity 2172176SM

GROMMET

$6.49

$

In Stock, only 2 left!

0

8

Simplicity 172285

SHROUD & PLATE ASSEMBLY R.H.

$

$

Not available

9

Simplicity 172290

LAMP SOCKET & WIRE ASSEMBLY

$

$

Not available

10

Simplicity 172048

HEADLIGHT

$

$

Not available

11

Simplicity 172243

PLATE, Front

$

$

Not available

12

Simplicity 928695

SCREW, Thread Forming #12-24 x 1/2" lg.

$

$

Not available

13

Simplicity 172269

MOLDING

$

$

Not available

14

Simplicity 2172176SM

GROMMET

$6.49

$

In Stock, only 2 left!

0

15

Simplicity 2816019

SCREW, Hex, 1/4"-20 x 3/4" lg.

$

$

Not available

16

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 172294

HARNESS ASSEMBLY

$

$

Not available

18

Simplicity 1651821

WIRE, Headlight to Ground

$

$

Not available

19

Simplicity 172296

WIRE ASSEMBLY, Light Switch

$

$

Not available

20

Simplicity 1651147

WIRE ASSEMBLY

$

$

Not available

21

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

22

Simplicity 178436

CABLE Clip, Tinnerman

$

$

Not available

23

Simplicity 2172434SM

CABLE Clip, Tinnernnan

$4.99

$

Usually ships in 2-12 days

0
