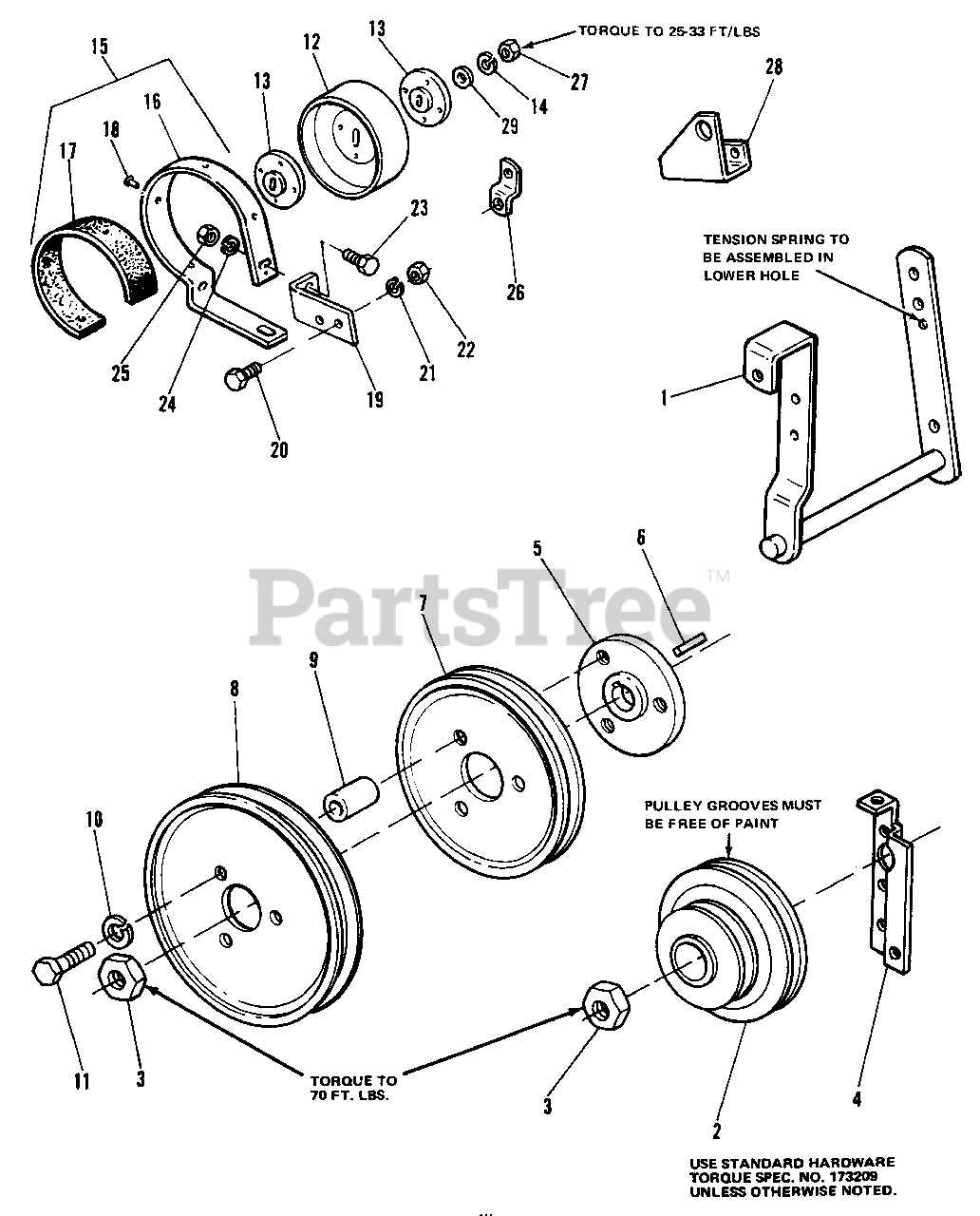

7016 (1690341) - Simplicity Garden Tractor, 16hp Transmission Brake, Drive, & Control Group (7010 & 7016) Parts Diagram

Garden Tractor, 16hp

Transmission Brake, Drive, & Control Group (7010 & 7016) Parts Diagram

  • Title

1

Simplicity 1656459

PIVOT LEVER ASSEMBLY

$

$

Not available

2

Simplicity 1608322SM

FRONT PULLEY ASSEMBLY

$

$

Not available

3

Simplicity 2822133

LOCKNUT, Jam, 3/4-16

$

$

Not available

4

Simplicity 1608304

SUPPORT, Belt Retainer

$

$

Not available

5

Simplicity 1608309

HUB, Pulley

$

$

Not available

6

Simplicity 2805123SM

KEY, Woodruff, No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1608122

SHEAVE

$

$

Not available

8

Simplicity 174420

SHEAVE

$

$

Not available

9

Simplicity 1608310SM

SPACER

$38.99

$

Usually ships in 2-12 days

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2819354

CAPSCR EW, Hex Hd., 5/16-18 x 2

$

$

Not available

12

Simplicity 2157282

DRUM, Brake

$

$

Not available

13

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

15

Simplicity 2171497

BRAKE BAND ASSEMBLY

$

$

Not available

16

BAND, Brake (See Ref. No. 15)

$

$

Not available

17

Simplicity 2154133

LINING, Brake

$

$

Not available

18

Simplicity 928308

RIVET, Tubular

$

$

Not available

19

Simplicity 164113

BRACKET, Brake Band

$

$

Not available

20

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

22

Simplicity 2816950SM

NUT, Hex Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 2816019

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

24

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

25

Simplicity 2816622SM

NUT, Hex Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 174893

CLIP, Spring

$

$

Not available

27

Simplicity 2818213

NUT, Hex Fu11, 7/16-14

$

$

Not available

28

Simplicity 1607027

BEARING, Idler Pivot

$

$

Not available

29

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
