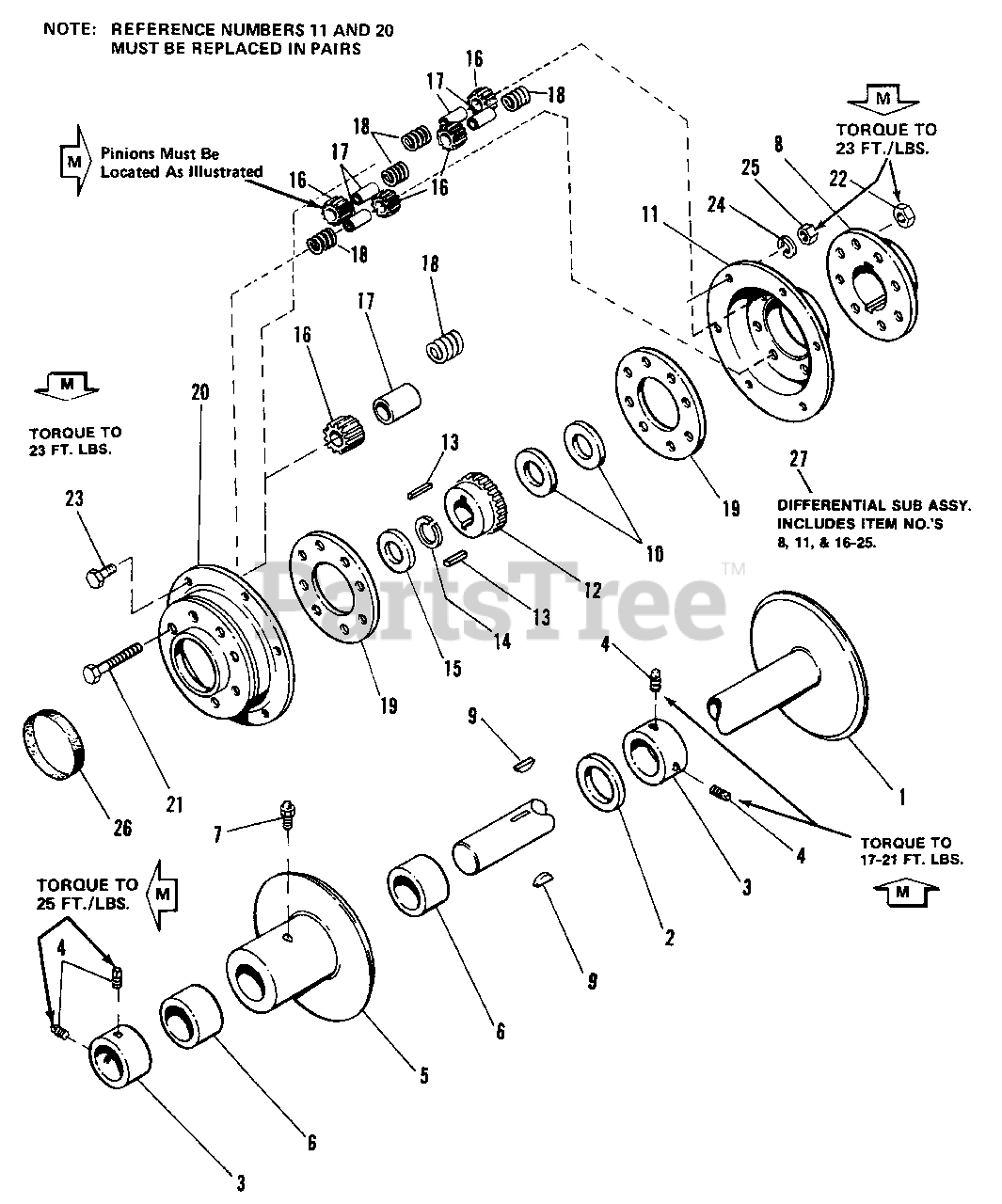

7016 (1690341) - Simplicity Garden Tractor, 16hp Rear Axle & Differential Group (7010 & 7016) Parts Diagram

Garden Tractor, 16hp

Rear Axle & Differential Group (7010 & 7016) Parts Diagram

  • Title

1

Simplicity 2177900ASM

REAR AXLE ASSEMBLY

$

$

Not available

2

Simplicity 2105050

WASHER

$

$

Not available

3

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

4

Simplicity 2828709

SETSCREW, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

5

Simplicity 2176945SM

R.H.WHEEL HUB ASSEMBLY

$

$

Not available

6

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

7

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 2164217SM

CARRIER, Diff.

$125.99

$

Usually ships in 2-12 days

0

9

Simplicity 2157120SM

KEY, Drive

$6.99

$

In Stock, only 1 left!

0

10

Simplicity 2171515

WASHER, Axle

$

$

Not available

11

Simplicity 2171853SM

COVER, Diff.

$

$

Not available

12

Simplicity 2177041SM

GEAR, Diff.

$125.99

$

In Stock, only 1 left!

0

13

Simplicity 2830671SM

KEY, Hi Pro, 1/4x3/4

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 2154291SM

RING, Retaining

$

$

Not available

15

Simplicity 2154277

WASHER, Axle

$

$

Not available

16

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

17

Simplicity 2121083SM

SPINDLE, Diff. Pinion

$13.99

$

In Stock, only 1 left!

0

18

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 6

0

19

Simplicity 2171517SM

RING, Spacer

$

$

Not available

20

Simplicity 2103189SM

COVER, Diff.

$

$

Not available

21

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

22

Simplicity 1930645SM

NUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

24

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

25

Simplicity 2816622SM

NUT, Hex, 1/4-14
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2121190SM

SEAL, Cover

$

$

Not available

27

Simplicity 1650519SM

DIFFERENTIAL SUB ASSY. (Includes Item No.'s 8, 11, 16-25)

$

$

Not available
