70142 (13-32) - Toro Rear-Engine Riding Mower (SN: 069000001 - 069999999) (1996) FRONT TOWER ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

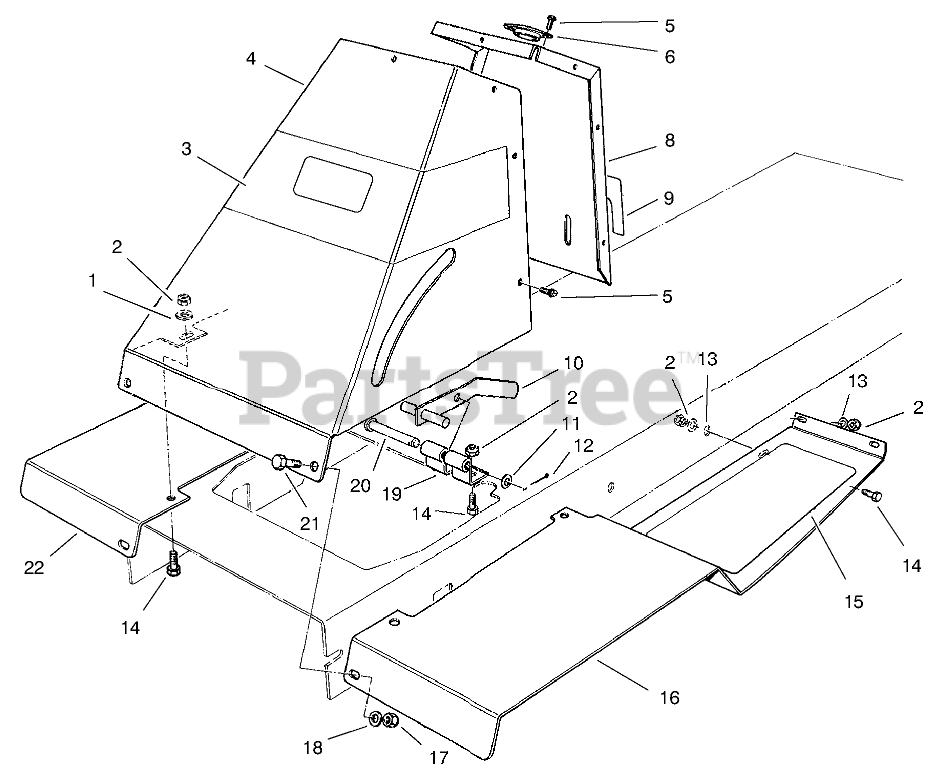

FRONT TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

3

Toro 92-7987

DECAL - STEERING SUPT

$

$

Not available

4

Toro 56-7130

Tower-Front
(Superseded to 56-7130-01)

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 56-7170

GUIDE-STRG SHAFT

$10.99

$

Usually ships in 3-6 days

0

8

Toro 56-7140

Tower-Rear
(Superseded to 56-7140-03)

$

$

Not available

9

Toro 93-7008

DECAL - PARKING BRAKE

$

$

Not available

10

Toro 47-1290

PARKING BRAKE WA B

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-7975

TREAD-L.H. FOOT

$

$

Not available

Toro 92-7974

TREAD-R.H. FOOT

Note: Not illustrated

$39.99

$

Usually ships in 3-6 days

0

16

Toro 47-0940

Footrest-LH
(Superseded to 47-0940-01)

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 47-2060

Bracket-Parking Brake
(Superseded to 47-2060-03)

$

$

Not available

20

Toro 283-52

PIN-CLEVIS

$12.99

$

In Stock, only 1 left!

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 47-0930

Footrest-RH.
(Superseded to 47-0930-01)

$

$

Not available

Toro 12-8829

Loose Parts

Note: Not illustrated

$

$

Not available

Toro 12-8819

Loose Parts (Includes Steering Wheel)

Note: Not illustrated

$

$

Not available
