70140 (12-32) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) MOWER ASSEMBLY-USED ON MODEL NO. 70140 Parts Diagram

Rear-Engine Riding Mower

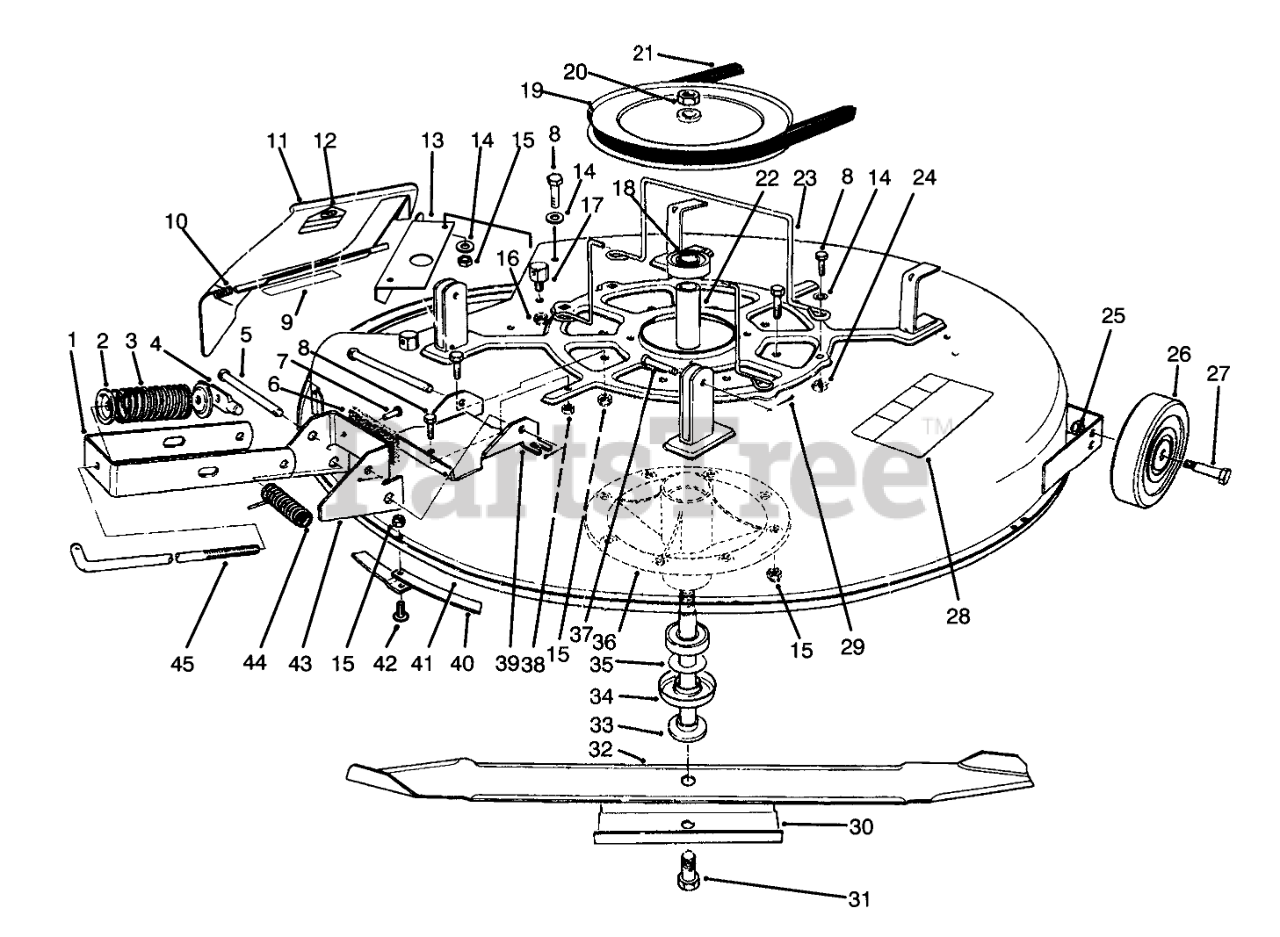

MOWER ASSEMBLY-USED ON MODEL NO. 70140 Parts Diagram

  • Title

1

Toro 47-1180

Bracket-Engagement
(Superseded to 47-1180-01)

$

$

Not available

2

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

3

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

4

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

5

Toro 80-2570

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

6

Toro 80-2550

PAD-BRAKE

$69.99

$

Usually ships in 3-6 days

0

7

Toro 3295-43

RIVET .187 X 7/16 BRASS

$

$

Not available

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

10

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

11

Toro 44-5930

Assembly-Deflector (Incl. Ref. #12)

$191.99

$

Usually ships in 3-6 days

0

12

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

13

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

17

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

18

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

19

Toro 80-4470

PULLEY

$

$

Not available

20

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

21

Toro 92-0875

V-BELT, DECK

$91.99

$

In Stock, only 2 left!

0

22

Toro 83-7020

SPACER-BEARING

$28.99

$

In Stock, only 1 left!

0

23

Toro 60-9730

GUIDE-BELT

$

$

Not available

24

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 61-9760

WHEEL-DECK

$50.99

$

In Stock, only 2 left!

0

27

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

28

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 80-4570

STIFFENER
(Superseded to 80-4570-03)

$28.99

$

In Stock, only 4 left!

0

31

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

32

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$58.99

$

In Stock, only 3 left!

0

33

Toro 80-4350

SHAFT-SPINDLE

$85.99

$

In Stock, only 4 left!

0

34

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

35

Toro 80-4390

SPACER-HARDNED

$4.49

$

Usually ships in 3-6 days

0

36

Toro 56-7030

SPINDLE

$

$

Not available

37

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

38

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

39

Toro 80-2560

Plate-Deck, Brake Mtg.
(Superseded to 80-2560-01)

$77.99

$

Usually ships in 3-6 days

0

40

Toro 88-9780

Ring-Deck
(Superseded to 92-9664-03)

$

$

Not available

41

Toro 14-9999

Deck-Cutting
(Superseded to 95-7498)

$

$

Not available

42

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

43

Toro 80-2530

Assembly Brake (Incl. Ref. #6-7)

$

$

Not available

44

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

45

Toro 80-2580

ROD-ENGAGEMENT

$41.99

$

Usually ships in 3-6 days

0
