7014 S (1690337) - Simplicity Garden Tractor, 14hp Transmission Group Parts Diagram

Garden Tractor, 14hp

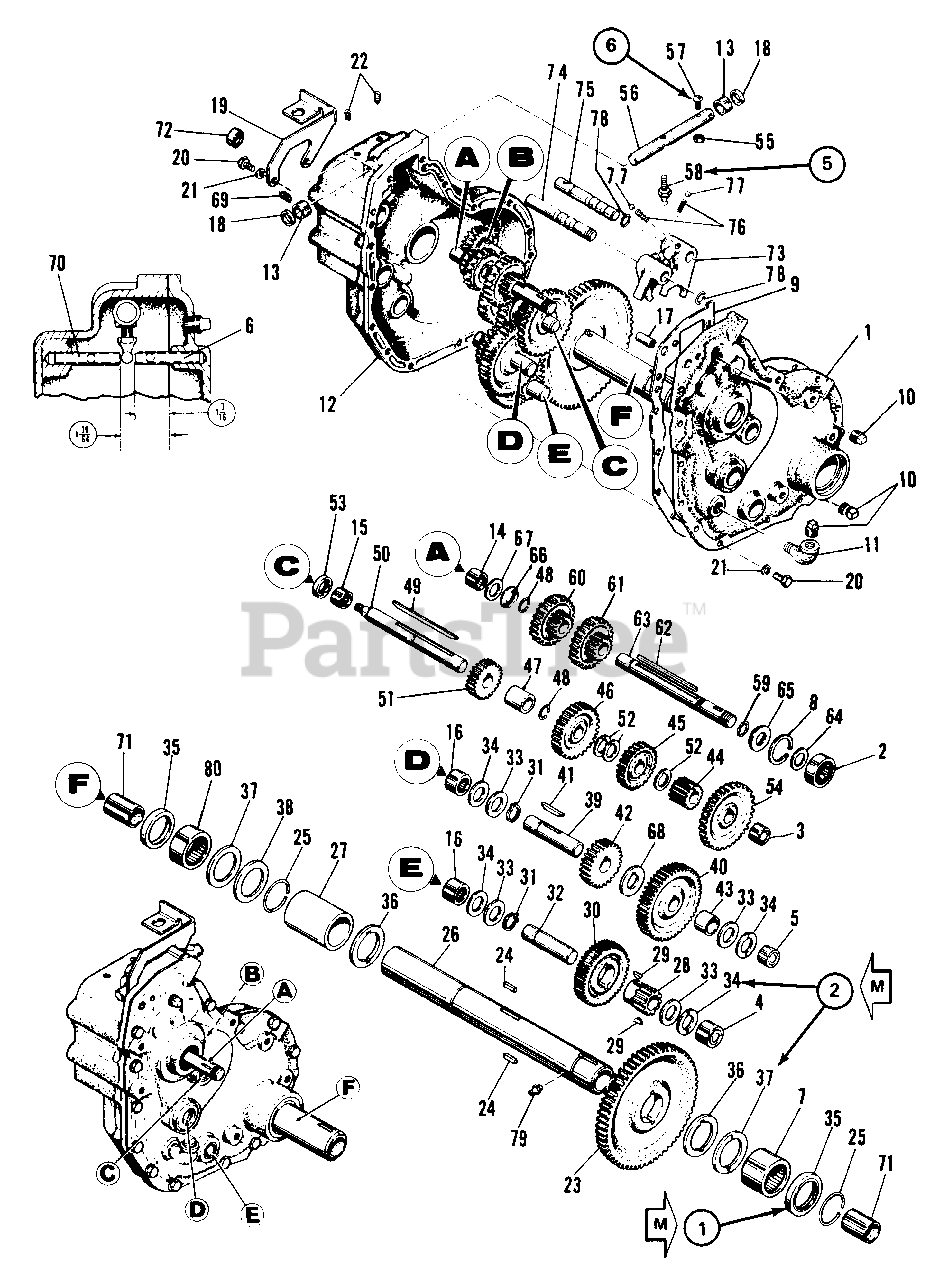

Transmission Group Parts Diagram

  • Title

1

Simplicity 164226

COVER, Gear Case

$

$

Not available

2

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

3

Simplicity 2154257SM

BEARING, Needle

$27.99

$

In Stock, only 1 left!

0

4

Simplicity 154259

BEARING, Needle

$

$

Not available

5

Simplicity 2154271SM

BEARING, Needle

$

$

Not available

6

Simplicity 154537

ROLL PIN ASSEMBLY

$

$

Not available

7

Simplicity 2157520SM

BEARING, Needle

$59.99

$

Usually ships in 2-12 days

0

8

Simplicity 164064

RING, Retaining

$

$

Not available

9

Simplicity 2164234SM

GASKET, Gear Case

$39.99

$

In Stock, only 1 left!

0

10

Simplicity 2801653

PLUG, Pipe, Sq. Hd., 3/8

$

$

Not available

11

Simplicity 2801723

ELBOW, Street

$

$

Not available

12

Simplicity 174582

GEAR CASE ASSEMBLY

$

$

Not available

13

Simplicity 2121084SM

SPACER, Diff.

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 2154257SM

BEARING, Needle

$27.99

$

In Stock, only 1 left!

0

15

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

16

Simplicity 154259

BEARING, Needle

$

$

Not available

17

Simplicity 2818113

PIN, Spring, 3/8x 1

$

$

Not available

18

Simplicity 2157619SM

SEAL, Oil

$20.99

$

In Stock, only 3 left!

0

19

Simplicity 164251

SUPPORT, Switch

$

$

Not available

20

Simplicity 2816431

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 917231

SETSCREW, Soc. Hd., 5/16-18 x 1/2

$

$

Not available

23

Simplicity 154095

GEAR, Drive

$

$

Not available

24

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

25

Simplicity 2154268SM

RING, Snap

$7.49

$

In Stock, only 3 left!

0

26

Simplicity 2164222SM

TUBE & BUSHING ASSEMBLY (Includes Ref. No. 71)

$353.99

$

Usually ships in 2-12 days

0

27

Simplicity 154098

SPACER, Axle Tube

$

$

Not available

28

Simplicity 2154092SM

PINION, 3rd Interm.

$

$

Not available

29

Simplicity 2810224SM

KEY, Woodruff, No. 6

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 164051

GEAR, 3rd Interm.

$

$

Not available

31

Simplicity 154266

RING, Retaining

$

$

Not available

32

Simplicity 154091

SHAFT, 3rd Interm.

$

$

Not available

33

Simplicity 2172978

WASHER

$

$

Not available

34

Simplicity 2172979

WASHER

$

$

Not available

35

Simplicity 2154269SM

SEAL

$

$

Not available

36

Simplicity 2154130SM

WASHER, Axle Tube

$6.49

$

Usually ships in 2-12 days

0

37

Simplicity 2172977

WASHER, Axle Tube

$

$

Not available

38

Simplicity 2154097SM

WASHER, Axle Tube

$

$

Not available

39

Simplicity 154086

SHAFT, 2nd Interm.

$

$

Not available

40

Simplicity 154089

GEAR, 2nd Interm.

$

$

Not available

41

Simplicity 2154267SM

KEY

$

$

Not available

42

Simplicity 164062

PINION, 2nd Interm.

$

$

Not available

43

Simplicity 154090

SPACER

$

$

Not available

44

Simplicity 154079

PINION, 1st Interm.

$

$

Not available

45

Simplicity 2154080SM

PINION, Driver III

$96.99

$

Usually ships in 2-12 days

0

46

Simplicity 154081

GEAR, Driver II

$

$

Not available

47

Simplicity 154082

SPACER

$

$

Not available

48

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

49

Simplicity 2154354SM

KEY

$15.99

$

Usually ships in 2-12 days

0

50

Simplicity 2157290

SHAFT, 1st Interm.

$

$

Not available

51

Simplicity 2174228

PINION, Rev. & IV

$

$

Not available

52

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

53

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

54

Simplicity 154078

GEAR, Driven I

$

$

Not available

55

Simplicity 2820161

NUT, Jam Hex, 5/16-18

$

$

Not available

56

Simplicity 164250

ROD, Shift

$

$

Not available

57

Simplicity 172241

BOLT CARRIAGE, Special

$

$

Not available

58

Simplicity 2172779SM

STEM, Shift

$

$

Not available

59

Simplicity 2118134SM

RING, Retaining

$

$

Not available

60

Simplicity 174234

GEAR ASSY

$

$

Not available

61

Simplicity 2154075

PINION ASSEMBLY I & II

$

$

Not available

62

Simplicity 2164294SM

KEY

$16.99

$

Usually ships in 2-12 days

0

63

Simplicity 2173807SM

SHAFT, Pulley

$91.99

$

Usually ships in 2-12 days

0

64

Simplicity 2108472

WASHER

$

$

Not available

65

Simplicity 154462

WASHER

$

$

Not available

66

Simplicity 172981

WASHER

$

$

Not available

67

Simplicity 2172982SM

WASHER

$37.99

$

Usually ships in 2-12 days

0

68

Simplicity 2154038SM

WASHER

$5.49

$

Usually ships in 2-12 days

0

69

Simplicity 929277

SCREW, Set. 3/8-16 x 3/8

$

$

Not available

70

Simplicity 154538

ROLL PIN ASSY

$

$

Not available

71

Simplicity 1653120SM

BEARING, Needle

$10.99

$

Usually ships in 2-12 days

0

72

Simplicity 174583

PLUG, Expansion

$

$

Not available

73

Simplicity 2154069SM

FORK, Shift

$227.99

$

Usually ships in 2-12 days

0

74

Simplicity 154067

SHAFT, Shifter

$

$

Not available

75

Simplicity 154068

SHAFT, Shifter, Hi-Lo

$

$

Not available

76

Simplicity 2154323SM

SPRING

$30.99

$

Usually ships in 2-12 days

0

77

Simplicity 2805359

BALL, Shiftlock

$

$

Not available

78

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

79

Simplicity 2814687

FITTING, Grease

$

$

Not available

80

Simplicity 2157519SM

BEARING, Needle

$

$

Not available
