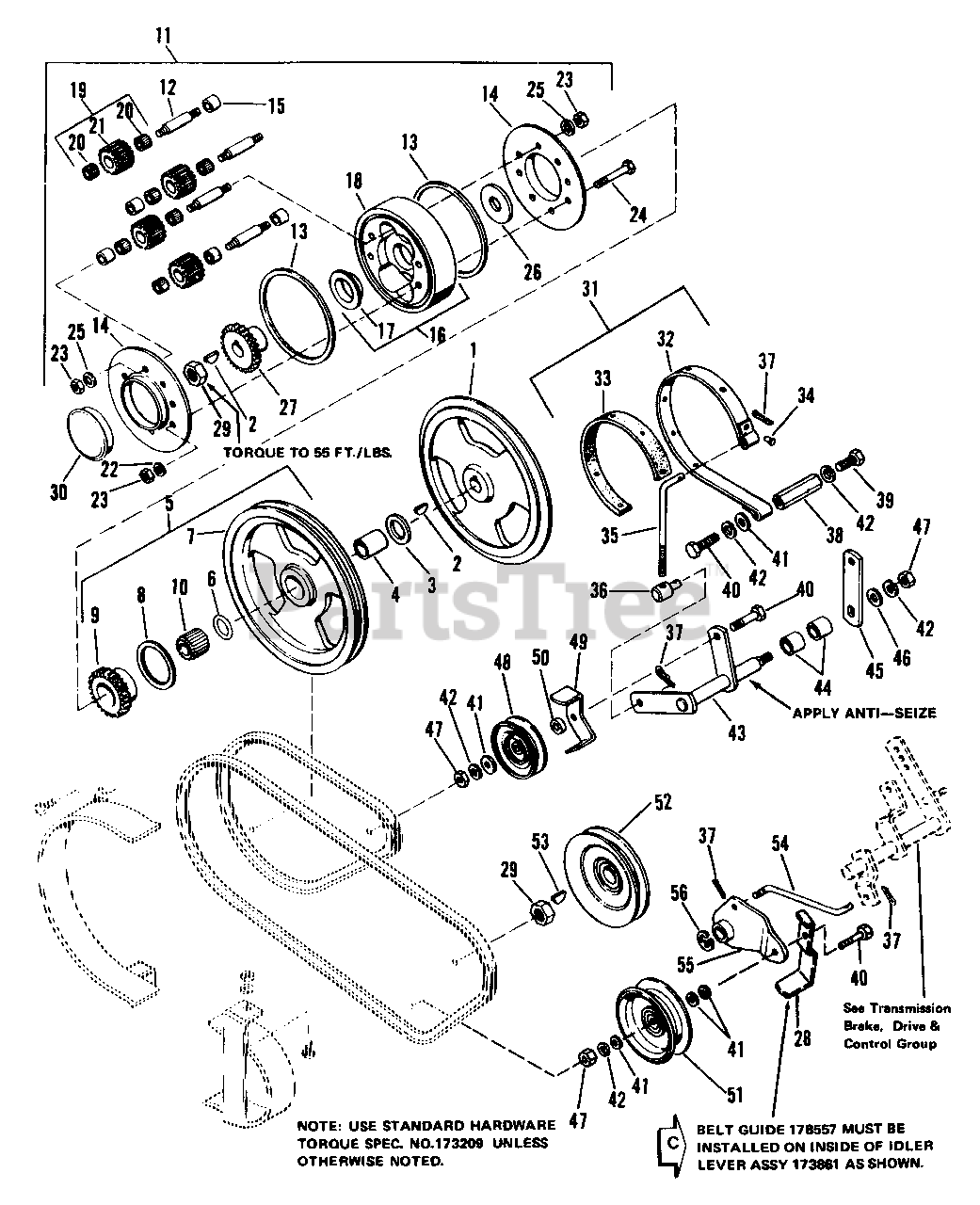

7014 S (1690337) - Simplicity Garden Tractor, 14hp Pulley & Planatary Group Parts Diagram

Garden Tractor, 14hp

Pulley & Planatary Group Parts Diagram

  • Title

1

Simplicity 173793

PULLEY, Half

$

$

Not available

2

Simplicity 2805123SM

KEY, Woodruff, No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

3

Simplicity 2174570SM

BEARING, Thrust

$16.99

$

In Stock, only 1 left!

0

4

Simplicity 2174568SM

RACE, Inner

$

$

Not available

5

Simplicity 176255

PULLEY ASSY

$

$

Not available

6

Simplicity 2118019SM

SEAL

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 173794

PULLEY

$

$

Not available

8

Simplicity 2174981SM

SEAL

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 175712

GEAR, Sun

$

$

Not available

10

Simplicity 2177343

BEARING, Needle

$

$

Not available

11

Simplicity 2176256SM

* PLANETARY ASSY

$

$

Not available

12

Simplicity 2174025SM

PIN, Pinion

$25.99

$

Usually ships in 2-12 days

0

13

Snapper 2174399SM

"O" RING

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 2174404SM

COVER, Differential

$

$

Not available

15

Simplicity 2174569SM

BEARING, Sleave

$

$

Not available

16

Simplicity 2174586

CARRIER SUB-ASSY, Planetary

$

$

Not available

17

Simplicity 2173789SM

BEARING, Flange

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 2174586

CARRIER, Planetary

$

$

Not available

19

Simplicity 2176257

PINION ASSY, Planetary

$

$

Not available

20

Simplicity 2174567SM

BEARING, Needle

$19.99

$

In Stock, only 2 left!

0

21

Simplicity 2175710

PINION, Planetary

$

$

Not available

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 2819354

CAPSCREW, Hex Hd., 5/16-18 x 2

$

$

Not available

25

Simplicity 2823300

LOCKWASHER, Internal, 5/16

$

$

Not available

26

Simplicity 174274

WASHER, Thrust

$

$

Not available

27

Simplicity 175714

GEAR, Sun

$

$

Not available

28

Simplicity 178557

GUIDE, Belt

$

$

Not available

29

Simplicity 2822133

NUT, Hex, Jam, Lock, 3/4-16

$

$

Not available

30

Simplicity 174584

CAP, Hub

$

$

Not available

31

Simplicity 2174381

BRAKE BAND ASSY

$

$

Not available

32

BAND, Brake

$

$

Not available

33

Simplicity 2174383

LINING

$

$

Not available

34

Simplicity 2826021SM

RIVET, No. 7 x 1/4

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 174385

ROD

$

$

Not available

36

Simplicity 108172

PIVOT

$

$

Not available

37

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

38

Simplicity 174386

ANCHOR, Brake

$

$

Not available

39

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

40

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

41

Simplicity 2817642

WASHER, 5/16

$

$

Not available

42

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

43

Simplicity 173864

LEVER ASSY

$

$

Not available

44

Simplicity 2118092SM

BUSHING

$7.99

$

Usually ships in 2-12 days

0

45

Simplicity 174427

LEVER

$

$

Not available

46

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

47

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

48

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

49

Simplicity 174402

GUIDE, Belt

$

$

Not available

50

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

51

Simplicity 2174497

PULLEY, Idler
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

52

Simplicity 2174359SM

PULLEY, Drive

$98.99

$

Usually ships in 2-12 days

0

53

Simplicity 2830670SM

KEY

$2.49

$

Usually ships in 2-12 days

0

54

Simplicity 2164088SM

LINK, Clutch

$

$

Not available

55

Simplicity 2173861SM

LEVER ASSY, Idler
(Superseded to 2173861ASM)

$104.99

$

Usually ships in 2-12 days

0

56

Simplicity 2827793SM

"E" RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 15

0
