7014 S (1690337) - Simplicity Garden Tractor, 14hp Hood & Lights Group Parts Diagram

Garden Tractor, 14hp

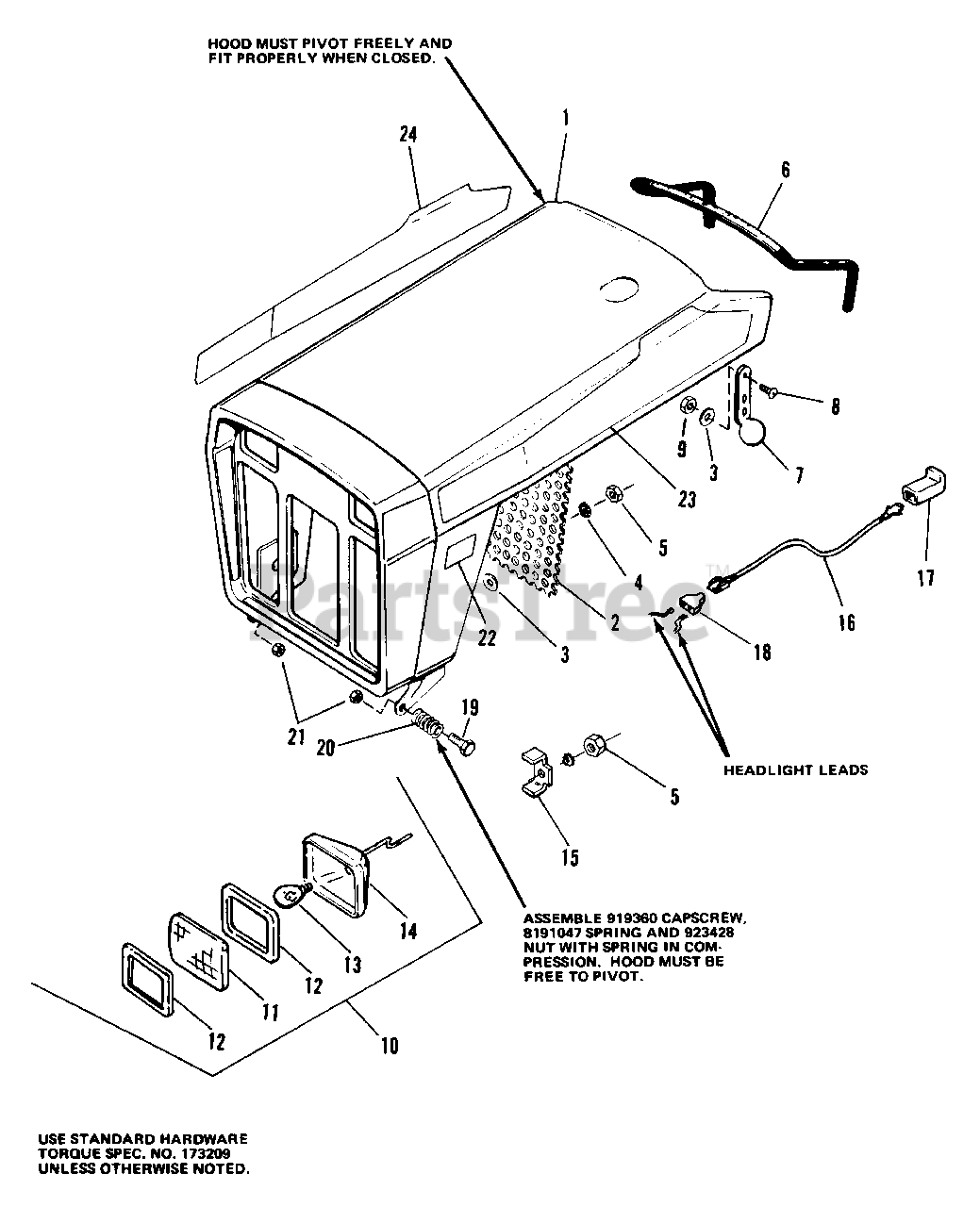

Hood & Lights Group Parts Diagram

  • Title

1

Simplicity 1656400

HOOD & GRILLE ASSEMBLY

$

$

Not available

2

Simplicity 1656587

SCREEN, Grille

$

$

Not available

3

Simplicity 2171804

WASHER, Special

$

$

Not available

4

Simplicity 2822711

LOCKWASHER, Ext. Tooth, No. 10

$

$

Not available

5

Simplicity 2816621

NUT, Hex, Mach., No. 10-24

$

$

Not available

6

Simplicity 2172935

MOULDING, Hood

$

$

Not available

7

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 2830531

SCREW, Truss Hd., No. 10-32 x 1/2

$

$

Not available

9

Simplicity 2830627

LOCKNUT, Hex, No. 10-32

$

$

Not available

10

Simplicity 1665934SM

LIGHT ASSY

$

$

Not available

11

Simplicity 1665933

LENS

$

$

Not available

12

Simplicity 1654662SM

GASKET

$

$

Not available

13

BULB, No. 1293

$

$

Not available

14

Simplicity 1665934SM

SOCKET

$

$

Not available

15

Simplicity 1656881

CLIP

$

$

Not available

16

Simplicity 1657047

WIRE ASSY

$

$

Not available

17

Simplicity 172100

BODY, Connector

$

$

Not available

18

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

19

Simplicity 2821969

CAPSCREW, Hex, Hd., 3/8-16 x 1-1/2

$

$

Not available

20

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

21

Simplicity 1930645SM

NUT, Hex, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1662388

DECAL, 7014 Shuttle

$

$

Not available

23

Simplicity 1657115

DECAL, Hood, Baron, L.H.

$

$

Not available

24

Simplicity 1657114

DECAL, Hood, Baron, R.H.

$

$

Not available
