7014 S (1690337) - Simplicity Garden Tractor, 14hp Engine & Drive Shaft Group Parts Diagram

Garden Tractor, 14hp

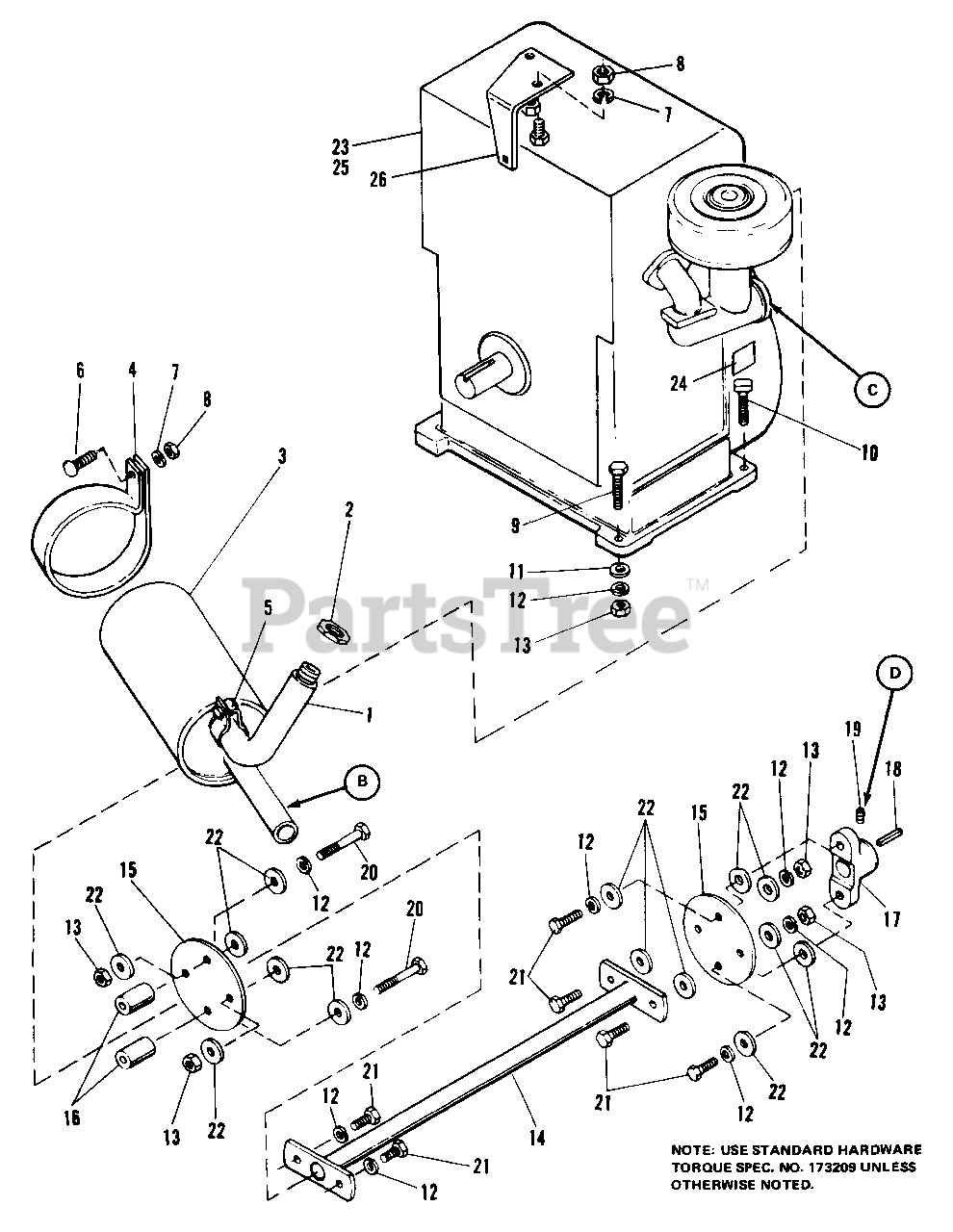

Engine & Drive Shaft Group Parts Diagram

  • Title

1

Simplicity 1656492

ELBOW & NIPPLE ASSY

$

$

Not available

2

Simplicity 2154378SM

LOCKNUT

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 2170456

MUFFLER, Exhaust

$

$

Not available

4

Simplicity 2171880SM

STRAP, Muffler

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$

$

Not available

6

Simplicity 2833689

BOLT, Carriage, 5/16-18 x 1-1/4

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2821969

CAPSCREW, Hex, Hd., 3/8-16 x 1-1/2

$

$

Not available

10

Simplicity 172455

CAPSCREW, Rect. Hd., 3/8-16 x 1-5/16

$

$

Not available

11

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2172328SM

SHAFT ASSY, Drive
(Superseded to 2172328ASM)

$

$

Not available

15

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

16

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

17

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

18

Simplicity 2157427SM

KEY, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

19

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

20

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

21

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

23

ENGINE, 14 H.P., Briggs & Stratton

$

$

Not available

24

Simplicity 172707

FILM, Oil Level Instructions

$

$

Not available

25

Simplicity 2157096

DECAL, Caution

$

$

Not available

26

Simplicity 1666885SM

SUPPORT, Muffler

$

$

Not available
