70131 (13-32) - Toro Rear-Engine Riding Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

Rear-Engine Riding Mower

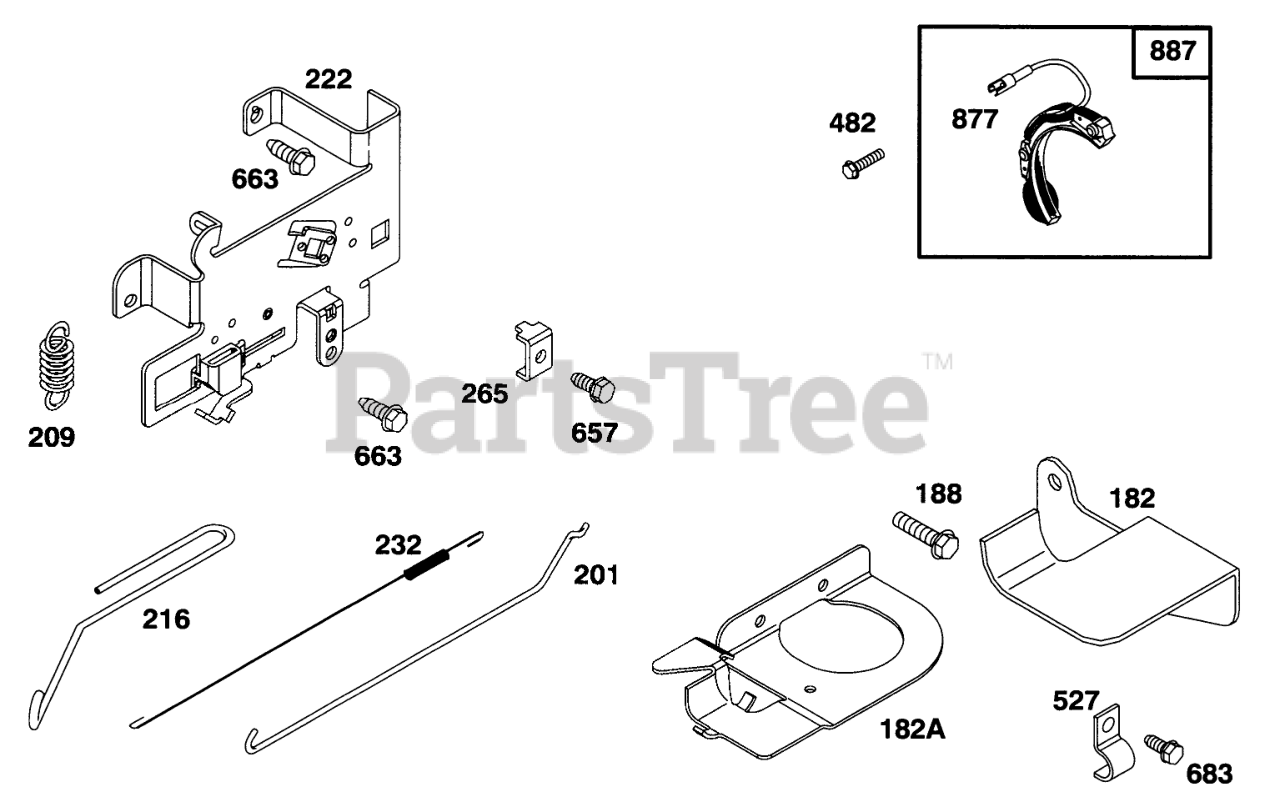

ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

  • Title

121

Briggs & Stratton 495799

Carburetor Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

182

Briggs & Stratton 223925

Bracket Fuel Tank
(Superseded to 690443)

$22.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 223866

Bracket-Fuel Tank
(Superseded to 692535)

$45.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94480

Screw-Sem
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

201

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 260871

Spring-Governor
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 495611

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 12

0

683

Briggs & Stratton 94602

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0
