7013 S (1690232) - Simplicity Garden Tractor, 13hp Transmission Brake, Drive & Control Group Parts Diagram

Garden Tractor, 13hp

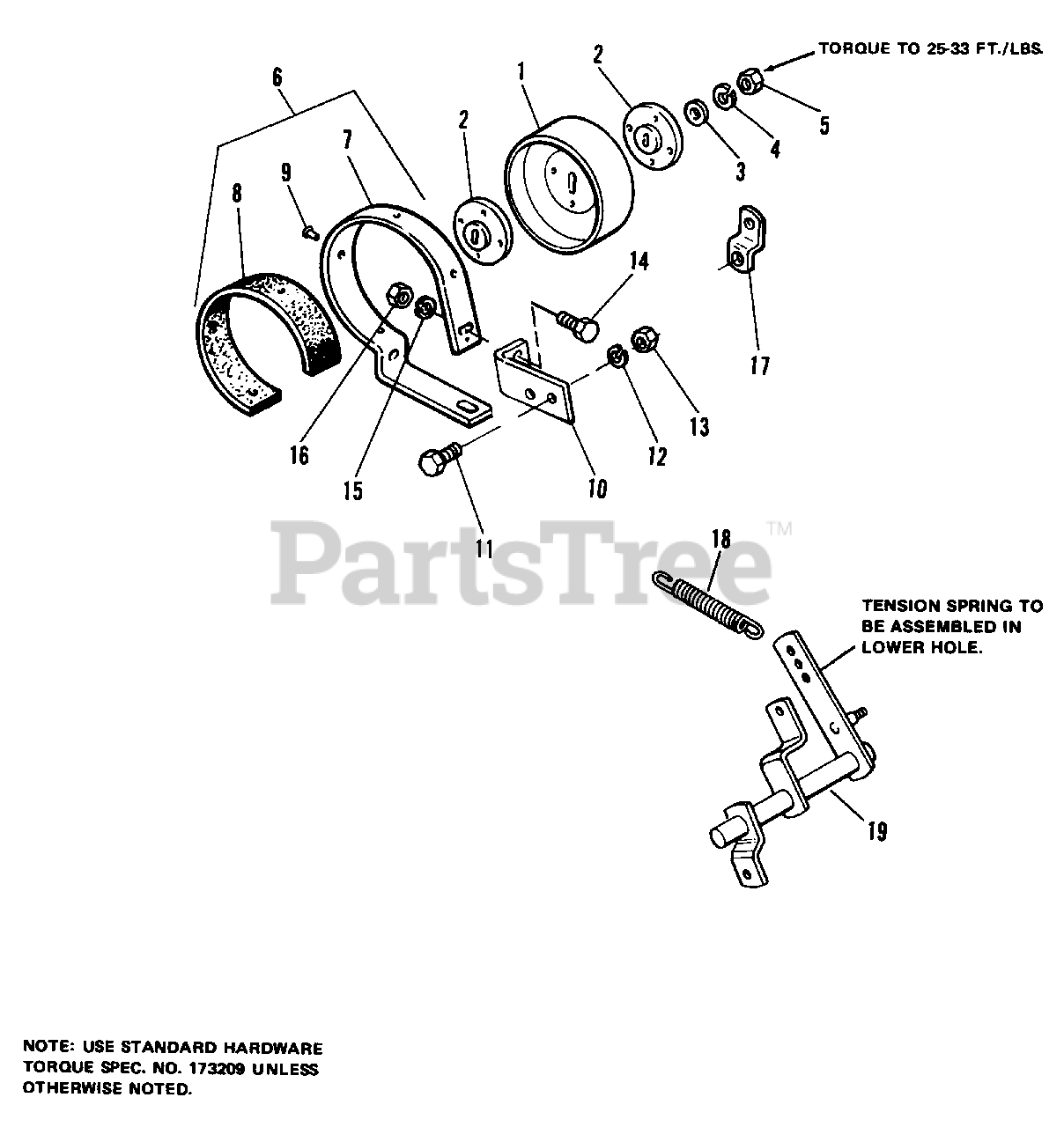

Transmission Brake, Drive & Control Group Parts Diagram

  • Title

1

Simplicity 2157282

DRUM, Brake

$

$

Not available

2

Simplicity 2158196SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

5

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

6

Simplicity 2171497

BAND ASSY, Brake

$

$

Not available

7

BAND, Brake

$

$

Not available

8

Simplicity 2154133

LINING, Brake

$

$

Not available

9

Simplicity 907166

RIVET, Tubular

$

$

Not available

10

Simplicity 164133

BRACKET, Brake Band

$

$

Not available

11

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 174893

CLIP, Spring

$

$

Not available

18

Simplicity 2174896SM

SPRING

$20.99

$

In Stock, only 1 left!

0

19

Simplicity 172724

LEVER ASSY, Pivot

$

$

Not available
