7013 S (1690232) - Simplicity Garden Tractor, 13hp 48" Cover, Drive & Bail Group Parts Diagram

Garden Tractor, 13hp

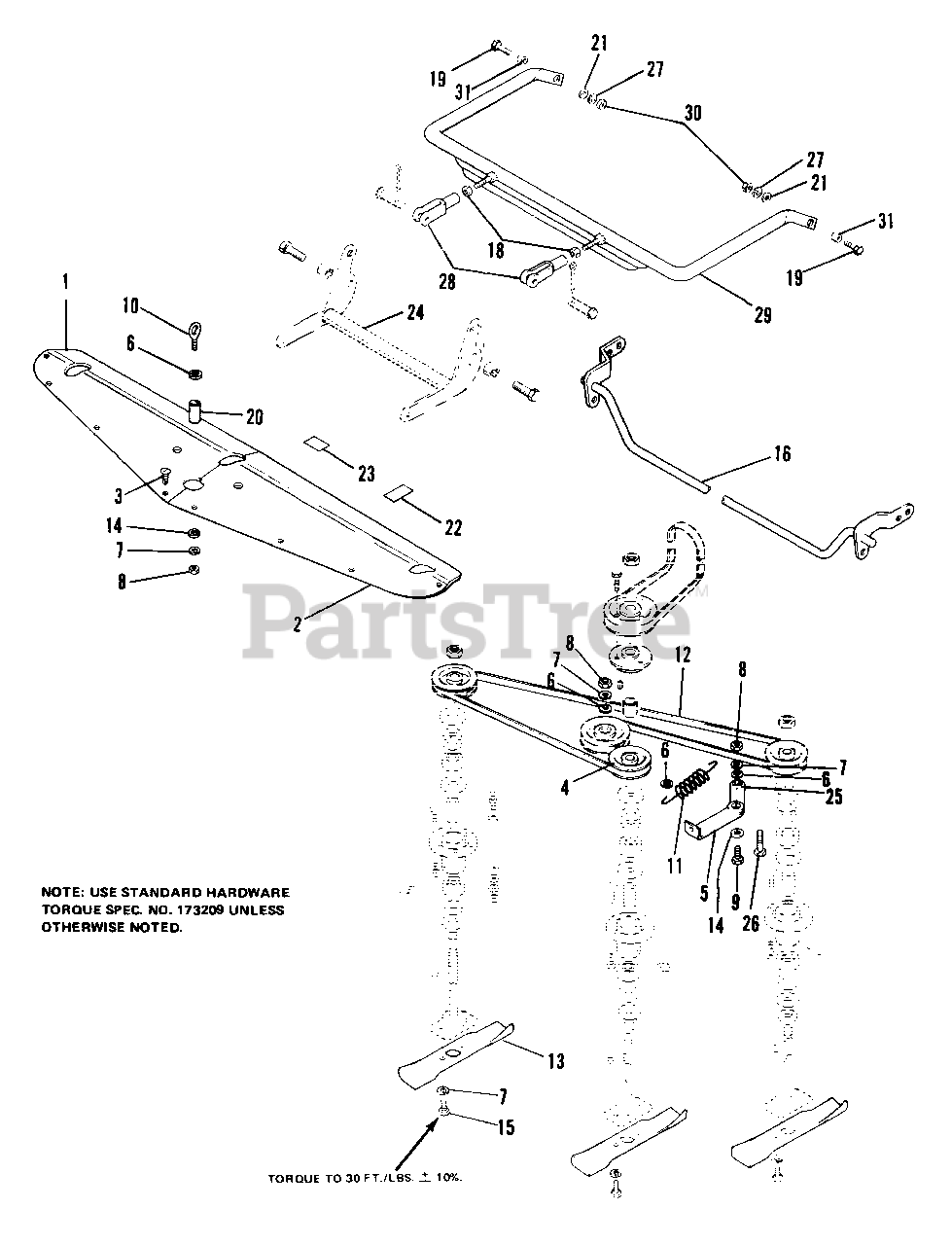

48" Cover, Drive & Bail Group Parts Diagram

  • Title
1

Simplicity 2172076

COVER, R.H.

$

$

Not available

2

Simplicity 2172354

COVER, L.H.

$

$

Not available

3

Simplicity 2829000

SCREW, Hex,Taptite, 1/4-20 x 3/8

$

$

Not available

4

Simplicity 2164268

PULLEY, Idler

$

$

Not available

5

Simplicity 2108473SM

LEVER ASSY, Idler

$

$

Not available

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

8

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

$

$

Not available

$54.99

$

In Stock, only 1 left!

0

11

Simplicity 2108449SM

SPRING Tension

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 2108450

BELT, "V", Mower Drive

$

$

Not available

13

Simplicity 2108448

BLADE, Knife

$

$

Not available

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 2822586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

16

Simplicity 2172015ASM

ARM ASSY, Rocker

$116.99

$

Usually ships in 2-12 days

0

18

Simplicity 2819262

NUT, Hex, Jam, 1/2-20

$

$

Not available

19

Simplicity 2821176

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$

$

Not available

20

$

$

Not available

21

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

22

Simplicity 1704277SM

FILM, Safety
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

23

Simplicity 2174845

FILM, Belt Installation

$

$

Not available

24

Simplicity 2108794

ARM ASSY, Rocker

Note: FOR SERVICE SEE DEFLECTOR, STONE GUARD & ROCKER ARM GROUP

$

$

Not available

25

Simplicity 1729274SM

RACE, Inner

$

$

Not available

26

Simplicity 2821971

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$

$

Not available

27

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

28

Simplicity 2154304SM

YOKE, End Adj.

$67.99

$

Usually ships in 2-12 days

0

29

$201.99

$

Usually ships in 2-12 days

0

30

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

31

$

$

Not available
