7013 S (1690232) - Simplicity Garden Tractor, 13hp 42" Deflector, Stone Guard & Rocker Arm Group Parts Diagram

Garden Tractor, 13hp

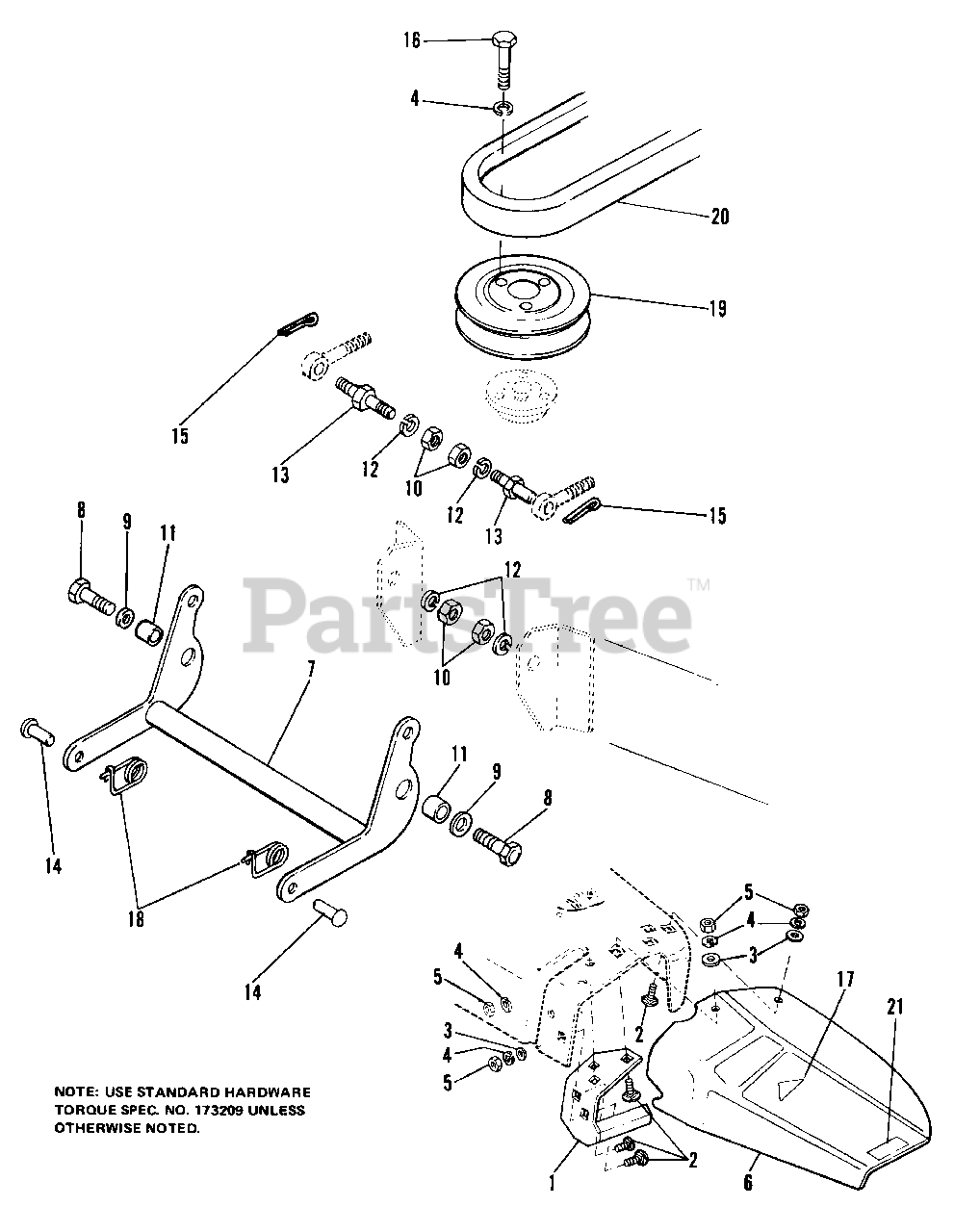

42" Deflector, Stone Guard & Rocker Arm Group Parts Diagram

  • Title

1

Simplicity 2174167SM

GUARD ASSY, Stone

$

$

Not available

2

Simplicity 2822109

CARRIAGE Bolt 3/8-16 x 1-1/4

$

$

Not available

3

Simplicity 2824356

WASHER, Special

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER. 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2816950SM

NUT, Hex Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 6

0

6

Simplicity 1651177SM

DEFLECTOR
(Superseded to 1651177ASM)

$

$

Not available

7

Simplicity 2172468A

ROCKER ARM ASSY
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

8

Simplicity 2821176

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$

$

Not available

9

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

10

Simplicity 2816951

NUT, Hex Full, 1/2-13

$

$

Not available

11

Simplicity 2105051

SPACER

$

$

Not available

12

Simplicity 2816966

LOCKWASHER. 1/2

$

$

Not available

13

Simplicity 1651516SM

PIN, Pivot

$21.99

$

Usually ships in 2-12 days

0

14

Simplicity 2118053SM

PlN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

15

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

16

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

17

DECAL, OPEI

$

$

Not available

18

Simplicity 2176012SM

CLIP, Safety Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2174189SM

PULLEY

$113.99

$

Usually ships in 2-12 days

0

20

Simplicity 2176439SM

"V" BELT, PTO

$34.99

$

Usually ships in 2-12 days

0

21

Simplicity 176719

DECAL, Danger

$

$

Not available
