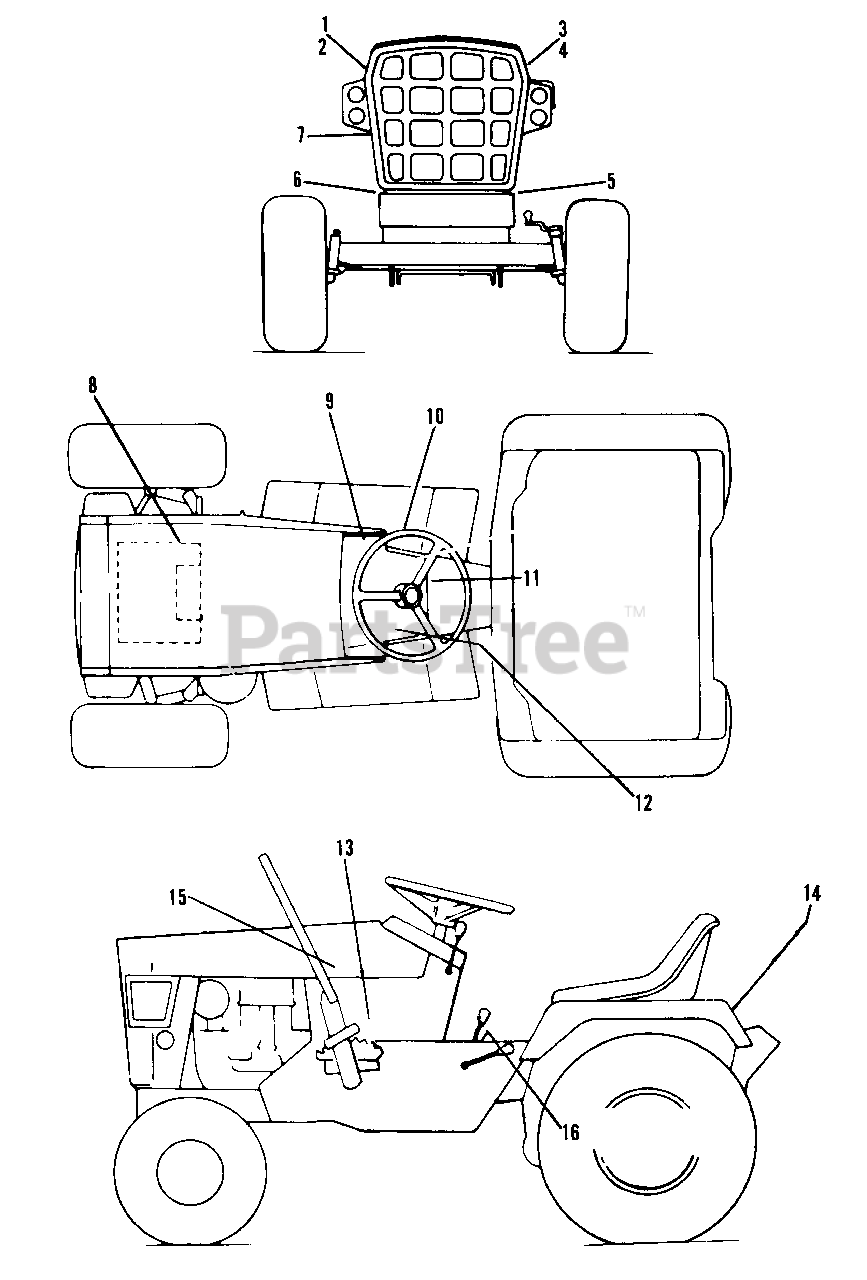

7013 H (1690184) - Simplicity Baron Lawn Tractor, 13hp Decals Parts Diagram

Baron Lawn Tractor, 13hp

Decals Parts Diagram

  • Title
1

Simplicity 1651799

DECAL, Hood, L.H.

$

$

Not available

2

Simplicity 1651897

DECAL, L.H.

$

$

Not available

3

Simplicity 1651800

DECAL, Hood, R.H.

$

$

Not available

4

Simplicity 1651898

DECAL, R.H.

$

$

Not available

5

Simplicity 172816

DECAL, Brake

$

$

Not available

6

Simplicity 174954

DECAL, Clutch

$

$

Not available

7

Simplicity 2176823

DECAL, Safety

$

$

Not available

8

Simplicity 172707

DECAL, Oil Level Inst.

$

$

Not available

9

Simplicity 1651101

DECAL, Instrument Panel

$

$

Not available

10

Simplicity 174887

DECAL, Forward & Reverse

$

$

Not available

11

Simplicity 174885

DECAL, Ignition

$

$

Not available

12

Simplicity 172219

DECAL, Throttle

$

$

Not available

13

Simplicity 175216

DECAL, Lift Lever

$

$

Not available

14

Simplicity 1651636

DECAL, Rear Seat Deck

$

$

Not available

15

Simplicity 172277

DECAL, Battery

$

$

Not available

16

Simplicity 176821

DECAL, Shift Pattern

$

$

Not available
