7013 H (1690184) - Simplicity Baron Lawn Tractor, 13hp 7016H REAR LIFT AND DRAW BAR Parts Diagram

Baron Lawn Tractor, 13hp

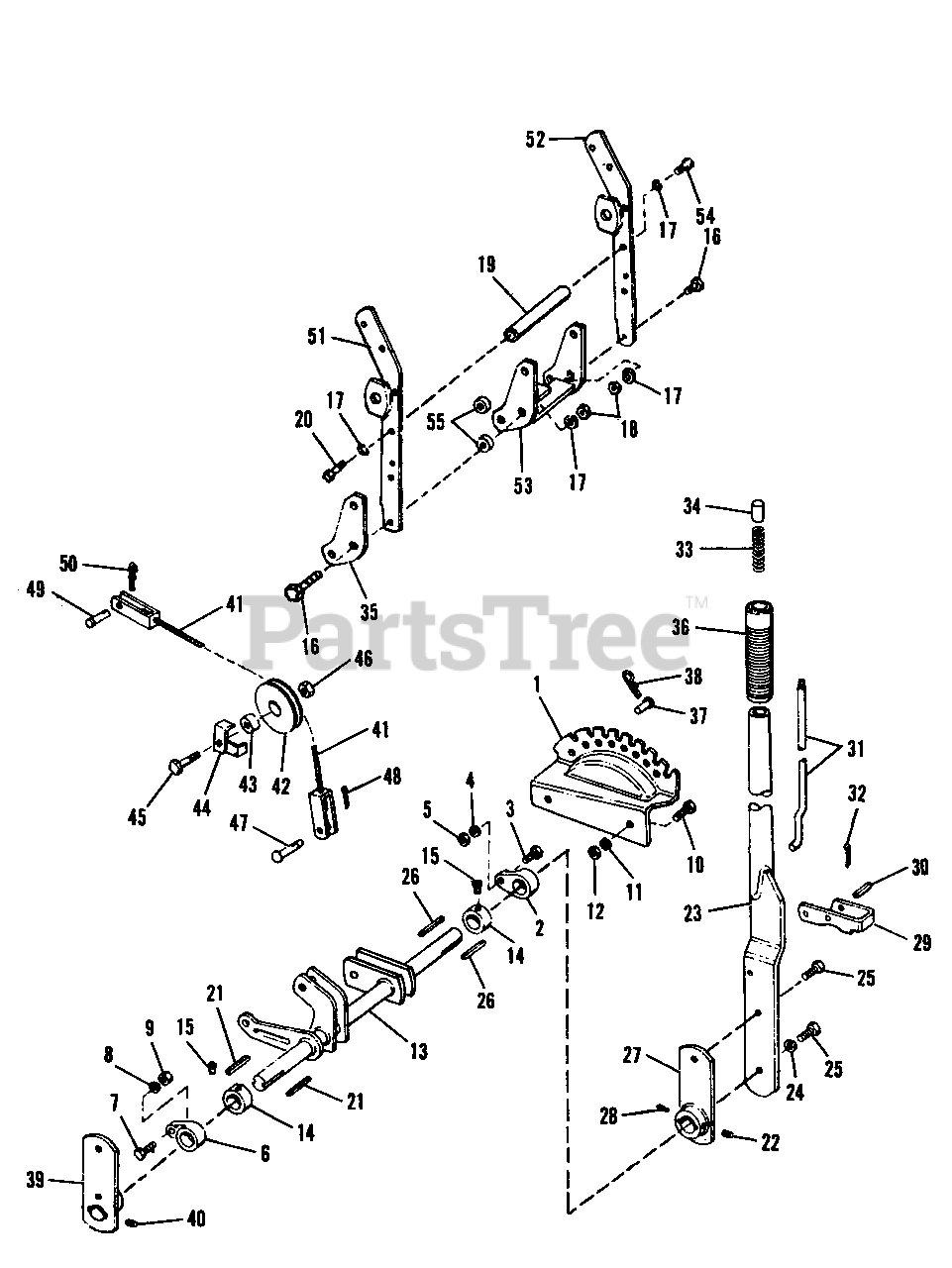

7016H REAR LIFT AND DRAW BAR Parts Diagram

  • Title

1

Simplicity 171599

QUADRANT, Lift Lever

$

$

Not available

2

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

3

Simplicity 2821977

CAPSCREW, Hex, 5/16"-18 x 1-1/4" lg.

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

7

Simplicity 2821977

CAPSCREW, Hex, 5/16"-18 x 1-1/4" lg.

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2808127

CAPSCREW, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

11

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 174111

SHAFT ASSEMBLY, Lift

$

$

Not available

14

Simplicity 2157624

COLLAR

$

$

Not available

15

Simplicity 2828709

SCREW, Set, 5/16"-18 x 3/8" lg.

$

$

Not available

16

Simplicity 923298

CAPSCREW, Hex, 7/16"-14 x 2-3/4" lg.

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

18

Simplicity 2818213

NUT, Hex, Full, 7/16"-14

$

$

Not available

19

Simplicity 2166110SM

SPACER

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 2816609

CAPSCREW, Hex, 7/16"-14 x 1-3/4" lg.

$

$

Not available

21

Simplicity 2157652

KEY

$

$

Not available

22

Simplicity 2828734

SCREW, Set, 5/16"-18 x 1/4" lg.

$

$

Not available

23

Simplicity 1651389

LEVER ASSEMBLY, Lift

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 2822763

CAPSCREW, Hex, 3/8"-16 x 1

$

$

Not available

26

Simplicity 2157625SM

KEY

$233.99

$

Usually ships in 2-12 days

0

27

Simplicity 171593

LEVER ASSEMBLY, Lift

$

$

Not available

28

Simplicity 2828734

SCREW, Set. 5/16"-18 x 1/4" lg.

$

$

Not available

29

Simplicity 173039

LATCH, Lift Lever

$

$

Not available

30

Simplicity 918390

PIN, Roll, 3/8" x 1-1/4" lg.

$

$

Not available

31

Simplicity 1651197

ROD, Latch

$

$

Not available

32

Simplicity 2818447

PIN, Cotter, 3/32" x 3/4" lg.

$

$

Not available

33

Simplicity 1650155SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 1650157SM

BUTTON, Thumb

$7.49

$

In Stock, only 1 left!

0

35

Simplicity 2166075SM

PLATE, Drain

$

$

Not available

36

Simplicity 2156209

GRIP, Handle
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

37

Simplicity 1708298SM

PIN

$

$

Not available

38

Simplicity 1918196SM

CUP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 2157625SM

LEVER ASSEMBLY, Front Lift

$233.99

$

Usually ships in 2-12 days

0

40

Simplicity 2828734

SCREW, Set, 5/16"-18 x 1/4" lg.

$

$

Not available

41

Simplicity 2174085SM

CABLE ASSEMBLY, Lift

$

$

Not available

42

Simplicity 2172725SM

PULLEY

$48.99

$

In Stock, only 1 left!

0

43

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

44

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

45

Simplicity 2108418

SCREW

$

$

Not available

46

Simplicity 2828731

NUT, Hex, Lock, Jam, 3/8"-16

$

$

Not available

47

Simplicity 1729019SM

PIN
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

48

Simplicity 2816241

PIN, Cotter, 3/32" x 7/8" lg.

$

$

Not available

49

Simplicity 1708298SM

PIN

$

$

Not available

50

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

51

Simplicity 2166206SM

BAR ASSEMBLY, Upright

$63.99

$

Usually ships in 2-12 days

0

52

Simplicity 2166072SM

BAR ASSEMBLY, Upright

$66.99

$

Usually ships in 2-12 days

0

53

Simplicity 2166074SM

BAR ASSEMBLY, Draw

$86.99

$

Usually ships in 2-12 days

0

54

Simplicity 2816432

CAPSCREW, Hex, 7/16"-14 x 1-1/4" lg.

$

$

Not available

55

Simplicity 1608759SM

SPACER

$6.49

$

Usually ships in 2-12 days

0
