7013 (1690015) - Simplicity Baron Lawn Tractor, 13hp Frame & Footrest Group Parts Diagram

Baron Lawn Tractor, 13hp

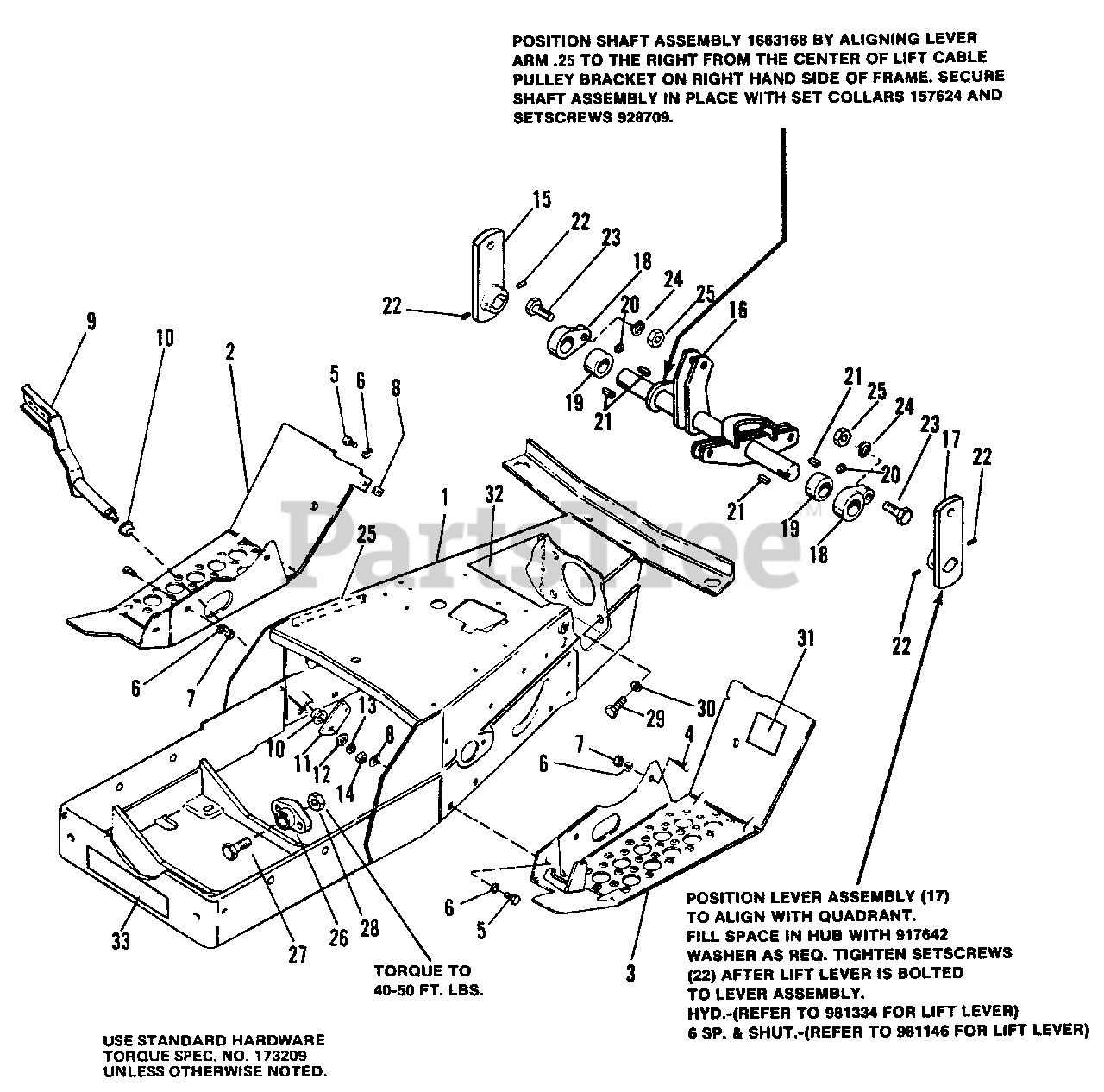

Frame & Footrest Group Parts Diagram

  • Title

1

Simplicity 1654933

REAR FRAME ASSEMBLY

$

$

Not available

2

Simplicity 171271

FOOT REST, R.H.

$

$

Not available

3

Simplicity 176628

FOOT REST, L.H.

$

$

Not available

4

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

5

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2820470

NUT, Speed, Tinn., 5/16-18

$

$

Not available

9

Simplicity 1674137SM

FOOT PEDAL ASSEMBLY

$

$

Not available

10

Simplicity 2108419

BUSHING

$

$

Not available

11

Simplicity 2157300SM

ARM, Pedal Foot

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2157625SM

FRONT LIFT LEVER ASSEMBLY

$233.99

$

Usually ships in 2-12 days

0

16

Simplicity 1663168

LIFT SHAFT ASSEMBLY

$

$

Not available

17

Simplicity 171593

LIFT LEVER ASSEMBLY

$

$

Not available

18

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

19

Simplicity 2157624

SET, Collar

$

$

Not available

20

Simplicity 2828709

SETSCREW, Cup Pt., 5/16-18 x 3/8

$

$

Not available

21

Simplicity 2157652

KEY

$

$

Not available

22

Simplicity 2828734

SETSCREW, Soc. Hd., 5/16-18 x 1/4

$

$

Not available

23

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 174954

DECAL, Clutch

$

$

Not available

26

Simplicity 1653876SM

BEARING, Pivot

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 2828727

CAPSCREW, Whiz, 3/8-16 x 1-1/4

$

$

Not available

28

Simplicity 2828352

NUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 2821212

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

30

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

31

Simplicity 1655727

DECAL, Parking Brake

$

$

Not available

32

Simplicity 176821

DECAL, Shift Pattern

$

$

Not available

33

Simplicity 2153166

DECAL, Simplicity

$

$

Not available
