70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) DECK SUSPENSION ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

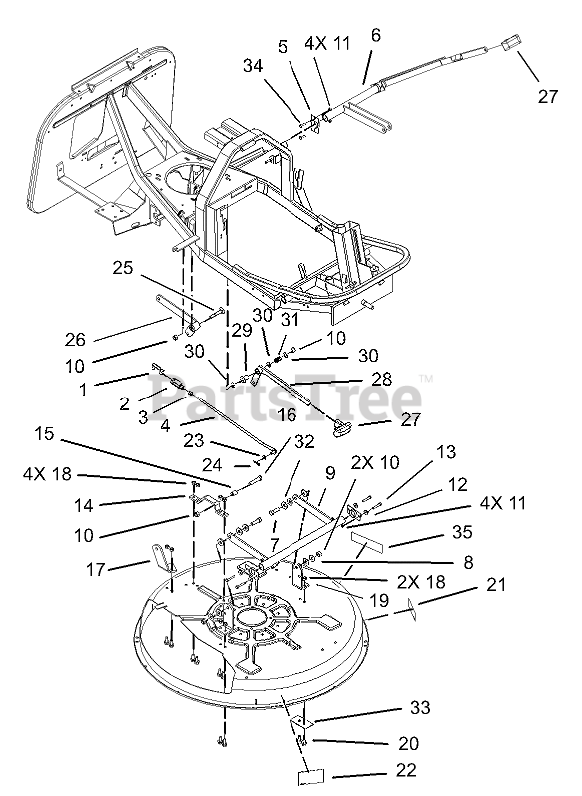

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 106-1809

Retainer-Yoke

$

$

Not available

2

$

$

Currently unavailable

3

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

4

Toro 106-2937

Rod-Tie

$

$

Not available

5

Toro 106-2880

Bracket-Support

$

$

Currently unavailable

6

Toro 106-2966

Lever-Lift

$

$

Currently unavailable

7

Toro 33115-035

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

8

Toro 106-6511

Washer-Flat

$

$

Currently unavailable

9

Toro 106-1829

Hanger Deck ASM

$

$

Currently unavailable

10

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

11

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 106-2865

Washer-Flat

$

$

Currently unavailable

13

Toro 33113-035

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 106-2895

Bracket-Deck

$

$

Currently unavailable

15

Toro 106-2912

Bushing

$

$

Currently unavailable

16

Toro 33115-050

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

17

Toro 106-2894

Bracket-Deck

$

$

Currently unavailable

18

Toro 46-0330

NUT-LOCK

$

$

Not available

19

Toro 106-2896

Bracket-Deck

$

$

Currently unavailable

20

Toro 33104-020

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

21

Decal-Caution

Note: Not serviced separately

$

$

Not available

22

Decal-Discharge Cover

Note: Not serviced separately

$

$

Not available

23

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

24

Toro 106-2879

Pin-Hair

$

$

Not available

25

Toro 106-2882

Screw-CARR

$

$

Currently unavailable

26

Toro 106-1830

Hanger Deck ASM

$

$

Currently unavailable

27

Toro 106-2967

Handle

$

$

Not available

28

Toro 106-2954

LEVER-BLADE, CLUTCH

$

$

Not available

29

Toro 106-2955

Bushing

$

$

Not available

30

$

$

Currently unavailable

31

Toro 106-2950

Spring-Compression

$

$

Currently unavailable

32

Toro 106-1806

Washer

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

35

Toro 106-6406

DECAL-RECYCLER

$

$

Not available
