70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) BODY AND DECAL ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

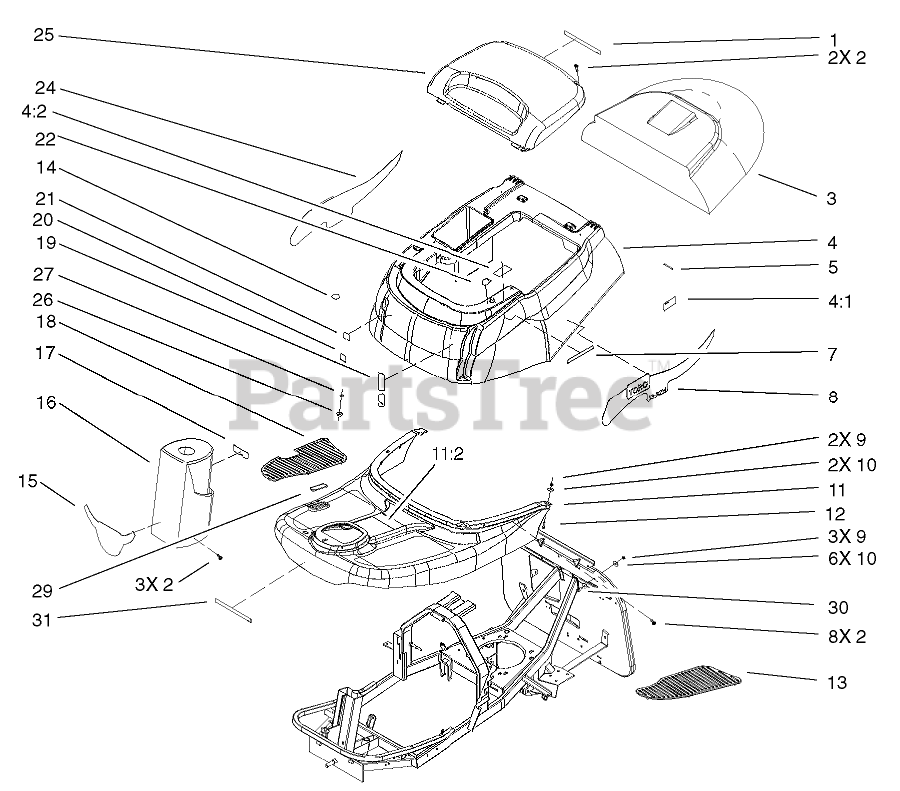

BODY AND DECAL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0537

DECAL-LOGO, WHEELHORSE

$

$

Not available

2

Toro 106-2851

Screw-HH, TAP

$

$

Currently unavailable

3

Toro 106-1810

COVER-GRASS BAG

$

$

Currently unavailable

4

Toro 106-2885

Shroud And Decal ASM

$

$

Not available

4:1

Decal-Danger

Note: Not serviced separately

$

$

Not available

4:2

Decal-Warning, Hot

Note: Not serviced separately

$

$

Not available

5

Toro 106-2870

Pin-Dowel

$

$

Currently unavailable

7

Decal-Shift

Note: Not serviced separately

$

$

Not available

8

Toro 106-1800

DECAL-SHROUD
(Superseded to 106-6500)

$

$

Not available

9

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 106-2853

Washer-Flat

$

$

Not available

11

Toro 106-2901

FOOT REST AND DECAL ASM

$

$

Currently unavailable

11:2

Decal-Caution

Note: Not serviced separately

$

$

Not available

12

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

13

Toro 106-2973

Floormat-LH

$

$

Currently unavailable

14

Decal-Clutch,Int-l Rer

Note: Not serviced separately

$

$

Not available

15

Toro 105-0528

DECAL-STEERING COLUMN
(Superseded to 106-6517)

$

$

Not available

16

Toro 106-2906

Steering-Turret

$

$

Currently unavailable

17

Decal-Run Lights

Note: Not serviced separately

$

$

Not available

18

Toro 106-2972

Floormat-RH

$

$

Currently unavailable

19

Decal-HOC

Note: Not serviced separately

$

$

Not available

20

Decal-PTO, Disengage

Note: Not serviced separately

$

$

Not available

21

Decal-PTO, Engage

Note: Not serviced separately

$

$

Not available

22

Decal-Nmir

Note: Not serviced separately

$

$

Not available

24

Toro 106-1801

DECAL-SHROUD, LH

$

$

Not available

25

Toro 106-2860

Cover-Engine

$

$

Currently unavailable

26

Toro 106-2854

Washer-Flat

$

$

Currently unavailable

27

Toro 46-0330

NUT-LOCK

$

$

Not available

29

Toro 106-2987

Cover

$

$

Currently unavailable

30

Toro 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 106-6509

Decal-Toro Intl Rer
(Superseded to 106-6525)

$

$

Not available

Toro 106-2887

DECAL KIT

Note: Not illustrated

$

$

Not available
