70125 (13-32 G) - Toro Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

Rear-Engine Riding Mower

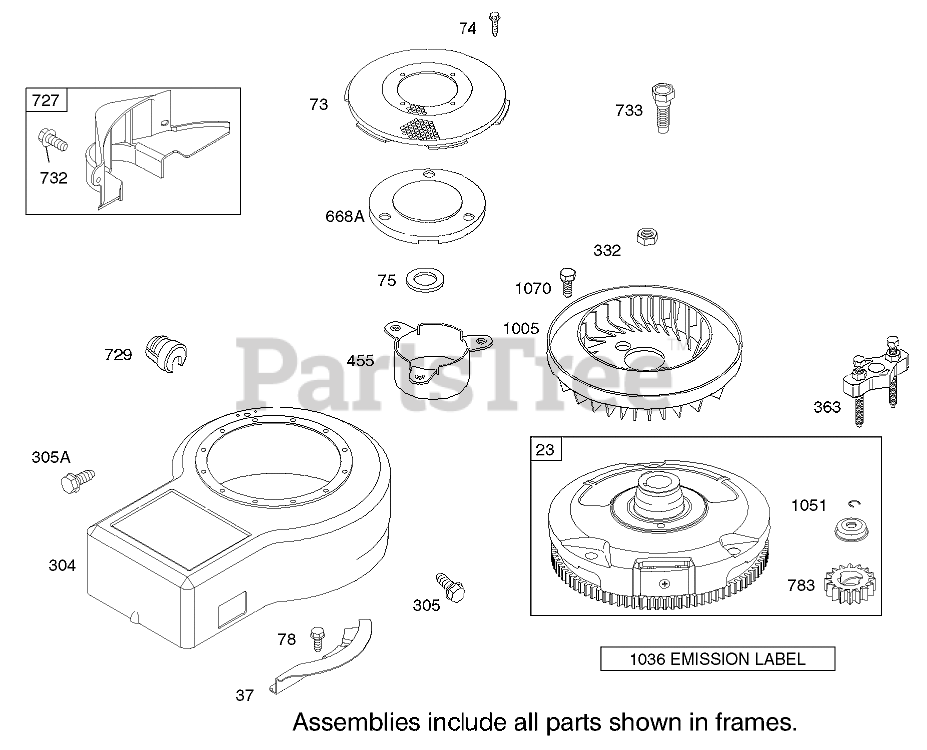

BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28M707-1127-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

37

Briggs & Stratton 690456

Flywheel Guard

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 690492

Screen-Rotating

$13.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 691655

Screw (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer-Flywheel

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 690661

Screw

$3.49

$

In Stock, Qty 9

0

304

Briggs & Stratton 690847

Housing-Blower

$155.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 692127

Screw (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

332

Briggs & Stratton 691029

Nut

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 691173

Flywheel Cup

$37.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 691323

Spacer

$4.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 690596

Wire Clip

$

$

Not available

732

Briggs & Stratton 691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

733

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 695056

Fan-Flywheel
(Superseded to 796201)

$29.99

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 696770

Label-Emission

$10.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0
