70122 (8-25) - Toro Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) FRONT BODY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

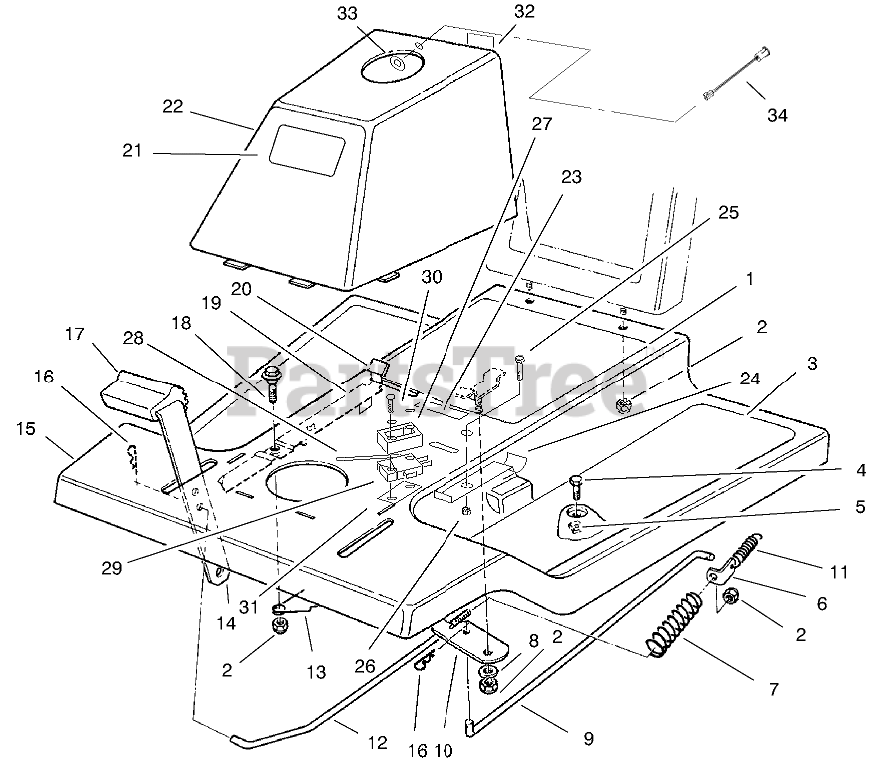

FRONT BODY ASSEMBLY Parts Diagram

  • Title
1

Toro 93-7006

DECAL - INSTRUCTION

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 44-7030

TREAD-FOOT

$

$

Not available

4

Toro 32104-110

SCREW-HH

$

$

Not available

5

Toro 3290-347

NUT-TINNERMAN

$

$

Not available

6

Toro 67-1590

BRACKET-BRAKE RETURN

$

$

Not available

7

Toro 67-1430

SPRING-TRACTION BRAKE

$

$

Not available

8

Toro 26-9530

WASHER-PIVOT

$9.49

$

Usually ships in 3-6 days

0

9

Toro 67-1340

ROD-TRANS BRAKE

$

$

Not available

10

Toro 67-1330-03

LEVER-BRAKE

$

$

Not available

11

Toro 67-1450

SPRING-IDLER

$25.99

$

Usually ships in 3-6 days

0

12

Toro 67-1350

ROD-FRONT BRAKE

$

$

Not available

13

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

14

Toro 67-1130-01

Pedal-Brake & Clutch

$

$

Currently unavailable

15

Toro 98-2387-01

FRONT BODY WA (RED)

$

$

Not available

16

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 65-2920

PAD-PEDAL

$40.99

$

Usually ships in 3-6 days

0

18

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

19

Toro 98-0711-03

BRAKE-PARKING

$

$

Not available

20

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

21

Toro 92-7981

DECAL

$6.99

$

Usually ships in 3-6 days

0

22

Toro 99-2968

Tower (Incl. Ref. #21)

$

$

Not available

23

Toro 93-7011

DECAL - PARKING BRAKE

$

$

Not available

24

Toro 98-0709

CLAMP - HARNESS

$

$

Not available

25

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

26

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

27

Toro 88-4880

SPACER

$

$

Not available

28

Toro 88-9932

SWITCH-MICRO

$37.99

$

In Stock, only 1 left!

0

29

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

30

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.99

$

Usually ships in 3-6 days

0

31

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

32

Toro 99-2982

DECAL-INDICATOR LIGHT, INTL

$

$

Not available

33

Toro 99-6059

CLIP-RETAINER
(Superseded to 32151-80)

$1.99

$

In Stock, Qty 7

0

34

Toro 95-7652

LIGHT-INDICATOR

$49.99

$

Usually ships in 3-6 days

0
