70122 (8-25) - Toro Rear-Engine Riding Mower (SN: 200000001 - 200999999) (2000) FRONT AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

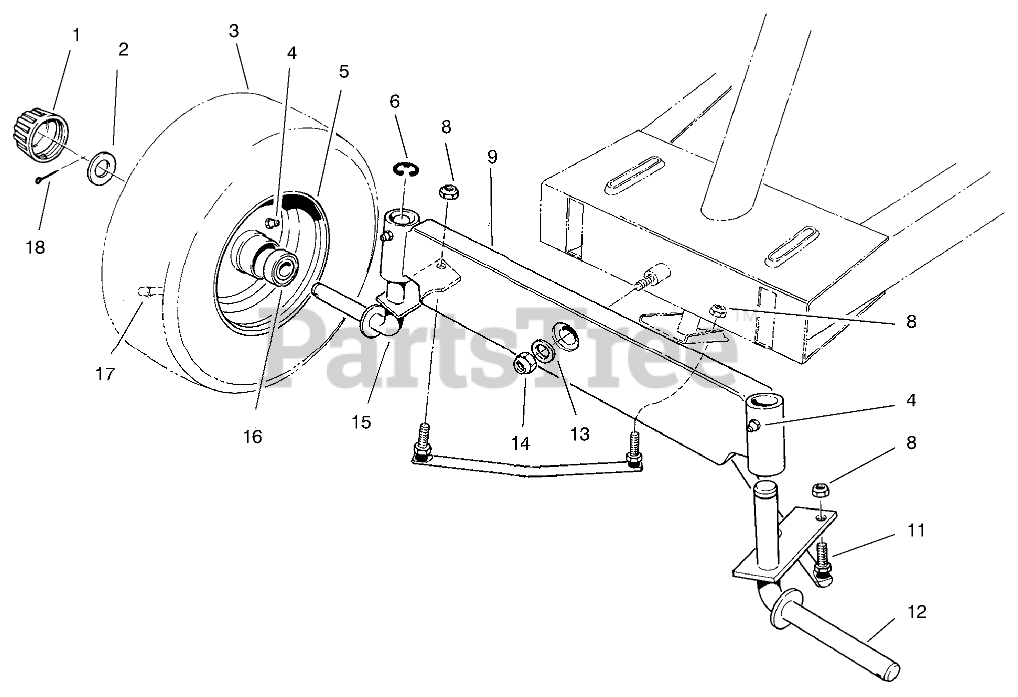

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

2

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

3

Toro 99-2990

TIRE

$

$

Not available

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 217-80

RIM

$218.99

$

Usually ships in 3-6 days

0

6

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

8

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

9

Toro 67-0990-01

AXLE

$

$

Not available

11

Toro 67-0880

TIE ROD ASM

$91.99

$

Usually ships in 3-6 days

0

12

Toro 67-0810-01

WHEEL SPDLE WA LH (RED)
(Superseded to 67-0810-03)

$60.99

$

In Stock, only 1 left!

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

15

Toro 67-0800-01

WHEEL SPDLE WA RH (RED)
(Superseded to 67-0800-03)

$

$

Not available

16

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 2 left!

0

17

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

18

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

Toro 232-44

TUBE

Note: Not illustrated

$

$

Not available
