70122 (8-25) - Toro Rear-Engine Riding Mower (SN: 099000001 - 099999999) (1999) TRANSMISSION & LINKAGE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

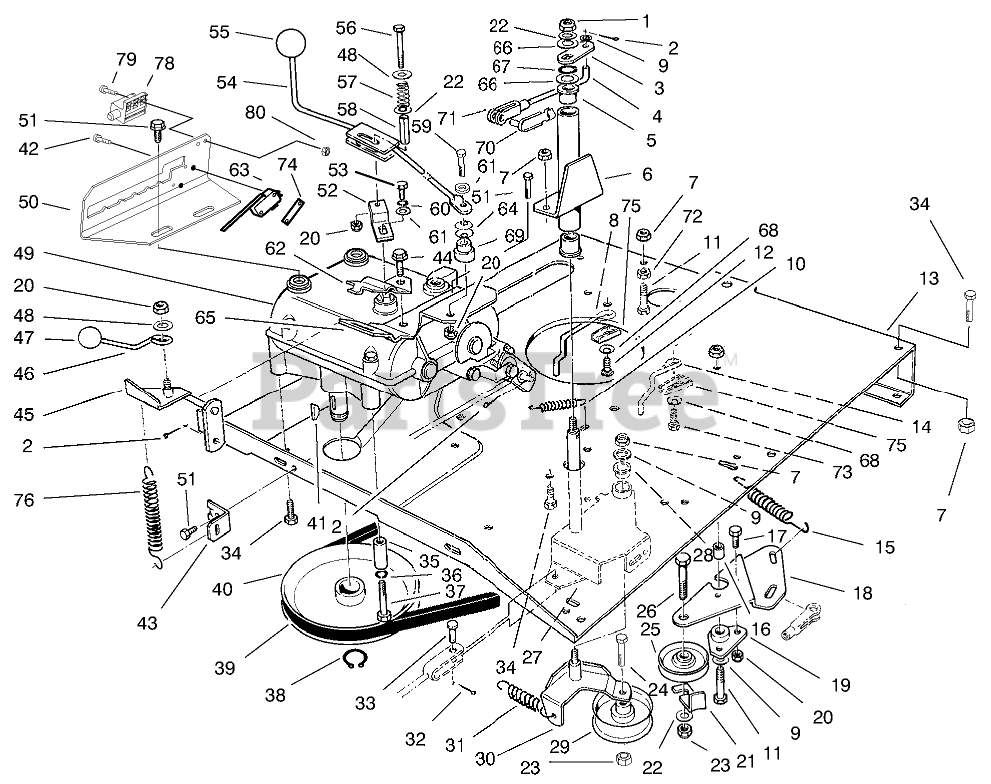

TRANSMISSION & LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 67-0690-03

BRKT-DECK ENGAGE BLK

$

$

Not available

4

Toro 68-8370

LINK-DECK ENGAGE

$

$

Not available

5

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

6

Toro 67-0540-03

Tube W.A.-Pivot (Incl. Ref. #5)

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 99-2976

GUIDE-BELT

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 26-6700

SPRING-RETURN, BRAKE

$24.99

$

Usually ships in 3-6 days

0

11

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

0

13

Toro 76-4090-01

PLATE-ENGINE

$

$

Not available

14

Toro 67-0940

GUIDE-ENG. BELT L.

$16.99

$

Usually ships in 3-6 days

0

15

Toro 68-9950

SPRING-TRACTION

$21.99

$

In Stock, only 2 left!

0

16

Toro 67-0410

SPACER-PIVOT

$11.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 67-0420-03

PLT-IDLER MTG

$

$

Not available

19

Toro 67-0400

MOUNT-TRACTION PIVOT

$20.99

$

Usually ships in 3-6 days

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

21

Toro 12-9020

RETAINER-BELT

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

23

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 67-0360

Bracket-Arm, Idler (Incl. Ref. #28)

$

$

Not available

28

Toro 256-155

BUSHING-FLANGE

$2.49

$

Usually ships in 3-6 days

0

29

Toro 56-9870

PULLEY-IDLER

$51.99

$

In Stock, only 1 left!

0

30

Toro 67-0330-03

IDLER MTG PLT WA (BLACK)

$

$

Not available

31

Toro 67-9170

SPRING-IDLER

$38.99

$

Usually ships in 3-6 days

0

32

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

33

Toro 283-67

PIN-CLEVIS

$2.99

$

In Stock, only 1 left!

0

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

35

Toro 67-0920

GUIDE-BELT

$15.99

$

Usually ships in 3-6 days

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

38

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

39

Toro 67-0900

67BELT, TRACTION DRIVE

$46.99

$

In Stock, Qty 5

0

40

Toro 82-6450

PULLEY

$104.99

$

In Stock, only 2 left!

0

41

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

42

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.99

$

Usually ships in 3-6 days

0

43

Toro 67-0750

BRKT-SPRING MT

$

$

Not available

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 67-0600-03

DECK ENGAGE LEVER WA (BLACK)

$

$

Not available

46

Toro 67-0640

ROD-ENGAGE

$

$

Not available

47

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

48

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

49

Toro 67-1400

TRANSMISSION

$

$

Not available

50

Toro 99-2970-03

GATE-SHIFT

$38.99

$

Usually ships in 3-6 days

0

51

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

52

Toro 56-7620

LEVER-SHIFT

$

$

Not available

53

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

54

Toro 76-3940-03

SHIFT LEVER WA (BLACK)

$

$

Not available

55

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

56

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

57

Toro 56-7730

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

58

Toro 56-7740

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

0

59

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

60

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

61

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Toro 67-0670

BRKT-DECK ENG UPPER

$

$

Not available

63

Toro 88-9930

SWITCH-MICRO

$41.99

$

In Stock, only 1 left!

0

64

Toro 3290-478

WASHER-BELLEVILLE

$1.99

$

Usually ships in 3-6 days

0

65

Toro 67-0660

BRKT-DECK ENG. SHIFTER

$

$

Not available

66

Toro 20-3220

WASHER

$

$

Not available

67

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 19

0

68

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

69

Toro 76-3970

SPACER-PIVOT

$

$

Not available

70

Toro 67-1530

CLEVIS PIN ASM

$

$

Not available

71

Toro 282-27

CLEVIS-ADJ

$35.99

$

Usually ships in 3-6 days

0

72

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

73

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

74

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

75

Toro 76-3820

ANCHOR-GUIDE, BELT

$2.49

$

Usually ships in 3-6 days

0

76

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

77

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

78

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

79

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

80

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0
