70122 (8-25) - Toro Rear-Engine Riding Mower (SN: 099000001 - 099999999) (1999) CUTTING UNIT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

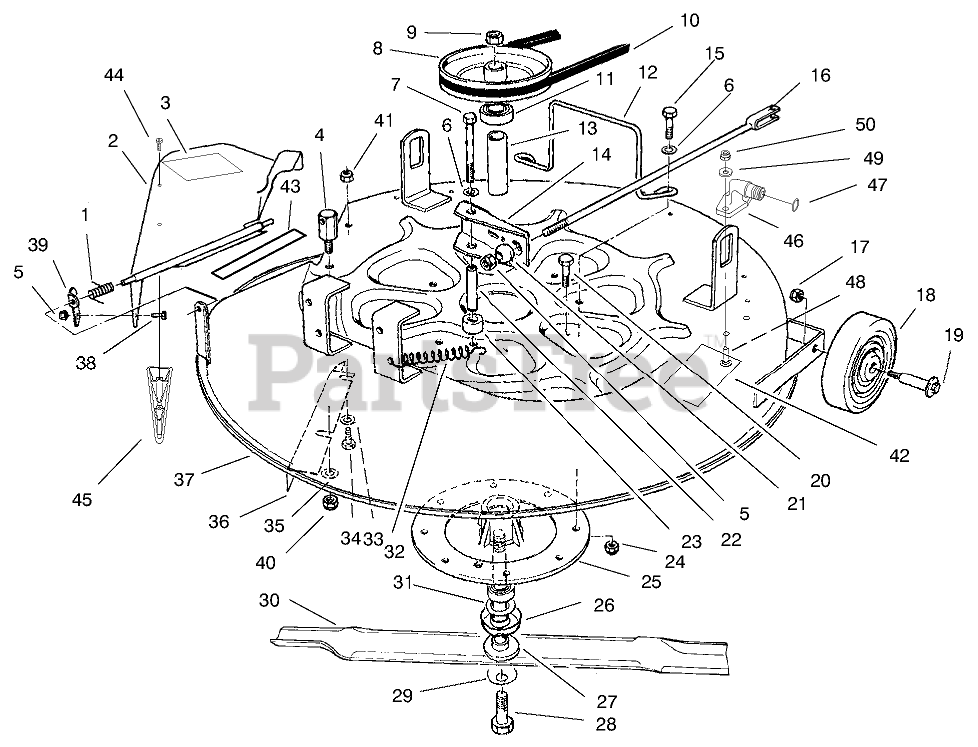

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

2

Toro 93-9492

Deflector (Incl. Ref. #3)

$

$

Not available

3

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 67-0140

POST-PIVOT

$

$

Not available

5

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

8

Toro 80-4420

PULLEY-DECK

$

$

Not available

9

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 98-0710

V-BELT

$38.99

$

In Stock, only 2 left!

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

12

Toro 80-4520

GUIDE-DECK BELT

$

$

Not available

13

Toro 62-3660

SPACER-BEARING

$28.99

$

Usually ships in 3-6 days

0

14

Toro 67-1370

DECK BRAKE ASSEMBLY

$

$

Not available

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 67-0570

DECK BRAKE ROD WA

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 61-9760

WHEEL-DECK

$50.99

$

In Stock, only 2 left!

0

19

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 67-0710

BALL-SWIVEL, STOP

$4.49

$

In Stock, only 2 left!

0

22

Toro 67-0730

POST-BRAKE MTG

$

$

Not available

23

Toro 76-3810

SPACER-DECK BRAKE

$

$

Not available

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 67-0970

CASTING-SPINDLE

$278.99

$

Usually ships in 3-6 days

0

26

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

27

Toro 80-4340

SHAFT-SPINDLE

$84.99

$

Usually ships in 3-6 days

0

28

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

29

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

30

Toro 67-0200

Blade
(Superseded to 67-0200-03)

$

$

Not available

31

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

32

Toro 67-1440

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

33

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

36

Toro 67-0130-01

BAFFLE PLATE RED

$32.99

$

Usually ships in 3-6 days

0

37

Toro 95-7485

Deck (Incl. Ref. #42 & 43)

$

$

Not available

38

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 67-1600-01

BRACKET-DEFLECTOR

$

$

Not available

40

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

42

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

43

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

44

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

46

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

47

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

48

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
