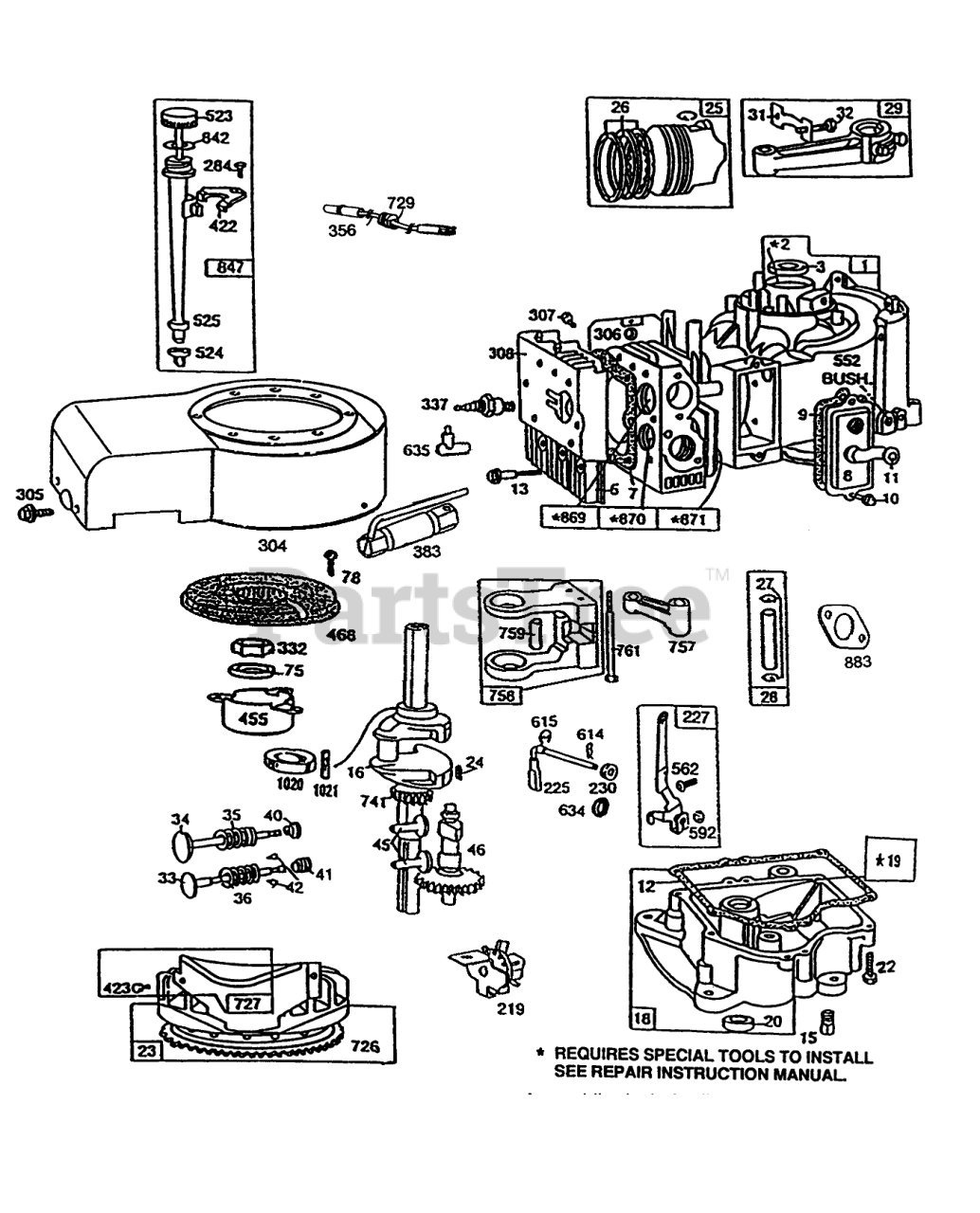

70120 (12-32) - Toro Recycler Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) BRIGGS & STRATTON MODEL NO. 257707-0124-01 Parts Diagram

Recycler Rear-Engine Riding Mower

BRIGGS & STRATTON MODEL NO. 257707-0124-01 Parts Diagram

  • Title

1

Toro 395705

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 212914

Head-Cylinder
(Superseded to 691154)

$166.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 393411

$9.49

$

In Stock, only 4 left!

0

8

Briggs & Stratton 391406

Assembly-Breather
(Superseded to 495735)

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 393411

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280100

Tube-Breather
(Superseded to 692253)

$9.99

$

In Stock, Qty 15

0

12

Briggs & Stratton 271702

Gasket-Cover 1/64"
(Superseded to 271702S)

Note: Included in Gasket Set-Part No. 393411

$10.99

$

In Stock, Qty 6

0

Briggs & Stratton 270915

Gasket-Cover .005"

Note: Included in Gasket Set-Part No. 393411

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 270916

Gasket-Cover .009"

Note: Included in Gasket Set-Part No. 393411

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93723

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 491647

Crankshaft Note: Order 94196 For Timing Gear Key.
(Superseded to 498994)

$312.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 391784

Sump Oil

$288.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 490666

Bushing-Sump

$40.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$193.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394661

Piston Assy-Std.
(Superseded to 499284)

$

$

Not available

Briggs & Stratton 394662

Piston Assy-.010" O.S.

$

$

Not available

Briggs & Stratton 394663

Piston Assy-.020" O.S.
(Superseded to 499292)

$

$

Not available

Briggs & Stratton 394664

Piston Assy-.030" O.S.
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391780

Ring Set (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

Rod-Connecting

$50.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261462

Valve-Intake
(Superseded to 690429)

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

Tappet
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 93805

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 490815

Gear-Governor
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

225

Briggs & Stratton 231058

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 94419

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 12

0

304

Briggs & Stratton 494087

Housing-Blower
(Superseded to 496440)

$80.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 224542

Shield-Cylinder
(Superseded to 690489)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93949

Screw-Sem
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 222725

Cover-Cylinder Head
(Superseded to 690491)

$11.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 393411

Gasket Set

$60.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 223394

Clamp-Oil Filler Tube
(Superseded to 690593)

$11.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Flush Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 391841

Cap-Dipstick-Oil Filler
(Superseded to 692013)

$25.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280134

Tube-Oil Filler

$28.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 231597

Nut-Hex.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

634

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

$7.99

$

In Stock, Qty 8

0

634

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

Note: Included in Carburetor Overhaul Kit-Part No. 494882.

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter

$

$

Not available

729

Briggs & Stratton 281159

Clip-Wire
(Superseded to 690596)

$

$

Not available

741

Briggs & Stratton 262135

Gear-Timing
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 391373

Counterweight
(Superseded to 692941)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 93875

Screw
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392067

Fill Group-Oil

$

$

Not available

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213316

CG7024 TWO WHEEL TR
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Manual-Owner's

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

1020

Briggs & Stratton 261242

Ecentric
(Superseded to 692891)

$32.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

Pin-Ecentric
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days
