701015 - Ariens Engine Guard Kit Engine Guard Kit Parts Diagram

Engine Guard Kit

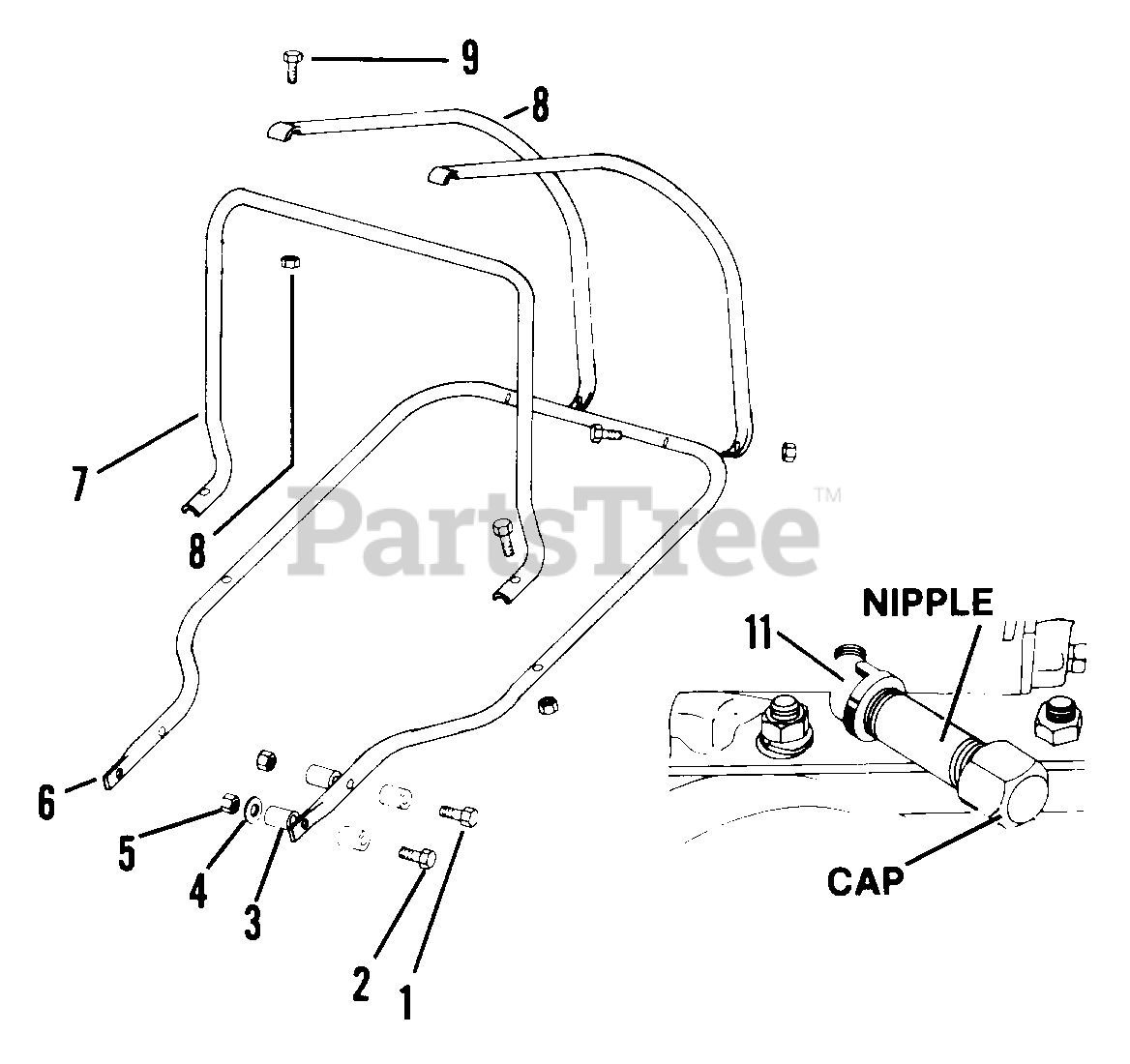

Engine Guard Kit Parts Diagram

  • Title

1

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 05903500

BLT-HEX .38-16X2.50 PL GR2
(Superseded to 05958400)

$2.49

$

In Stock, Qty 20+

0

3

Ariens 00140200

SPACER .63 X .38 X .75
(Superseded to 01525800)

$

$

Not available

4

Ariens 06406700

WSHR-FL-STL .390X.875X.18 PL
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00145100

MOUNTING TUBE

$

$

Not available

7

Ariens 00145300

UPPER TUBE

$

$

Not available

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 8

0

10

Ariens 00145200

BRACE

$

$

Not available

11

Ariens 00140500

1/2 B I 45 DEGREE STREET ELBOW

$

$

Not available

11

Ariens 00140400

1/4 B I 45 DEGREE STREET ELBOW

Note: (7 H.P.)

$

$

Not available
