701014 - Ariens Furrower Kit Furrower Kit Parts Diagram

Furrower Kit

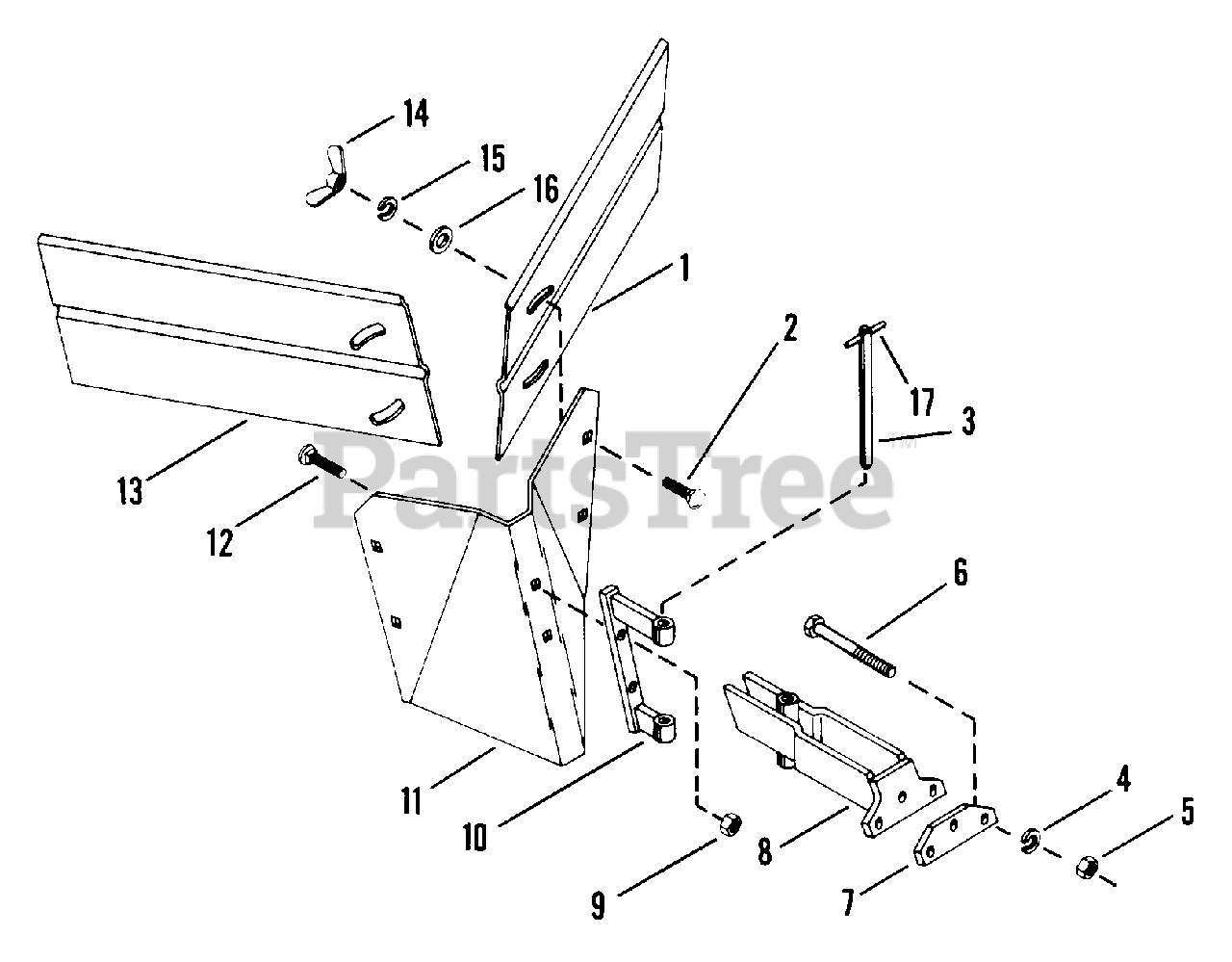

Furrower Kit Parts Diagram

  • Title

1

Ariens 00143500

WING, LEFT
(Superseded to 00143551)

$

$

Not available

2

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

3

Ariens 50103400

PIN ASSEMBLY

$

$

Not available

4

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

5

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05911900

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05967800)

$

$

Not available

7

Ariens 00143000

PLATE
(Superseded to 00143051)

$

$

Not available

8

Ariens 00142900

MOUNT WELDMENT

$

$

Not available

9

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 00143100

TIP MOUNT WELDMENT
(Superseded to 00143151)

$

$

Not available

11

Ariens 00143300

CHISEL TIP
(Superseded to 00143351)

$

$

Not available

12

Ariens 06208100

BLT-RDHDSQNK .38-16X1.25 GR5PL
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

13

Ariens 00143400

WING, RIGHT
(Superseded to 00143451)

$

$

Not available

14

Ariens 06503800

NUT-WING .312-18 YWZC

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

16

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

17

Ariens 05807000

PIN-ROLL .250X3.00

$

$

Not available
