701006 - Ariens Tine Hood Extension Kit Tine & Hood Extension Kit Parts Diagram

Tine Hood Extension Kit

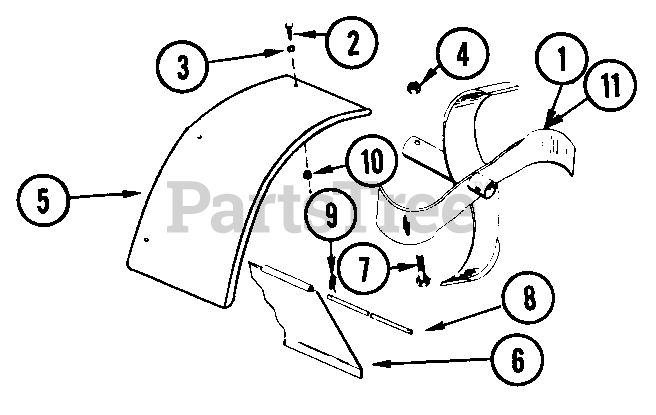

Tine & Hood Extension Kit Parts Diagram

  • Title
1

Ariens 00207600

R H TINE SPOOL
(Superseded to 00207651)

$

$

Not available

2

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

4

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00111000

SIDE EXTENSION

$

$

Not available

6

Ariens 00111100

EXTENSION TAILBOARD

$

$

Not available

7

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

8

Ariens 00111200

EXTENSION TAILBOARD PIN

$

$

Not available

9

Ariens 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, Qty 10

0

10

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

11

Ariens 00207700

L H TINE SPOOL
(Superseded to 00207751)

$

$

Not available
