701003 - Ariens Elect Starter Kit, 12 Volt Electric Starter Kit Parts Diagram

Elect Starter Kit, 12 Volt

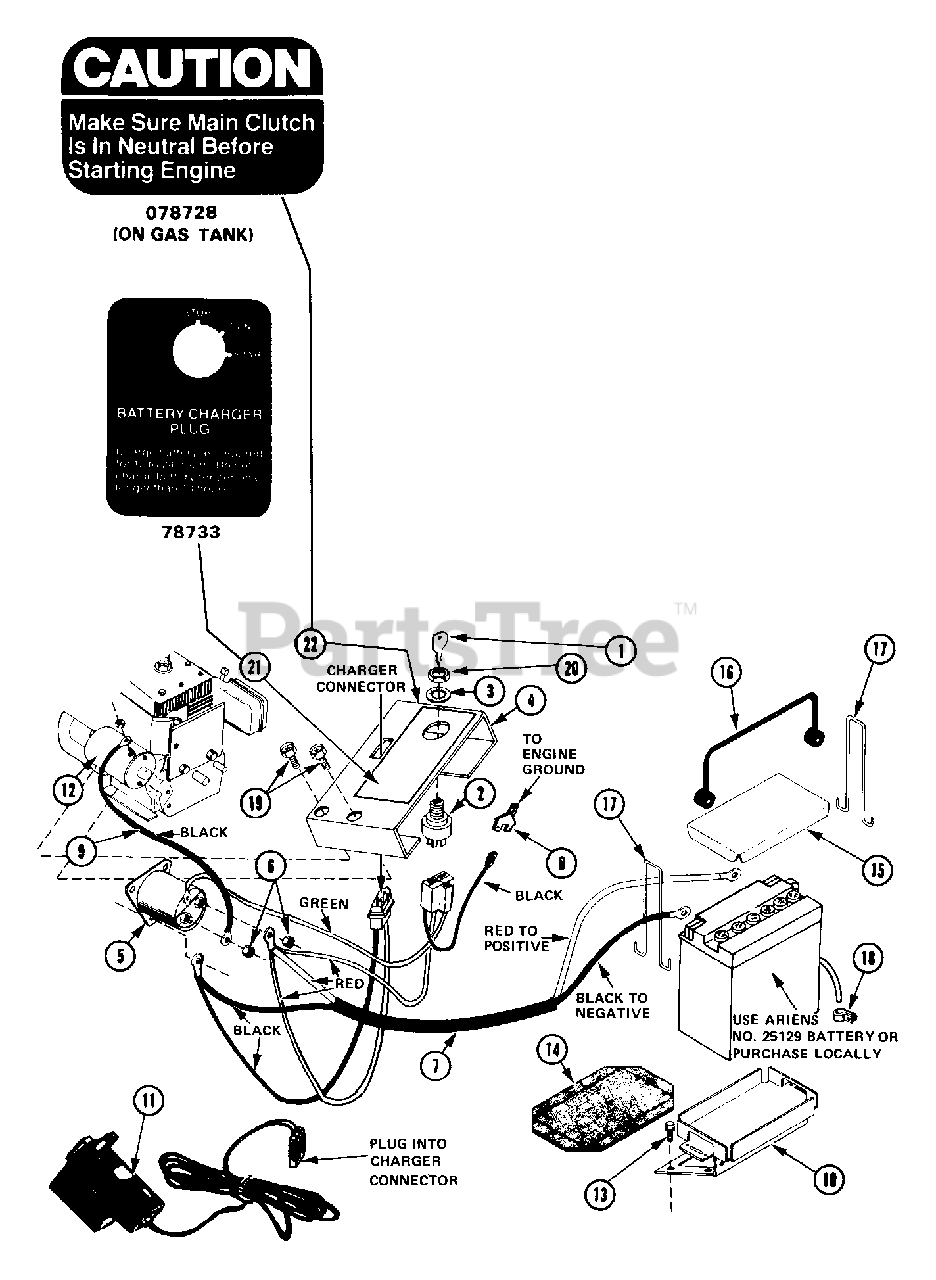

Electric Starter Kit Parts Diagram

  • Title
1

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

2

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 5

0

3

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 00118300

BRACKET ELECT START

$

$

Not available

5

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

$73.99

$

Usually ships in 4-12 days

0

6

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00118400

WIRING HARNESS

$

$

Not available

8

Ariens 00119200

ADAPTER - CONNECTOR

$

$

Not available

9

Ariens 00118500

GROUND CABLE
(Superseded to 00145900)

$13.99

$

In Stock, only 1 left!

0

10

Ariens 00116000

BATTERY TRAY

$

$

Not available

11

Ariens 00124600

BATTERY CHARGER

$

$

Not available

12

STARTER MOTOR, 12 VOLT

$

$

Not available

13

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 02530700

RUBBER PAD

$

$

Not available

15

Ariens 00115800

BATTERY COVER

$

$

Not available

16

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

17

Ariens 02515200

HOOK
(Superseded to 03640900)

$38.99

$

Usually ships in 4-12 days

0

18

$

$

Not available

19

Ariens 07004500

SCR-CAP CR SEMS .25-20X.50 PL

$

$

Not available

20

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$7.99

$

Usually ships in 4-12 days

0

21

Ariens 07873300

STARTER KIT DECAL
(Superseded to 07785500)

$

$

Not available

22

Ariens 07872800

CAUTION DECAL
(Superseded to 07785500)

$

$

Not available
