70100 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) STAND BAR ASSEMBLY Parts Diagram

Recycler Rear-Engine Riding Mower

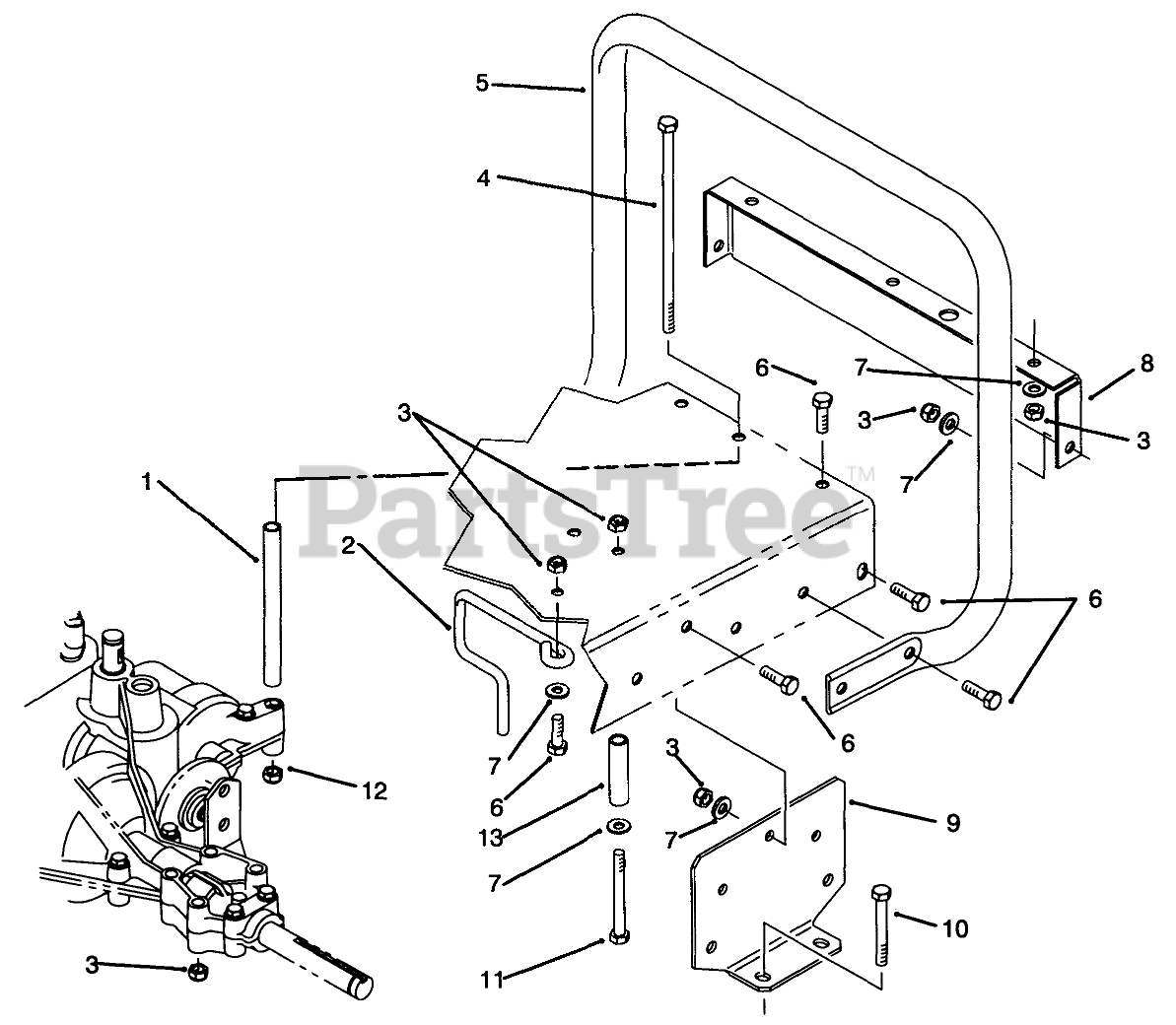

STAND BAR ASSEMBLY Parts Diagram

  • Title

1

Toro 92-0897

SPACER-TRANSAXLE SUPT

$

$

Not available

2

Toro 92-0898

GUIDE-ENG BELT

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

5

Toro 92-0864

Standbar
(Superseded to 92-0864-03)

$

$

Not available

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-0861

Frame-Rear
(Superseded to 92-0861-01)

$

$

Not available

9

Toro 92-0865

Support-Axle
(Superseded to 92-0865-01)

$

$

Not available

10

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

11

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Toro 76-1560

SPACER-SPLIT TUBE

$37.99

$

Usually ships in 3-6 days

0
