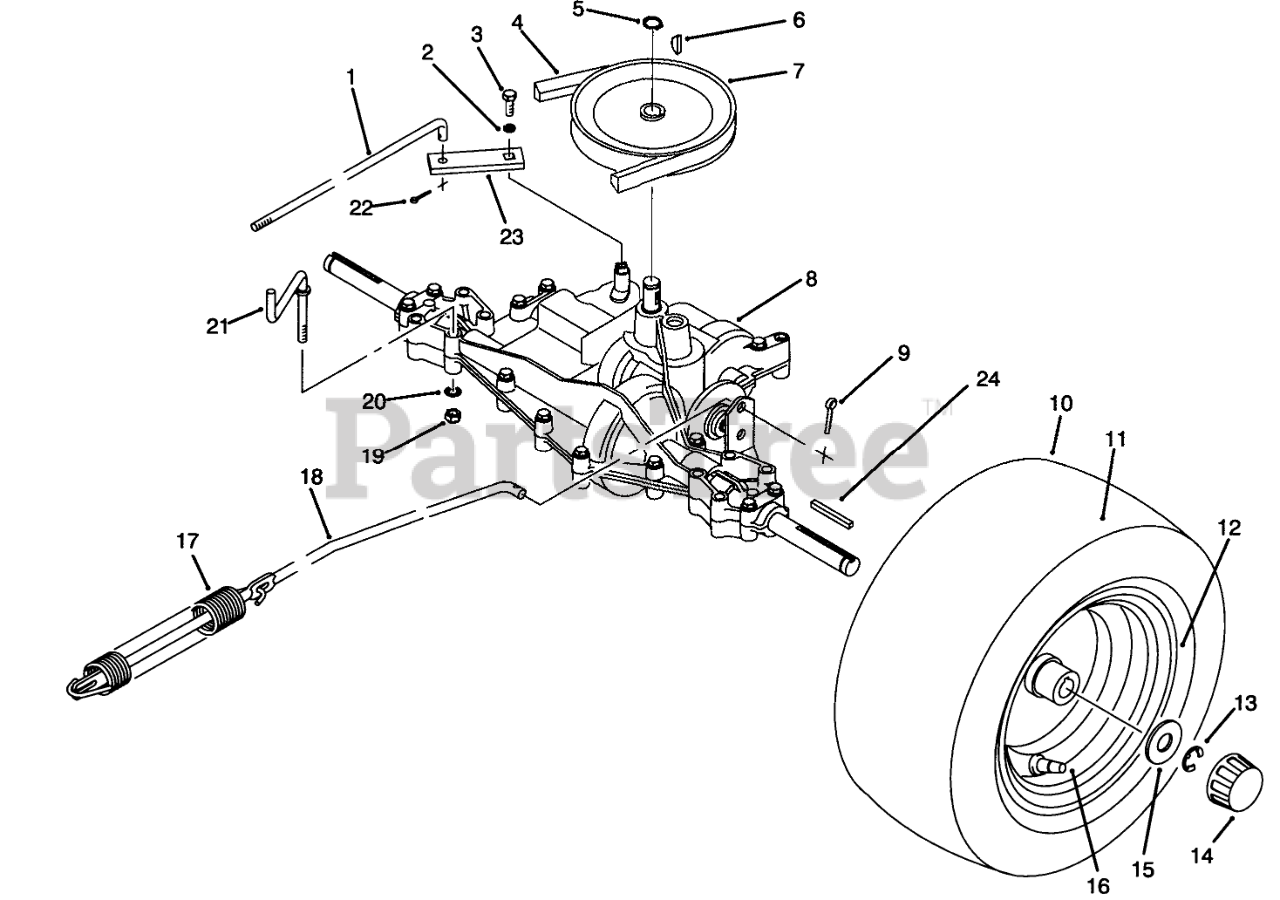

70100 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) REAR AXLE ASSEMBLY Parts Diagram

Recycler Rear-Engine Riding Mower

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-0889

LINK-SHIFT

$

$

Not available

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 92-0870

V-BELT, TRACTION

$91.99

$

In Stock, only 2 left!

0

5

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

6

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

7

Toro 92-0874

PULLEY-TRANSAXLE

$96.99

$

Usually ships in 3-6 days

0

8

Toro 92-0862

TRANSAXLE 915-019

$

$

Not available

9

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

10

Toro 231-117

TIRE

$

$

Not available

11

Toro 232-39

TUBE-INNER

$31.99

$

In Stock, only 1 left!

0

12

Toro 88-9730

REAR WHEEL ASM

$

$

Not available

13

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

14

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

15

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

16

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

17

Toro 57-9940

SPRING-EXT

$

$

Not available

18

Toro 92-0872

ROD-BRAKE

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

21

Toro 92-0899

GUIDE-LOWER BELT

$

$

Not available

22

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

23

Toro 92-0880

LINKAGE

$

$

Not available

24

Toro 7-0036

KEY-SQUARE

$

$

Not available
