70100 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) LINKAGE ASSEMBLY Parts Diagram

Recycler Rear-Engine Riding Mower

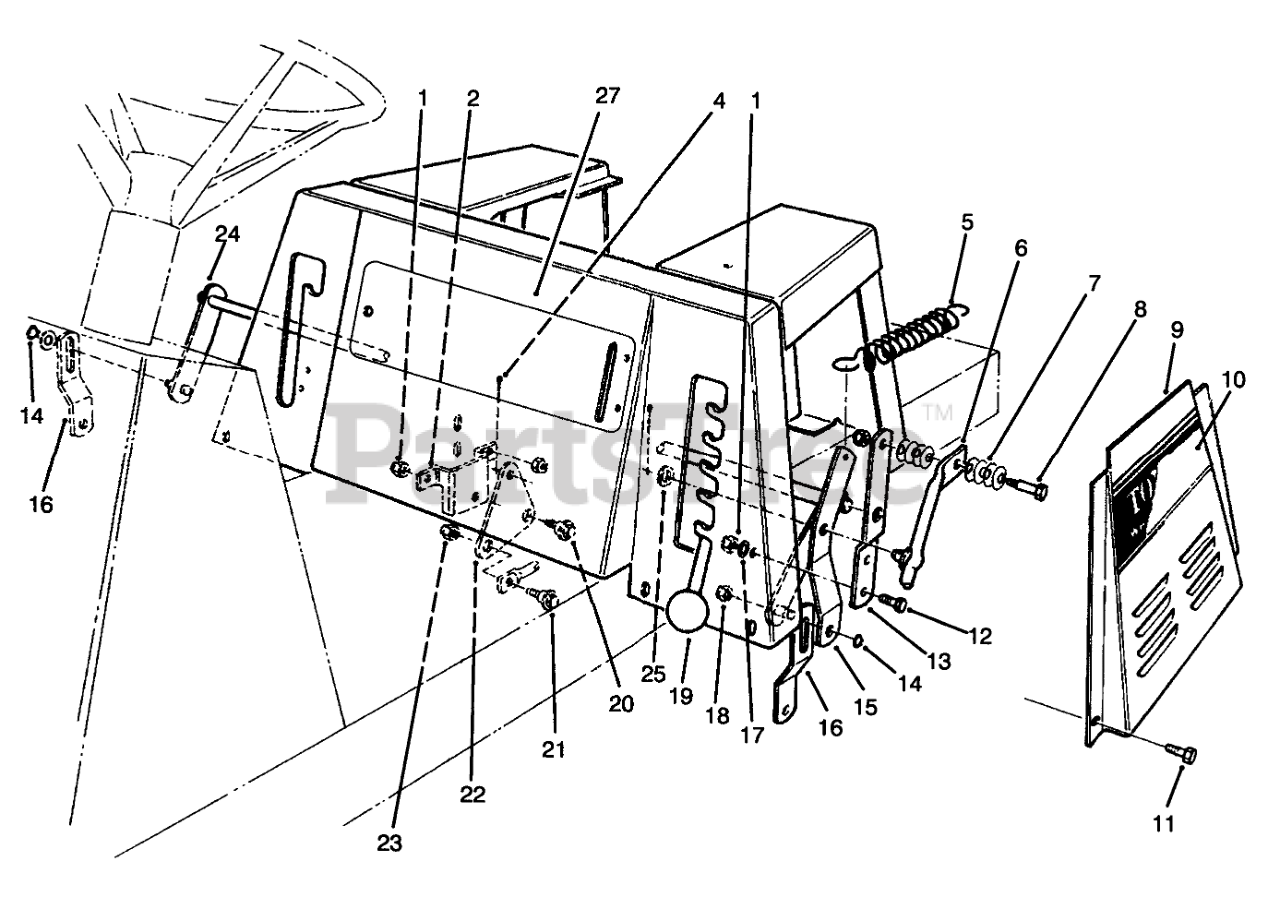

LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 80-2310

BRKT-B.CRANK MTG

$31.99

$

Usually ships in 3-6 days

0

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 62-3930

SPRING-EXTENSION

$

$

Not available

6

Toro 47-1850

HOC LEVER WA B

$

$

Not available

7

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

9

Toro 92-0878

Panel L.H.-Base, Seat
(Superseded to 92-0878-01)

$

$

Not available

10

Toro 92-7986

DECAL - TORO 1232 LH

$

$

Not available

10

Toro 92-7985

DECAL - TORO 1032 LH

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 47-1840

Bracket
(Superseded to 47-1840-01)

$

$

Not available

14

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

15

Toro 80-2321

Bracket-H.O.C., Engage

$38.99

$

Usually ships in 3-6 days

0

16

Toro 63-5830

Link-Deck Suspension
(Superseded to 63-5830-01)

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

21

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

22

Toro 80-2360

BELLCRANK

$

$

Not available

23

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

24

Toro 56-7400

Arm
(Superseded to 56-7400-03)

$

$

Not available

25

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 92-7982

DECAL - CONTROL PANEL

$

$

Not available
